2025 Explorer & Police Interceptor 4WD Module: Programming, Problems, and Part Numbers
This guide covers the essential programming requirements, known issues, and replacement costs for the 4WD Control Module in the 2025 Ford Explorer and Police Interceptor Utility.
- This part is a 4WD/Transfer Case Control Module, not a Body Control Module.
- This module absolutely requires programming to your vehicle's VIN after installation, whether it is new or used.
- When buying a used part, you must match the engineering ID number exactly (R1MA-7P238-VB).
- Always factor in the cost of professional programming when considering a used module.
Immediate Warning: Programming is Required
Warning: This is not a plug-and-play part. Whether you install a new or used 4WD Control Module, it must be programmed to your vehicle’s specific VIN and configuration. Without programming, the 4WD system will not function, and it may cause communication errors with other modules on the vehicle. This procedure typically requires a Ford dealer or a qualified independent shop with access to Ford's diagnostic software (IDS).
Symptoms of a Failing 4WD Control Module
When the 4WD Control Module fails, you'll typically notice issues with the four-wheel-drive system itself, often accompanied by warning lights.
- "Service 4WD" or Wrench Light: The most common symptom is a warning message on your instrument cluster. 🎬 Watch: Understanding 4WD fault messages and potential solutions.
- Inability to Switch 4WD Modes: The selector switch may not respond, leaving you stuck in the current mode (e.g., stuck in 2WD).
- 4WD System Unresponsive: The system may not engage or disengage the front axle, even if the indicator light changes.
- Chattering or Binding in Turns: If the module fails and incorrectly leaves 4WD engaged on dry pavement, you may feel the tires bind or hear chattering noises during tight turns.
- Diagnostic Trouble Codes (DTCs): A scan tool will likely show communication codes (U-codes) or specific powertrain codes (P-codes) related to the transfer case or its sensors.
Known Issues, Recalls & TSBs for 2025 Models
While this specific 4WD module does not have a dedicated recall as of early 2026, the 2025 Explorer platform has been subject to other significant module-related issues you should be aware of.
April 2025 Powertrain Control Module (PCM) Recall
In April 2025, Ford issued a recall for over 24,000 2025 Ford Explorers equipped with the 2.3L engine due to a software error in the Powertrain Control Module (PCM). This is a separate computer from the 4WD module. The faulty PCM software could cause the module to reset intermittently, leading to a temporary loss of acceleration or, in some cases, a complete loss of power. It could also cause damage to the transmission's parking pawl, potentially preventing the vehicle from going into Park or causing a rollaway risk. The fix is a software update performed by a Ford dealer.
Related 10-Speed Transmission TSBs
The 10R60 and 10R80 10-speed automatic transmissions used in the Explorer and Police Interceptor Utility have been the subject of numerous Technical Service Bulletins (TSBs) for harsh or delayed shifting. These issues are often caused by software calibration, sticking valves in the main control body (mechatronic unit), or internal clutch components. Symptoms like harsh clunks, delayed engagement, or erratic shifting can sometimes be mistaken for a drivetrain issue like a faulty 4WD module, but are often related to the transmission itself. A proper diagnosis is key to telling the difference.
🎬 See common 10-speed transmission issues that mimic 4WD failure.Programming: The Most Critical Step
Virtually all modern Ford drivetrain modules require programming, and this one is no exception.
- What is Programming?: Programming, also called 'flashing', involves loading the correct software and calibration files onto the module. This file tells the module about the vehicle it's in—its VIN, engine type, axle ratios, and other specific options.
- New and Used Modules: A new module from Ford comes blank and must be programmed. A used module comes from a donor vehicle with a different VIN and configuration; it must be wiped and reprogrammed for your specific vehicle.
- Who Can Program It?:
- Ford Dealers: They have the official Integrated Diagnostic System (IDS) software and are the most reliable option.
- Independent Shops: Many independent shops that specialize in Ford vehicles invest in IDS software or equivalent tools and can perform programming. However, not all shops have this capability, so you must ask specifically.
- DIY with FORScan: Advanced DIY mechanics sometimes use a tool called FORScan with a compatible OBD-II adapter to perform programming. This is a powerful tool but carries risk. Using the wrong file or having the process fail can render the module unusable. For a critical module like this, professional programming is recommended.
Buying a Used 4WD Control Module
A used OEM module can be a cost-effective alternative to a new part, provided you follow these crucial steps.
1. Verify Your Part Number
The most important step is to match the engineering ID number on your old module exactly. This number is printed on the unit's label. For this part, you are looking for R1MA-7P238-VB. Even a one-letter difference can indicate different software or hardware for another vehicle's options. Do not buy a part that is 'close'—it must be identical.
2. Physical Inspection
When you receive the used module, inspect it carefully before installation.
- Connector Pins: Look for any green or white crusty residue, which indicates corrosion from water intrusion. All pins should be straight and clean.
- Housing: Check for cracks, signs of melting, or pry marks that suggest it was removed improperly.
3. Factor in Programming Costs
Pro Tip: Before buying a used module, call your local Ford dealer or a trusted independent shop and get a quote for programming a customer-supplied used module. Some shops may charge more for this service or refuse to do it. Factoring this cost into your budget is essential to understanding the total repair cost.
Replacement Cost Comparison
Prices can vary by location and supplier, but here is a general estimate of what you can expect to pay:
| Part Type | Estimated Cost |
|---|---|
| New OEM | $350 - $500 |
| Used OEM | $100 - $250 |
| Shop Labor (Install & Program) | $150 - $300 |
Frequently Asked Questions (FAQ)
Do I have to get this module programmed by a dealer?
While a Ford dealer is the most certain option, many well-equipped independent repair shops have the necessary Ford IDS software to program it. You must call ahead to confirm they can program a customer-supplied module. A DIY approach with FORScan is possible for experts but is not recommended for beginners.
Can I install the module myself and drive it to the shop for programming?

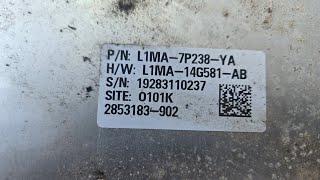

Yes. The physical installation is typically straightforward 🎬 Watch this video to locate your TCCM and powertrain modules. (locating the module, swapping connectors). The vehicle will be drivable after the swap, but the 4WD system will be inoperative and you will have warning lights on the dash until it is professionally programmed.
What's the difference between a 4WD Control Module and a Transmission Control Module (TCM)?
The 4WD Control Module (or TCCM) specifically controls the transfer case for engaging and disengaging four-wheel drive. The Transmission Control Module (TCM) is the brain for the automatic transmission itself, controlling all gear shifts, fluid pressure, and torque converter lockup. While they work together, they are separate components with distinct functions.
Will a used module from the exact same year and model Explorer work without programming?
No. The module is coded to the original vehicle's VIN. When installed in your vehicle, it will detect a VIN mismatch and will not operate correctly until it is reprogrammed to match your Explorer or Police Interceptor Utility.
Helpful Videos
Technical Specifications
OEM Part Numbers: R1MA-7P238-VB R1MA7P238VB R1MZ-7P238-D R1MZ7P238D
Controls electronic transfer case clutch for 4x4/AWD operation. Requires programming with Ford IDS software.
