1999-2001 Ford Taurus & Mercury Sable GEM Module: Solving Electrical Chaos Caused by Water Leaks
This in-depth guide explains why a leaking windshield is the number one killer of the General Electronic Module (GEM) in your Ford Taurus or Mercury Sable, and what you need to know before buying a replacement.
- The #1 cause of failure is water leaking from the windshield seal, which drips onto the GEM and causes corrosion. You must fix the leak before replacing the part.
- This specific module is for vehicles WITHOUT remote keyless entry. Using the wrong module will cause features to not work.
- A replacement module (new or used) will almost always require programming by a dealer or qualified shop to match your car's specific options.
- Symptoms are typically bizarre and wide-ranging electrical issues, such as faulty wipers, windows that won't work, and a battery that dies overnight.
The #1 Problem: Windshield Leaks and Water Damage
The single most common cause of failure for the GEM in the 1999-2001 Ford Taurus and Mercury Sable is water intrusion. A deteriorated or poorly sealed windshield allows rainwater to seep into the cabin. Due to its location under the driver's side dashboard, the GEM and fuse box assembly is directly in the path of this dripping water. Over time, this moisture corrodes the circuit boards, pins, and connectors, leading to short circuits and a wide array of bizarre electrical problems.
This issue was so prevalent that Ford issued Special Service Messages (SSMs) to its dealerships, acknowledging that water leaks could cause various electrical conditions and instructing technicians to inspect for water contamination and reseal the windshield when replacing the module.

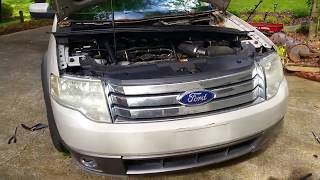

Pro Tip: Before replacing a faulty GEM, you MUST identify and fix the water leak. If you install a new or used module without resealing the windshield, the replacement part will eventually fail for the same reason. Inspect the cowl drains at the base of the windshield for clogs 🎬 Watch: How to clear drains and stop water leaks from leaves and debris as well.
Symptoms of a Failing GEM Module
Because the GEM controls so many different functions, symptoms of failure are often widespread, intermittent, and seem unrelated. You may experience one or several of the following issues:
- Erratic Wipers: Windshield wipers may not turn on, may stop in the middle of the windshield, or may turn on by themselves and not shut off.
- Power Window and Lock Malfunctions: Windows may refuse to go up or down, or power locks may cycle randomly.
- Battery Drain: The radio or HVAC blower motor may stay on after the key is removed from the ignition, causing the battery to die overnight.
- Interior Lighting Problems: The dome light may stay on continuously or not work at all.
- Warning Chimes and Lights: You may hear random clicking or relay chattering from the dash, or see the ABS and brake warning lights illuminate for no reason.
- No Communication: In severe cases, the module may stop communicating entirely, and a mechanic's scan tool will not be able to connect to it.
Associated OBD-II Trouble Codes
A failing GEM can trigger a variety of Diagnostic Trouble Codes (DTCs). These are often "B" (Body) or "P" (Powertrain) codes. While a generic code reader may not be able to read them, a more advanced scanner might find codes such as:
- B1359: Ignition Run/Acc Circuit Failure
- B2477: Module Configuration Failure
- P18xx codes: Codes in this range can sometimes be linked to GEM-controlled functions.
Programming, Compatibility, and Replacement
Warning: This specific GEM module, with part numbers like XF1Z-14B205-AA, is for 1999-2001 Ford Taurus and Mercury Sable models WITHOUT factory remote keyless entry. Installing it in a vehicle with keyless entry will result in function loss.
Does a Replacement GEM Need to Be Programmed?
Yes, in most cases, programming is required. The GEM is configured to the specific options your car was built with (power windows, drivetrain, etc.).
- New OEM Modules: A brand new module from a dealer will need to be programmed to your vehicle's VIN using their diagnostic tools. They will download the original "as-built" data to configure the module correctly. 🎬 Learn more about the Ford programmable module installation process
- Used Modules: A used module will only be a direct plug-and-play replacement if it comes from a donor vehicle with the exact same options as your car. Because finding an identical match is difficult, you should assume that any used GEM will need to be taken to a dealer or a well-equipped independent shop for reprogramming.
Replacement Steps Overview
Replacing the GEM involves removing the fuse box assembly it's attached to. While not overly complex, it is in an awkward location. The general process is as follows:
- Disconnect the battery. This is a critical first step to prevent electrical shorts.
- Remove the lower dash panel (knee bolster) below the steering column.
- Unbolt the fuse box/GEM assembly from its mounting bracket.

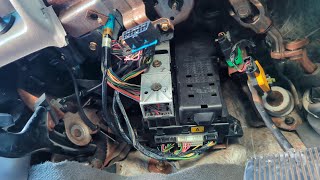

- Carefully disconnect the multiple large electrical connectors from the back and sides of the module. These have locking tabs that must be released. 🎬 See this walkthrough for removing the module and fuse box
- Separate the old GEM from the fuse box if you are only replacing the module itself.
- Install the replacement module, reconnect all connectors, bolt it back into place, and reassemble the dash.
- Reconnect the battery and test all functions. Arrange for programming if necessary.
Buying a Used Body Control Module
A used OEM module is a cost-effective and reliable option, provided you take the right precautions.
- Inspect for Corrosion: This is the most important step. Carefully examine the module's casing and all electrical pins. Look for any signs of white or green powder, rust, or water stains. If you see any evidence of moisture, do not buy the part.
- Match Part Numbers: Verify that the OEM part number on the used module (e.g., XF1T-14B205-AB, XF1Z-14B205-AA) matches your original part.
- Verify Vehicle Options: As mentioned, this module is for non-keyless entry vehicles. Confirm this with the seller. If possible, get the VIN of the donor car to check its original equipment list.
- Why Used OEM is a Good Choice: For an electronic part like this, a high-quality, water-free used OEM unit that has been tested is often superior to a new, unproven aftermarket part. It was built to Ford's original standards and, once programmed, will integrate seamlessly with your vehicle's systems.
Cost of Replacement
Prices can vary by location and supplier, but here is a general estimate of what to expect.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Module | $300 - $600+ |
| Used OEM Module | $50 - $150 |
| Remanufactured / Repair Service | $145 - $250 |
| Shop Labor (Installation) | $100 - $200 |
| Dealer Programming | $125 - $200 |
Frequently Asked Questions (FAQ)
Can I just dry out my old GEM module if it gets wet?
Sometimes, if the exposure is minor and recent, you can remove the module, open it, and clean the circuit board with electronic contact cleaner to remove moisture and light corrosion. However, once significant corrosion has set in and damaged the electronic components or circuit traces, the module is usually beyond repair and must be replaced.
Is the car safe to drive with a failing GEM?
It is not recommended. While the car may still run and drive, a faulty GEM can cause critical systems like the windshield wipers to fail without warning, which is extremely dangerous in rain or snow. It can also cause a parasitic battery drain that leaves you stranded.
Will a GEM from a Taurus work in a Sable?
Yes, as long as the model year (1999-2001) and vehicle options (especially no remote keyless entry) match, the modules are interchangeable between the Ford Taurus and Mercury Sable. Always match the part number to be certain.
What is the difference between the GEM and the PCM?
The GEM (General Electronic Module) controls body functions and accessories like wipers, windows, and lights. The PCM (Powertrain Control Module) is the engine computer; it controls the engine's operation, fuel delivery, and transmission shifting. They are two separate computers with different responsibilities.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1F1T-14B205 XF1T14B205AB XF1TAB XF1Z14B205AA
Integrates with the Central Junction Box (interior fuse panel). Controls body accessories. This specific version is for models without remote keyless entry.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
