2003-2004 Honda Pilot VTM-4 Control Module: Solving AWD Faults and Replacement Guide
This guide covers the diagnosis, replacement, and potential programming needs for the VTM-4 (Variable Torque Management) control module in the first-generation Honda Pilot.
- This module (48310-PVH-003/013) controls the VTM-4/AWD system, NOT body functions like windows or locks.
- The primary symptom of failure is an illuminated 'VTM-4' warning light on the dashboard.
- Replacement will likely require programming by a Honda dealer or a specialized shop to work correctly.
- The module is located in the rear driver's side cargo area, not under the dashboard.
- Check for major vehicle recalls (ignition switch, headlight wiring) that can cause electrical issues before blaming this module.
Understanding the VTM-4 Module vs. the Body Control Module (BCM)

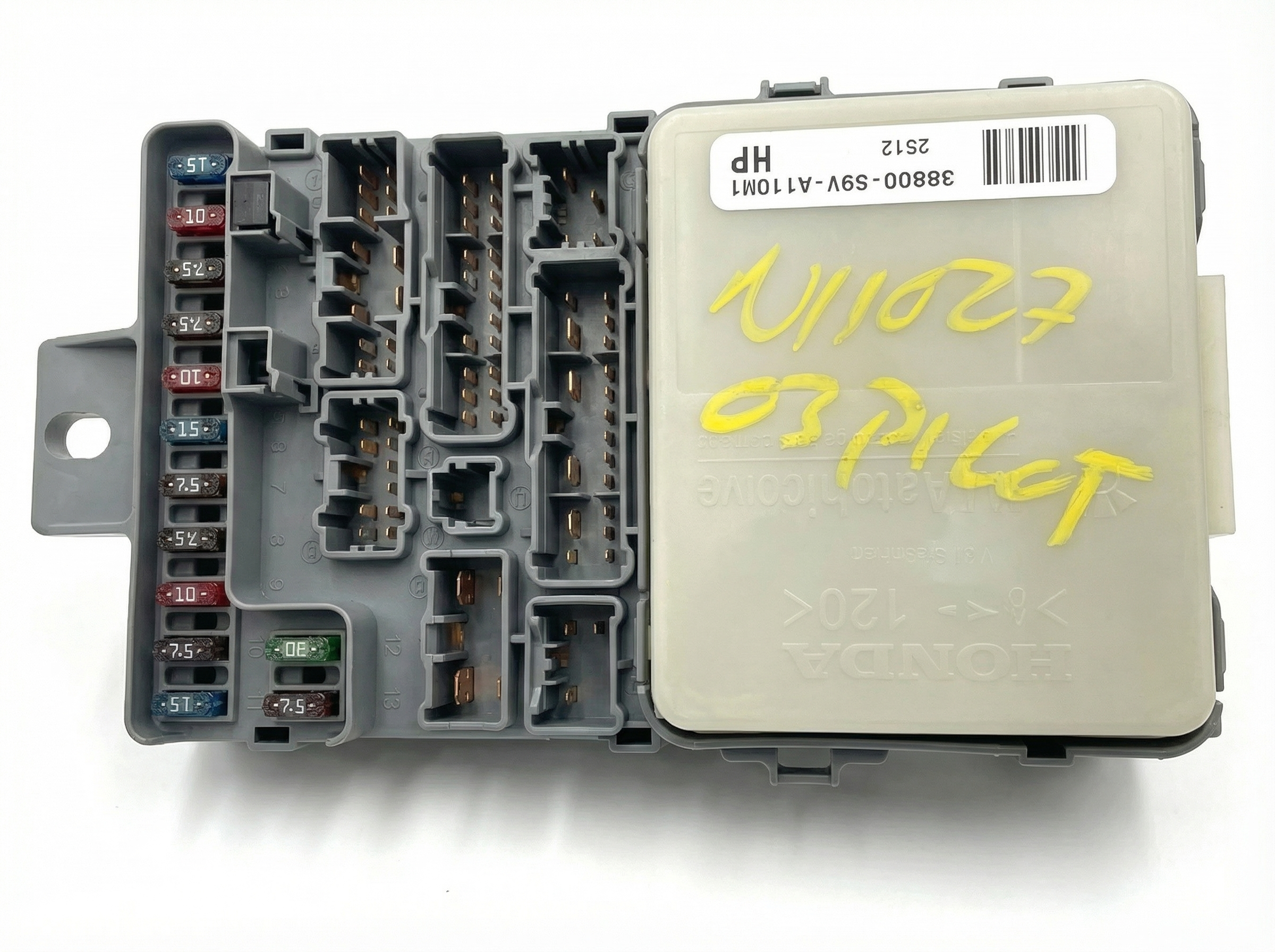

It is critical to understand that the part discussed in this article, the VTM-4 Control Module (part numbers 48310-PVH-003 and 48310-PVH-013), is responsible for the all-wheel-drive and traction control systems. It is often confused with the main Body Control Module (BCM), also known as the Multiplex Control Unit, which manages general electrical accessories like power windows, door locks, and interior lighting. If you are experiencing issues with windows or locks, you likely need a different part, not the VTM-4 module.
Symptoms of a Failing 2003-2004 Honda Pilot VTM-4 Module
The most common and direct symptom of a failing VTM-4 module is the illumination of the 'VTM-4' warning light on your instrument cluster. This indicates a fault within the all-wheel-drive system.
- VTM-4 Warning Light: A persistent VTM-4 light on the dash is the primary indicator of a problem with the module or the system it controls.

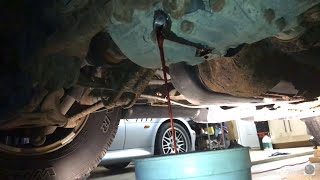

- All-Wheel Drive Disabled: The vehicle will revert to front-wheel-drive (FWD) only. You may notice a lack of traction from the rear wheels 🎬 Learn how to change differential fluid to maintain your AWD system in slippery conditions like snow, ice, or heavy rain.
- Associated Warning Lights: In some cases, a fault in the VTM-4 system may also trigger the general Malfunction Indicator Lamp (Check Engine Light) or ABS light if the systems cannot communicate correctly. 🎬 Watch: Troubleshooting ABS and VSA warning lights on your Pilot
Pro Tip: Before condemning the VTM-4 module, ensure your battery and alternator are in good health. Low voltage can cause various electronic modules in the Pilot to behave erratically and throw false error codes.
Known Issues, Recalls, and TSBs for 2003-2004 Honda Pilot
While no recalls or Technical Service Bulletins (TSBs) point directly to a high failure rate of the VTM-4 module itself, several major recalls for the 2003-2004 Pilot involve electrical issues that can be misdiagnosed.
Ignition Switch Interlock Recall (NHTSA Recall #12V573000)
A significant recall was issued because the ignition switch interlock could wear out. This could allow the key to be removed from the ignition when the transmission is not in Park, creating a rollaway risk. A faulty ignition switch can also cause a variety of strange electrical behaviors that might be mistaken for a control module failure.
Low-Beam Headlight Failure Recall (NHTSA Recall #12V136000)
The wiring harness for the headlight combination switch was found to be under tension, which could lead to overheating and a sudden loss of both low-beam headlights. While unrelated to the VTM-4 system, this highlights the potential for electrical wiring issues in this vehicle generation.
Programming and Immobilizer Requirements
Warning: While not definitively documented for this specific VTM-4 module, replacing major control units on Honda vehicles of this era often requires programming to ensure they communicate correctly with the vehicle's other electronic systems, like the main Engine Control Module (ECM).
It is unlikely that a used VTM-4 module will be a simple 'plug-and-play' installation. You should expect that the replacement module will need to be programmed or initialized to your vehicle by a Honda dealership or a well-equipped independent auto repair shop with a Honda-specific diagnostic tool (like the HIM tool). Attempting to install a used module without proper programming may result in the VTM-4 system remaining inoperative.
Buying a Used 2003-2004 Pilot VTM-4 Module
Since new OEM modules are becoming discontinued, a quality used OEM part is an excellent value. Here’s what to look for:
- Match Part Numbers Exactly: Your replacement module must have the exact same part number as the original. The primary numbers are 48310-PVH-003 or the superseding number 48310-PVH-013. Do not use a module from a different vehicle like an Acura MDX, even if it looks similar.
- Inspect for Damage: Check the module's casing for any cracks, and look closely at the connector pins to ensure they are straight and free of corrosion.
- Source from a Reputable Seller: Purchase from a recycled parts seller that offers a warranty and has good reviews. This provides protection in case the part is faulty.
- Understand the Core Charge: Some sellers may include a core charge, which is a refundable deposit you get back after sending them your old, failed module.
Replacement Location and Procedure
The VTM-4 control module is located in the rear of the vehicle, behind the interior trim panel on the driver's side (LH) of the cargo area. It is NOT located under the dashboard. Replacement involves:
- Disconnecting the vehicle's battery.
- Carefully removing the rear driver's side interior cargo trim panels to gain access.
- Unplugging the electrical connectors from the old module.
- Unbolting the module from its mounting bracket.
- Installing the new module and reconnecting everything in reverse order. 🎬 See this walkthrough for accessing and replacing the VTM-4 module
Due to the need to remove interior trim and the potential for programming, this job may be best left to a professional unless you are an experienced DIY mechanic.
Cost Comparison for VTM-4 Module Replacement
| Part Type | Estimated Cost |
|---|---|
| New OEM (Discontinued) | ~$640 - $930 (if found) |
| Used OEM | $50 - $125 |
| Remanufactured | $150 - $300 (when available) |
| Shop Labor (Replacement & Programming) | $150 - $300 |
Frequently Asked Questions (FAQ)
Where is the VTM-4 module located on a 2003-2004 Honda Pilot?
The VTM-4 control module is located behind the interior trim in the rear driver's side (LH) quarter panel of the cargo area. It is not under the dash.
Does a used VTM-4 module need to be programmed?
It is highly likely. While not guaranteed, you should always assume that a replacement control module on a Honda of this generation will require programming by a dealer or qualified shop to function correctly with your vehicle.
Can I drive my Pilot with a bad VTM-4 module?
Yes, but with limitations. The vehicle will be safe to drive, but it will operate only in front-wheel drive (FWD). You will not have the benefit of all-wheel drive in slippery conditions, so exercise additional caution in rain, snow, or on unpaved roads.
My power locks and windows are acting weird. Is this the VTM-4 module?
No. Issues with power locks, windows, interior lights, and other body accessories are typically controlled by the Multiplex Control Unit (often integrated with the under-dash fuse box), not the VTM-4 module.
Helpful Videos
Technical Specifications
OEM Part Numbers: 48310-PVH-003 48310-PVH-013
Controls the Variable Torque Management (VTM-4) all-wheel-drive system.
We Have This Part in Stock
