2014-2015 Kia Cadenza Body Control Module: A Guide to Programming, Symptoms & Replacement

Symptoms of a Failing 2014-2015 Cadenza BCM

A faulty Body Control Module can create a variety of strange electrical issues. Because the BCM controls so many different systems, you may notice several of these symptoms at once. 🎬 Watch: Learn more about common BCM failure symptoms Be aware that some of these issues, like flickering lights, can also be caused by simpler problems like a bad battery ground connection.

• Erratic Electrical Functions: This is the most common sign. You may experience power windows that don't work, door locks that cycle on their own, interior or exterior lights that flicker or won't turn on/off, or windshield wipers that activate randomly.
• Parasitic Battery Drain: If your battery repeatedly dies overnight for no apparent reason, the BCM may be failing to shut down properly, keeping other modules active and draining power.

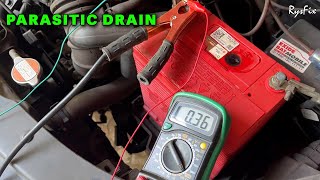

🎬 Watch: How to perform a parasitic battery drain test
• No-Start Condition: The BCM is directly linked to the car's anti-theft immobilizer system. If it fails, it may not recognize your key, preventing the engine from cranking or starting, even with a good battery. You may see the security light on the dashboard remain lit.
• Dashboard Warning Lights: A failing BCM can send bad data across the vehicle's network, causing multiple, unrelated warning lights (like ABS, Airbag, or Traction Control) to illuminate simultaneously, often described as a 'Christmas tree' effect.
• Communication Fault Codes: A professional scan tool may find 'U' codes, which indicate a communication problem between different computer modules. A code such as U0140: Lost Communication With Body Control Module is a strong indicator of a BCM issue.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of mid-2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Kia that directly address a common failure of the Body Control Module in the 2014-2015 Cadenza.

However, the 2014 Cadenza has been subject to other important recalls:

• NHTSA Recall 14V332000 (Kia SC107): Affects certain 2014 models equipped with 19-inch non-chrome aluminum wheels, which could fracture after hitting a large pothole.
• NHTSA Recall 23V652000: Pertains to the Hydraulic Electronic Control Unit (HECU), which could experience an electrical short and cause an engine compartment fire, even while parked. This is part of the brake system, not the BCM.
• NHTSA Recall 22V124000: The front windshield may not have been properly bonded on some 2014-2016 models, potentially allowing it to detach.

Programming and Installation: A Dealer or Locksmith is Required

This is the single most important fact to understand: a replacement Body Control Module must be professionally programmed to your vehicle after installation. It is not a plug-and-play part.

The BCM is a security component that is electronically tied to your car's VIN and the immobilizer system, which recognizes your key fobs. Installing a new or used BCM without programming it will result in a no-start condition and non-functional electronics.

• Who can program it? A Kia dealership is the most reliable option, as they have the factory-specific diagnostic tools (KDS) and software. Many professional automotive locksmiths and some high-end independent repair shops also have advanced scan tools that can perform BCM programming for Kia vehicles. Always call ahead to confirm they have this capability for your specific model before booking the service.
• Can I install it myself? A skilled DIY mechanic can physically swap the module, which is typically located under the driver's side of the dashboard. 🎬 Watch: See a typical Kia BCM location and removal However, the vehicle will be undriveable until it is towed to a shop for the final programming step. For this reason, it is often more practical to have a qualified shop handle the entire job.

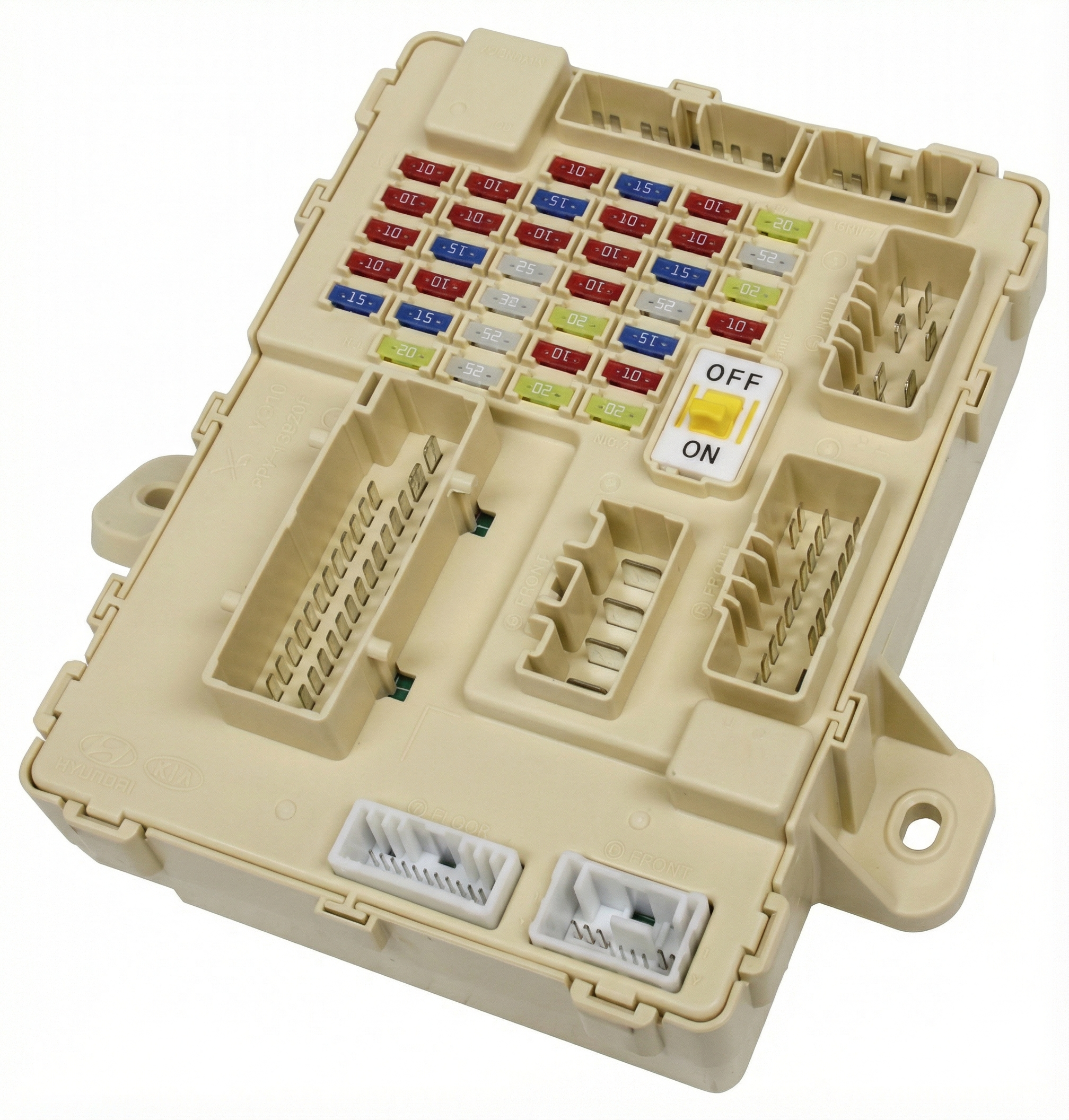

Buying a Used Body Control Module

A used OEM BCM is an excellent, cost-effective alternative to a brand-new unit. Because these modules are complex, a recycled original part is often more reliable than a new, unproven aftermarket version. Here’s what to look for:

1. Match the Part Number Exactly: This is the most critical step. You must remove your original BCM and match the OEM part number printed on its label exactly. Do not rely on vehicle compatibility lists alone. There can be confusion in online parts catalogs between the Body Control Module and the Air Bag Control Module. For example, part numbers like 95910-3R100 and 95910-3R120 are often listed as "Diagnostic Module" or "Air Bag Control Module," while part number 95410-3R160 is listed as a "Body Control Module." The only way to be certain is to match the number on your specific, original part.
2. Inspect for Damage: Never buy a used module with any signs of physical damage, corrosion on the connector pins, or evidence of water intrusion. Water damage is a common cause of electronic module failure.
3. Factor in Programming Costs: Remember that the price of the used part is not the total cost. You must budget for the professional programming service, which can cost several hundred dollars.

Cost Breakdown

Prices can vary based on your location and the chosen repair shop. The following is an estimate of what you can expect to pay.

Frequently Asked Questions (FAQ)
