2010-2012 Lexus HS250h Park Assist ECU: Diagnosing Sensor Faults and Replacement

Symptoms of a Failing Park Assist ECU

When the Clearance Warning ECU or a related part of the system fails, you will typically notice very clear symptoms inside the vehicle. The problem rarely comes and goes; it usually stays until it's fixed.

• "Check Parking Assist System" Message: The most common symptom is a warning message appearing on the instrument cluster or navigation screen.
• Flashing Park Assist Light: The light on the park assist on/off button may flash, indicating a system fault.
• System Inoperative: The system will not produce any beeps or warnings as you approach an object while parking.
• Constant Beeping: In some cases, a faulty sensor or ECU can cause the system to beep continuously as soon as it's active.

Common Diagnostic Trouble Codes (DTCs)

A professional scan tool that can read Body (B) or Chassis (C) codes is necessary to diagnose this system properly. Standard OBD-II engine code readers will not see these codes. The codes are very specific and can help you determine if the problem is a sensor, the wiring, or the ECU itself.

Diagnosing the Problem: ECU, Sensor, or Wiring?

A non-functional park assist system isn't always caused by a bad ECU. The sensors and wiring are exposed to the elements and are common points of failure. Follow these steps to narrow down the culprit.

1. Scan for Codes: The first step is always to read the specific trouble codes. This will point you in the right direction.
2. Isolate a Single Sensor Fault: If you have a code for a single sensor (like C1AE9), the problem is likely that specific sensor or its wiring. A helpful diagnostic trick is to swap the suspect sensor with a known good one from a different position on the bumper. The sensors are often interchangeable. Clear the codes and see if the fault code moves to the new position. If it does, you have a bad sensor. 🎬 See this walkthrough on how to replace a bumper sensor If the code stays in the original position, you likely have a wiring problem.
3. Check for Communication Faults: If you have a communication code (C1AEC or C1AED) or if your scan tool reports "Lost Communication with Vehicle" when trying to access the module, the ECU itself is the most likely cause. Before replacing the ECU, it's wise to inspect the main wiring harness connection at the module for any corrosion or damage.

Buying a Used Body Control Module

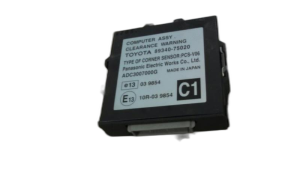

Since new aftermarket or remanufactured units for this specific part are generally not available, a used OEM module is the most practical and cost-effective solution. Here’s what you need to know to get the right part.

• Match the Part Number Exactly: The most critical step is to match the OEM part number on your original module. For the 2010-2012 HS250h, the primary part number is 86792-75030. Using a module with a different part number may result in incompatibility.
• Programming is Not Usually Required: Unlike the main engine or body computers, this specific Clearance Warning ECU generally does not require programming or flashing when you install a used one with the exact same part number. It is considered a direct replacement. In some cases, a sensor initialization or calibration may be needed using a compatible scan tool if communication codes appear after installation, but this is not a dealer-exclusive procedure.
• Physical Inspection: When you receive your used module, inspect the case for any signs of damage or being opened. Most importantly, check the connector pins to ensure they are straight, clean, and free of any corrosion or water damage.
• Why Used OEM is a Good Choice: For a specialized control module like this, a used OEM part is often superior to a non-existent or unproven aftermarket alternative. It was designed by Lexus for your specific vehicle, ensuring proper function of the parking assist system without the compatibility headaches that can come with aftermarket electronics.

Known Issues, Recalls, and Service Bulletins

While the 2010-2012 Lexus HS250h has been subject to several recalls and customer support programs, none of them apply to the Clearance Warning ECU (86792-75030).

For owner awareness, here are the major campaigns for this vehicle:

• Safety Recall for Hybrid Transaxle: A manufacturing issue could cause the hybrid system to shut down while driving. The remedy was to replace the entire transaxle assembly.
• Safety Recall for ABS Software: Improper programming of the ABS ECU could cause an inconsistent brake feel on slick surfaces. The fix was a software update performed by the dealer.
• Customer Support Program for Brake Booster: Lexus extended the warranty coverage for the brake booster and brake booster pump assemblies due to potential internal malfunctions.
• Warranty Extension for Oil Consumption: Some vehicles with the 2AZ engine experienced excessive oil consumption, and Lexus extended the warranty to cover repairs.

Cost of Replacement

Replacing the Clearance Warning ECU involves parts and labor costs. The module itself is located behind the glove box, making it a relatively easy part to access for a professional technician.
