2004-2006 Lexus LS430 Network Gateway ECU: Solving Widespread Electrical Gremlins

Understanding the LS430's Electronic Brains: Gateway ECU vs. Body ECU

It's a common point of confusion for owners and even some technicians. The Lexus LS430's electrical system is decentralized. While there is a 'Main Body ECU' that handles many core functions, the part that most often causes widespread, confusing electrical issues is the Network Gateway ECU (part number 89219-50040). This module manages the flow of information between the car's different computer networks. Think of it this way: if the Main Body ECU is the boss of a department, the Gateway ECU is the switchboard operator for the entire company. When the switchboard goes down, nobody can communicate, and chaos ensues. This guide focuses specifically on this critical Network Gateway ECU.

Symptoms of a Failing 2004-2006 LS430 Network Gateway ECU

Failure of the Gateway ECU is rarely subtle. Because it disrupts communication across the entire vehicle, you will likely experience multiple, seemingly random issues at once. Look for these common signs:

• "External System Is Not Connected": This message appearing on the central navigation/information screen is a classic sign that the Gateway ECU is failing to route communication to the display.
• Multiple Warning Lights: The dashboard may light up with various warnings for the ABS, Airbags (SRS), Power Steering, or Check Engine, even if those systems are mechanically sound. 🎬 Learn more about what your dashboard warning lights mean This happens because the modules for those systems have lost communication with the rest of the car.
• Loss of Accessory Functions: You may find that power windows, door locks, the radio, climate controls, and power seat adjustments stop working intermittently or all at once.
• No Communication with Scan Tool: A technician may find they cannot communicate with multiple vehicle modules using a standard OBD-II scanner. The Gateway ECU is the entry point for diagnostics, and its failure can block access.
• Intermittent Problems: The issues may come and go, often triggered by temperature changes or vehicle vibration. This can point to failing solder joints or capacitors inside the module.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA that directly address a known defect with the Network Gateway ECU (89219-50040). However, the 2004 model year was subject to a significant safety recall (NHTSA ID: 04V317000) for a potential defect in the 6-speed automatic transmission that could cause the parking lock to fail. While unrelated to the Gateway ECU, it's an important piece of history for 2004 LS430 owners.

Buying a Used LS430 Network Gateway ECU

Given that a new OEM module costs over $800, a used OEM unit is a smart, cost-effective choice. Aftermarket versions of this complex part are not available. Here’s what to look for when buying used:

• Verify the Part Number: You must match the part number exactly: 89219-50040. This part is specific to the 2004, 2005, and 2006 Lexus LS430 models equipped with the 6-speed automatic transmission.
• Physical Inspection: When the part arrives, inspect it carefully. Look for any signs of corrosion (white or green powder) on the pins of the electrical connectors. Check the case for any signs of being pried open or physical damage.
• Source Vehicle Information: If possible, buy from a seller who can provide the year of the donor vehicle. While the part fits all three years, getting one from a lower-mileage car is always preferable.
• Return Policy: Only buy from sellers who offer a warranty and a clear return policy. This protects you in case the part is dead on arrival, as can happen with used electronics.

Programming and Installation Requirements

This is the most critical part of the replacement process. A used Network Gateway ECU is NOT a simple plug-and-play part, despite what some sellers may claim. The vehicle's immobilizer system (anti-theft) is linked through this module, and the new ECU must be synchronized with your car's keys and other computers for the engine to start and run correctly.

You have two primary options for programming:

1. The Professional Method (Recommended): The official and most reliable method is to have a Lexus dealership or a qualified independent shop use Toyota's Techstream diagnostic software to register the used ECU to your vehicle. This process establishes the digital "handshake" between the modules. Many advanced automotive locksmiths also have the tools and ability to perform this service.

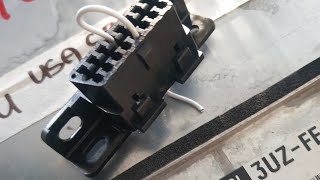

2. The DIY 30-Minute Method: A widely documented procedure for many Toyota and Lexus vehicles involves a manual synchronization. After installing the used ECU, you use a wire or paperclip to bridge pins 4 (CG - Chassis Ground) and 13 (TC - Timing Check) on the OBD-II port under the dashboard. You then turn the ignition key to the 'ON' position (do not start the engine) and leave it for 30 minutes. 🎬 Watch: How to perform the paperclip programming method This forces the modules into a learning mode to accept the new ECU. While many have used this method successfully, it should be performed with caution.

Replacement Cost Comparison

The cost savings of using a recycled OEM part are significant. Labor for the physical swap is relatively low, but be sure to factor in the cost of programming.
