2022-2025 F-150 Lightning & Navigator Headlamp Control Module: Decoding Programming Requirements and Failures
This guide covers the essential programming, recalls, and replacement challenges for the Headlamp Control Module (HCM) found in the 2022-2024 Lincoln Navigator and 2022-2025 Ford F-150 Lightning.
- A replacement Headlamp Control Module MUST be programmed to your vehicle's VIN to function; it is not a plug-and-play part.
- You may avoid programming by swapping your original, working module onto a replacement headlamp assembly if only the housing was damaged.
- A recall (22V455) was issued for 2022 Lincoln Navigators for failing DRLs/side markers caused by a software bug in this module.
- Replacement on the F-150 Lightning is a major job, requiring removal of the front bumper and frunk components.
Known Issues, Recalls, and Technical Service Bulletins
Both the Lincoln Navigator and Ford F-150 platform have seen specific issues related to the headlamp control modules, primarily addressed through software updates and recalls.
2022-2024 Lincoln Navigator
Recall Notice: Ford issued recall 22V455 (Ford code 22C14) for 2022 Lincoln Navigator models due to a software error in the Headlamp Control Module. This defect could cause the daytime running lights (DRLs) and side marker lamps to fail to illuminate, increasing the risk of a crash. A subsequent recall, 25V403 (Ford code 25C28), was issued for a small number of vehicles where the initial software fix was not installed correctly. The fix for both recalls is a software update performed by a Lincoln dealer.
Owners of affected vehicles might see a warning message in the instrument cluster that reads, "Advanced front lighting features temporarily unavailable. See manual."
2022-2025 Ford F-150 Lightning
While the F-150 Lightning has had several recalls, most relate to the rear light bar, battery pack, or other systems. However, issues with the front lighting control systems are still documented:

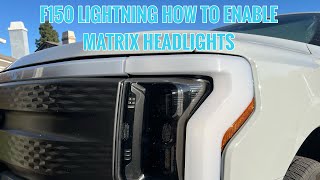

- Flickering Park Lamps: A recall (23C36) was issued for some 2022 non-electric F-150s with advanced LED headlamps for flickering parking lamps. The cause was identified as an issue within the LED Driver Module, and the fix is a software update to the Headlamp Control Module. This highlights the software-dependent nature of the system shared with the Lightning. 🎬 Watch: A walkthrough of the F-150 Lightning matrix headlight system.
- Auto High Beam Issues: Some F-150 Lightning owners have reported problems with the automatic high beams not dimming correctly for oncoming traffic. While not always triggering a fault code, this can be a safety issue.
- Diagnostic Trouble Codes (DTCs): Technical Service Bulletin (TSB) SSM 53105 notes that some 2024 F-150s may show a DTC U211B:87 in the HCM during a self-test.
Symptoms of a Failing Headlamp Control Module
A failing Headlamp Control Module can cause a wide range of lighting problems. Because it is an electronic module, symptoms are not always consistent.
- One or Both Headlights Not Working: The most obvious sign is a headlight that won't turn on, even with a good bulb.
- Flickering or Dimming Lights: Lights may flicker, especially when first turned on or while driving.
- Daytime Running Lights (DRLs) or Marker Lights Out: As noted in the Lincoln Navigator recall, a specific function like the DRLs may fail while the main headlights still work.
- Erratic Automatic High Beam Function: The auto high beams may fail to dim for oncoming traffic or may not activate at all.

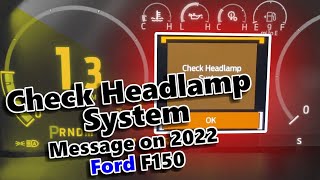

- Dashboard Warning Messages: A message related to "Advanced Lighting Features" or a general headlight system fault may appear. 🎬 Watch: Diagnosing a 'Check Headlamp System' message on an F-150.
- Water Intrusion: On the F-150 Lightning, owners have reported cracked headlight housings allowing water to enter, which can short out the module.
Replacement and Programming
Replacing this module is a complex task, both mechanically and electronically.
Replacement Difficulty
The location of the HCM makes replacement a significant job, especially on the F-150 Lightning.
- Ford F-150 Lightning: To access the headlamp assemblies and their attached modules, a technician must remove the frunk liner, the upper front bumper, and the frunk shroud. This is a time-consuming process that is not recommended for most DIY mechanics.
- Lincoln Navigator: While potentially less involved than the Lightning, accessing the module still requires removing interior trim panels or the entire headlamp assembly from the vehicle.
The #1 Most Important Step: Programming
Warning: A new or used replacement Headlamp Control Module MUST be programmed to your vehicle. It will not function correctly if you simply plug it in.
This process, called Programmable Module Installation (PMI) by Ford, involves using a diagnostic scan tool to download the configuration data from your vehicle (or the old module) and transfer it to the new module. This syncs the module with your vehicle's specific features and VIN. This service must be performed by a Ford/Lincoln dealer or a well-equipped independent shop with the proper tools. Some advanced DIYers may be able to perform this with tools like FORScan, but it requires technical expertise.
🎬 See this step-by-step tutorial on how to use FORScan.Pro Tip: If you are replacing a headlamp assembly due to physical damage (e.g., a cracked lens) but your original control module is still working, you may be able to swap your original module onto the replacement headlamp assembly. As one F-150 Lightning owner noted, if you can transfer the old module, you may be able to avoid the cost and hassle of programming. This is the most cost-effective solution for many buyers of used parts.
Buying a Used Headlamp Control Module
Buying a used OEM module is an excellent way to save money, but there are crucial factors to consider.
- Verify the Goal: Are you replacing just the module or the entire headlight? If your original module works, prioritize buying a complete used headlight assembly and plan to swap your module onto it.
- Check Part Numbers: Match the part number on your original module exactly. While some numbers supersede others, an exact match is the safest bet. The primary part number family for this module is based on 13C788.
- Inspect for Damage: Physically inspect the used module for any signs of corrosion on the pins, cracks in the casing, or evidence of water damage. Do not buy a module that looks like it has been wet.
- Factor in Programming Costs: If you are buying a used module to replace a failed one, remember to budget for the mandatory programming cost. Call local shops or a dealer beforehand to get a quote for this service.
Cost Comparison
Prices can vary significantly based on the source of the part and labor rates in your area.
| Item | Estimated Cost |
|---|---|
| New OEM Module (Dealer) | $500 - $700 |
| New Aftermarket Module | $150 - $300 |
| Used OEM Module | $100 - $250 |
| Shop Labor (Replacement & Programming) | $200 - $450+ (Higher for F-150 Lightning due to bumper/frunk removal) |
Frequently Asked Questions (FAQ)
Do I have to get this module programmed at the dealer?
A Ford or Lincoln dealer is the most reliable option. However, some independent repair shops that specialize in Ford products or advanced electronics will have the necessary scan tools and software (like FDRS - Ford Diagnostic & Repair System) to program the module to your vehicle. Always confirm with the shop before booking the service.
Can I replace the module myself to save money?
For most owners, this is not a recommended DIY job. On the F-150 Lightning, it requires extensive disassembly of the front end, including the bumper and frunk components. Even if you replace the part, the vehicle will still need to go to a shop for the mandatory programming.
What is the difference between the Headlamp Control Module (HCM) and the Body Control Module (BCM)?
The HCM is a specialized computer that controls only the functions of the advanced headlamps. The Body Control Module (BCM) is a more central computer that manages a wider variety of general vehicle functions like power windows, door locks, interior lights, and the anti-theft system. These vehicles have both.
My headlights work but my daytime running lights (DRLs) don't. Is it this module?
It's very possible. The 2022 Lincoln Navigator recall was for this exact issue, where a software glitch in the HCM caused the DRLs and side markers to stop working. Before replacing any parts, check if your vehicle is covered by this or any other lighting-related recall.
Helpful Videos
Technical Specifications
OEM Part Numbers: NL7A-13B626-CE NL7A-13B626-CF NL7A-13B626-CG NL7Z-13C788-A NL7Z-13C788-E NL7Z-13C788-F LC5Z-13C788-J JL7Z-13C788-K ML3Z-13C788-A
Controls vehicle's advanced LED headlamp system, including DRLs and adaptive lighting features. Requires VIN-specific programming upon installation.
