Mazda CX-7 & MX-5 Miata BCM Issues: Fixing Keyless Entry and Electrical Problems (2006-2013)

Symptoms of a Failing Body Control Module

A faulty BCM can cause a wide range of confusing and intermittent electrical problems. Because it controls so many different systems, symptoms often appear unrelated. Watch for several of these issues happening at once.

• Erratic Electrical Functions: Power windows that don't respond, door locks that act on their own, or interior/exterior lights that flicker, stay on, or don't turn on at all are classic signs.

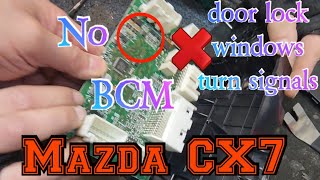

🎬 Watch this step-by-step repair for window and lock issues.

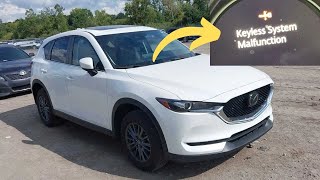

• Keyless System Malfunction: You may see a "Keyless System Malfunction" warning on the dash. The push-button start may not work, or the buttons on the door handles to lock/unlock the car may become unresponsive, even with a good key fob battery.
• Vehicle Won't Start: The BCM is tied to the vehicle's anti-theft immobilizer system. A failed BCM may not recognize your key, preventing the engine from cranking or starting.
• Parasitic Battery Drain: A common and frustrating symptom is a battery that dies overnight or within a few hours. A faulty BCM can fail to shut down certain accessories, causing a continuous power draw.
• Warning Lights: A dashboard lit up with multiple, seemingly random warning lights can point to a BCM that is failing to communicate with other modules in the car.
• OBD-II Communication Codes: A professional scan tool may find "U" codes, such as U0140 (Lost Communication With Body Control Module), indicating a network problem related to the BCM.

Known Issues and Vehicle-Specific Information

While these vehicles share a BCM, they have some unique considerations.

2007-2009 Mazda CX-7: Water Intrusion is the #1 Killer

The most common cause of BCM failure in the Mazda CX-7 is water damage. The BCM is located in the driver's side kick panel area, a location vulnerable to water leaks from a clogged sunroof drain or a bad cowl seal. 🎬 See how to identify the cause of water leaks. Water drips onto the module, corroding the circuit board and its connectors. In some cases, if the damage is minor, the module can be removed, opened, and the circuit board cleaned with an electronics cleaner to restore function. However, severe corrosion usually means the BCM must be replaced.

2006-2013 Mazda MX-5 Miata (NC)

The BCM in the NC generation Miata is also located in the driver's side footwell area. While not as prone to the specific water intrusion issue as the CX-7, failures are typically due to general age-related electronic component failure. Symptoms are consistent with the general list above. No major recalls or Technical Service Bulletins (TSBs) point to a widespread BCM defect for this specific generation of Miata.

Programming and Installation: A Dealer Visit is Required

This is the most critical part of replacing the BCM in either the CX-7 or MX-5 Miata.

A replacement BCM—whether new or used—will not work until it is programmed to your vehicle. The car will not start, and many electronics will be inoperative until this step is completed.

• Immobilizer Link: The BCM stores key fob and immobilizer data. The programming process syncs the new module with your existing keys and the Powertrain Control Module (PCM). Without this, the anti-theft system will prevent the car from starting.
• Configuration Data: Before removing the old BCM, a technician must use the Mazda Diagnostic and Repair Software (MDARS) or older IDS to save the vehicle's specific configuration data. This data is then written to the new module. If the old module is dead and cannot be read, the new module must be programmed from scratch using "as-built" data from Mazda, a more complex procedure.
• Who can program it? This procedure requires a Mazda dealership or a highly specialized independent shop with a subscription to Mazda's software and a compatible J2534 pass-thru device. 🎬 Watch a demonstration of used module programming and coding. Most general repair shops and locksmiths cannot perform this programming.

Buying a Used Body Control Module

Purchasing a used BCM is an excellent way to save money, but careful selection is key. Given that a new OEM module can cost over $500, a used unit offers significant value.

1. Match the Part Number Exactly: The most important rule. Remove your original BCM and find the OEM part number printed on the label. Your replacement module MUST have the exact same part number (e.g., EG23675DZB, NF47675RZ). Different numbers may look identical but contain different hardware or software for other vehicle options.
2. Inspect for Water Damage: For CX-7 owners especially, this is vital. When you receive the used part, inspect the case and all electrical connector pins. Look for any signs of white or green crust, which indicates corrosion. Do not install a module that shows any evidence of moisture.
3. Source from a Reputable Recycler: Buy from a seller that offers a warranty and has good reviews. This gives you recourse if you receive a dead-on-arrival part.
4. Why Used OEM is a Good Choice: A used OEM module was made to Mazda's original quality standards. It is often a more reliable and affordable choice than a new aftermarket part, which may have questionable long-term durability.

Cost to Replace the Body Control Module

Prices can vary based on your location and the specific part required.

Note: Labor costs include both the physical installation (1-1.5 hours) and the mandatory programming procedure.
