2000 Saab 9-5 Immobilizer Guide: Understanding the TWICE Module
This guide clarifies the critical role of the Theft Warning Integrated Central Electronics (TWICE) module, which is often confused with a standard Body Control Module, and explains why replacement requires special procedures.
- The security module in a 2000 Saab 9-5 is the TWICE unit, not a generic BCM; it controls the immobilizer and causes a no-start condition when it fails.
- When buying a used TWICE module, it is absolutely essential that it comes with at least one key that was programmed to it from the donor car.
- A replacement TWICE module, new or used, will not work until it is programmed ('married') to the vehicle using a Saab Tech 2 diagnostic tool.
- A common symptom of failure is the 'Key not accepted' message on the dashboard display, which results in a no-crank, no-start situation.
Symptoms of a Failing TWICE Module
A failing TWICE module in a 2000 Saab 9-5 can cause a range of frustrating and specific symptoms. Because it is the central security unit, the most common signs are related to the immobilizer system.

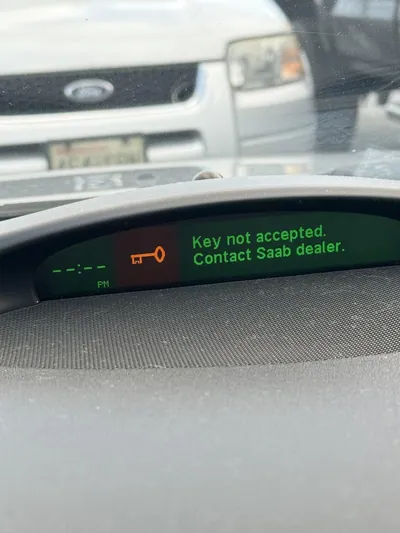

- "Key Not Accepted" Message: The most definitive symptom is the "Key not accepted" message appearing on the Saab Information Display (SID) when you try to start the car.
- Engine Will Not Crank: When the key is not accepted, the starter motor will not engage at all. You will turn the key to the 'Start' position and nothing will happen.
- Central Locking Failure: The remote key fob may stop locking or unlocking the doors. Opening the car may only be possible by using the physical key in the driver's door lock.
- Clicking Noise: A rhythmic clicking sound may be heard from under the driver's seat, which is where the TWICE module is located.
- Erratic Electrical Behavior: While less common than a no-start condition, a failing TWICE module can sometimes cause other electrical issues like intermittent problems with lights or a parasitic battery drain that kills the battery overnight.
Pro Tip: A no-start condition can also be caused by a faulty Ignition Discharge Module (IDM), which was subject to a safety recall for 2000-2002 Saab 9-5 models. If your car cranks but won't start, or stalls while driving, the IDM is a more likely culprit than the TWICE module.
The Difference Between TWICE and a BCM
It is important to understand that for this vehicle, the critical anti-theft component is the TWICE module, not a generic Body Control Module (BCM). While a BCM manages general body electronics like power windows and wipers, the TWICE module specifically handles the immobilizer and central locking. If you are experiencing a no-start issue with a "Key not accepted" message, you are dealing with a TWICE problem. Searching for a "Body Control Module" may lead to incorrect parts and confusion.
Buying a Used 2000 Saab 9-5 TWICE Module
Purchasing a used TWICE module is possible, but it has very specific requirements that are different from most other auto parts. Failure to follow these rules will result in a part that cannot be installed.
- The Golden Rule: Get the Key! A used TWICE module is useless unless it comes with the original key (or keys) that were programmed to it from the donor vehicle. The transponder chip inside the key is electronically "married" to that specific TWICE unit. Without the matching key, a technician cannot program the used module to your car.
- Verify the Part Number: Before purchasing, you must physically remove your original TWICE module from under the driver's seat and confirm the part number. 🎬 Watch: Why matching part numbers is critical for your TWICE unit. Part numbers can vary, and an incorrect module may cause other electrical issues, like non-functioning lights or trunk release, even if it allows the car to start. Do not rely on online catalogs, which can be inaccurate.
- Inspect for Damage: The TWICE module is located on the floor, making it susceptible to water damage from leaks or spills. Carefully inspect the pins on the connector for any signs of green or white corrosion. Avoid any units that show signs of water intrusion or have a broken case.
Warning: The OEM part number 5256631, sometimes associated with this vehicle, has been identified by some vendors as a Transmission Control Module. This highlights the importance of physically matching the part number from your original TWICE unit to the replacement part.
Programming and Installation
A replacement TWICE module, whether new or used, must be programmed to the vehicle using a Saab-specific diagnostic tool called a Tech 2. This is not an optional step.
- Installation: The module is located on the floor under the driver's seat. The process involves disconnecting the battery, removing the seat (or sliding it fully back), pulling back the carpet, and unbolting the module.
- Programming ("Marrying"): A technician uses a Tech 2 to perform a "Spare Part Programming" or "Add/Remove Key" function. This process marries the replacement TWICE module to the car's other systems and programs your existing keys (and the donor key, if using a used module) to the new unit. The car will not start until this is completed.
- Who Can Program It? This procedure can be performed by a Saab-specialist independent mechanic or some GM dealerships with legacy Tech 2 equipment. There are also mail-in services that can program a replacement TWICE module if you send them your original unit and keys, or clone your original module's data to a donor unit.
Cost to Replace a 2000 Saab 9-5 TWICE Module
The cost can vary significantly based on the parts and labor source. Programming is a mandatory additional cost to the part itself.
| Item | Estimated Cost |
|---|---|
| New OEM TWICE Module Kit (with key) | $900 - $1,250+ (if available) |
| Used OEM TWICE Module (with matching key) | $150 - $300 |
| Shop Labor (Installation) | $100 - $200 |
| Shop Labor (Tech 2 Programming) | $150 - $400 |
| Mail-In Cloning/Programming Service | $200 - $300 (plus shipping) |
Frequently Asked Questions (FAQ)
Will my car start if I just swap in a used TWICE module?
No. The car will not start until the replacement module is electronically married to your vehicle using a Tech 2 diagnostic tool. The immobilizer will prevent the engine from cranking.
Do I really need the key from the donor car when buying a used TWICE?
Yes, this is absolutely critical. A technician needs the key that is already paired with the used TWICE module to gain security access and program it to your car. A used module without its matching key is effectively a paperweight.
Can I program a TWICE module myself?
Only if you own a genuine or high-quality clone of a Tech 2 scanner and have access to the necessary Saab software and security permissions. For most owners, this is not a feasible DIY job.
My car won't start, but it cranks. Is it the TWICE module?
It is unlikely. A failed TWICE module typically results in a no-crank condition. If your engine cranks but does not start, the problem is more likely related to the fuel system, ignition system, or the Ignition Discharge Module (IDM), which was part of a recall.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5256631 5043353 5262761 5042239 5040167 5266952 12767179
Location: Under the driver's (LH) front seat. Connector: 70-pin. Controls: Immobilizer, central locking, anti-theft alarm, lamp check, seat belt warning.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
