2002 Subaru Forester Airbag Module: Understanding Part 98221FC210 and the 'BCM' Confusion

A Critical Clarification: This is NOT a Body Control Module

Symptoms of a Failing 2002 Forester Airbag Module

The most common and immediate sign of a problem with the airbag module is an illuminated SRS warning light on your dashboard. This light, which looks like a person with an airbag deployed, should turn on for a few seconds when you start the car for a system self-check, and then turn off. If the light stays on, it indicates a fault has been detected in the airbag system, and the system is disabled.

• SRS Airbag Light Stays On: This is the primary symptom. The module has detected a fault in itself or one of the system's components (sensors, wiring, airbags, seat belt pretensioners) and has stored a Diagnostic Trouble Code (DTC).
• Airbags Do Not Deploy in a Crash: This is the most dangerous symptom and the ultimate consequence of ignoring the SRS warning light.
• Faulty Seat Belt Pretensioners: After a minor accident, the seat belt pretensioners may lock up, and the module will store crash data even if the airbags did not deploy.

A professional scan tool capable of reading SRS codes is required for diagnosis. Common codes pointing to a module issue include internal faults or communication errors. Some generic Subaru SRS codes include:

• 21: Airbag Control Module Is Faulty.
• 22: Front Airbag Module Or Pretensioner(s) Inflated.
• 25: Airbag Control Module or Main Wiring Harness Or Body Wiring Harness Open.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no specific recalls for the 2002 Forester's airbag *control module* itself, it's important to be aware of the widespread Takata airbag *inflator* recall that affected many Subaru vehicles. This recall concerns the inflator mechanism inside the passenger-side airbag, not the control module. You can check if your vehicle is affected by this separate recall by using the VIN lookup tool on the NHTSA website or Subaru's official site.

No specific Technical Service Bulletins (TSBs) for the 2002 Forester's airbag module (98221FC210) were found during research. However, general TSBs for later models often address issues with Occupant Detection System (ODS) sensors and wiring harnesses, which can also cause the airbag light to illuminate.

Repair and Replacement Options: The 'Crash Data' Problem

When an airbag module detects a collision, it permanently stores "crash data" or "hard codes" in its memory. This happens even in minor incidents where only a seat belt pretensioner fires. Once this data is written, the SRS light will stay on, and the module is locked. This data cannot be cleared with a standard OBD-II scanner or even by the dealer. This leaves you with three main options:

1. Replace with a New OEM Module: This is the most expensive option. A new module from a Subaru dealer guarantees a clean, functional part but can cost several hundred dollars plus labor and may require programming to the vehicle's VIN.
2. Replace with a Used OEM Module: This is a cheaper but very risky option. If the used module comes from a vehicle that was in an accident, it will also have crash data stored and will be useless. You must have absolute certainty that the donor vehicle was never in a collision.

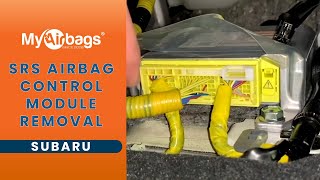

3. Reset Your Original Module: This is often the best and most cost-effective solution. You can remove your original module and send it to a specialized service that will professionally clear the crash data, restoring it to its factory state. 🎬 See how professional services clear crash data and hard codes Because it is the original unit, it remains plug-and-play with no need for dealer programming.

Buying a Used 2002 Forester Airbag Module

If you choose to buy a used module, proceed with extreme caution. The functionality of a used airbag module depends entirely on its history.

• Verify No Crash Data: The single most important question to ask the seller is: "Can you guarantee this module was removed from a vehicle that was never in an accident and has no stored crash data?" If they cannot provide this guarantee, do not buy the part.

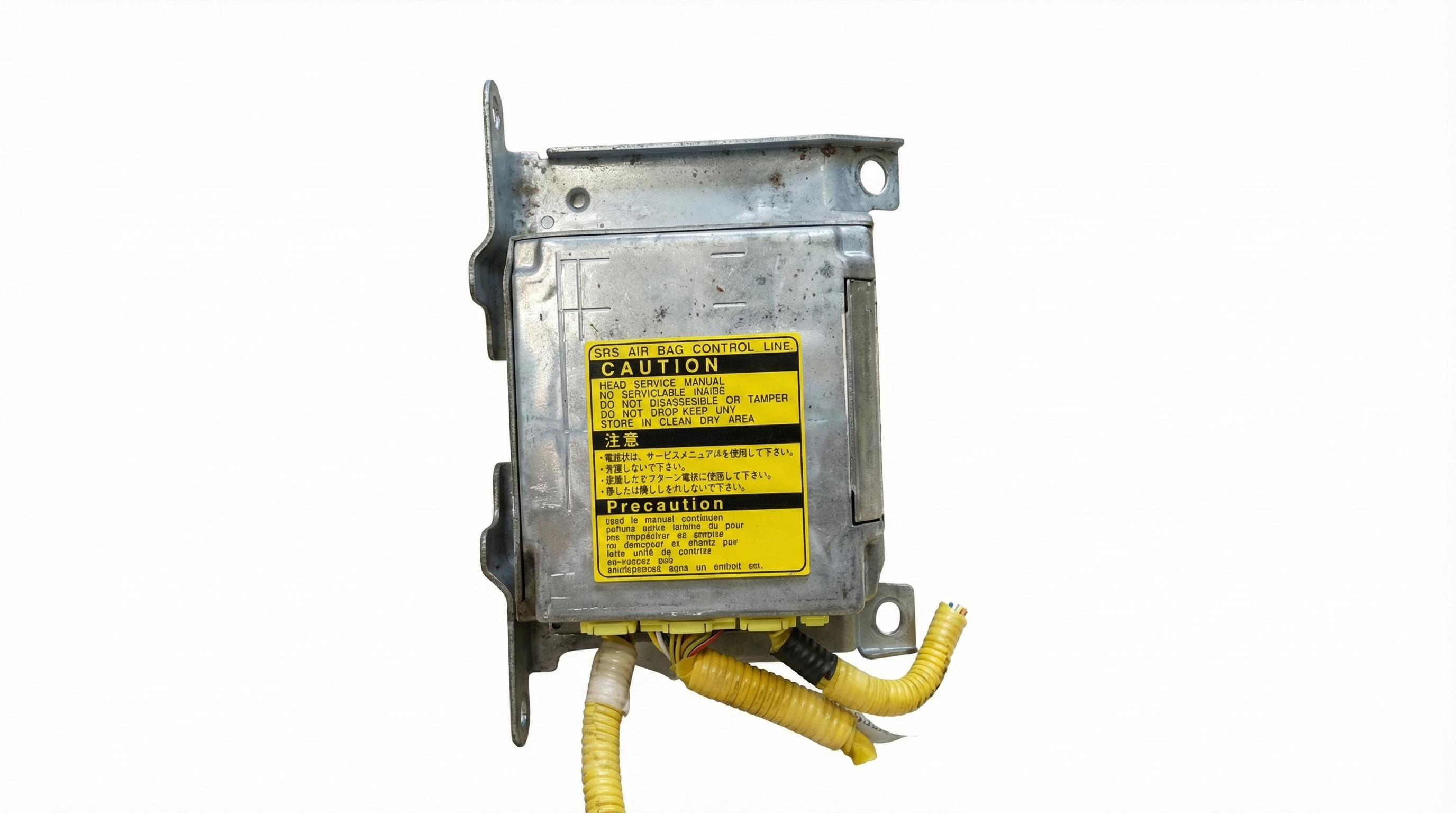

• Match Part Numbers Exactly: Ensure the part number on the used module is an exact match for your original one (98221FC210). While some modules may look identical, internal programming can differ.
• Inspect for Damage: Check the module for any signs of physical damage, corrosion, or water intrusion. The module is located in the center console area, which can sometimes be susceptible to spilled liquids. A module with any signs of water damage is likely toast.
