2004-2005 Subaru Forester Body Control Module: A Guide to Programming, Immobilizers, and Replacement

Symptoms of a Failing 2004-2005 Forester Body Control Module

A failing BCM often creates a cluster of strange, unrelated electrical problems. Because the BCM controls so many different systems, its failure can be confusing to diagnose. One of the most common signs is when multiple electrical components start acting erratically at the same time.

• Erratic Electronics: You might experience power windows that don't work, door locks that cycle randomly, wipers that turn on by themselves, or interior/exterior lights that flicker or refuse to turn on or off.
• Instrument Cluster Warnings: The dashboard may light up with multiple warning lights, sometimes described as a "Christmas tree" effect, even if the systems those lights represent are working fine.
• Key Fob and Security Issues: The remote keyless entry may stop working, and the vehicle's security system might act up.
• Parasitic Battery Drain: A faulty BCM can fail to go into "sleep mode" when the car is off, causing a slow drain that kills the battery overnight.
• No-Start Condition: This is a critical symptom. The BCM is a key part of the immobilizer system. If it fails, it cannot recognize your key's transponder chip, and the engine will crank but will not start. You may also see the red "security" light on the dash stay on or blink when trying to start the car.
• OBD-II Codes: A failing BCM may not always trigger a standard Check Engine Light. Instead, it often stores Body (B-prefix) or Network (U-prefix) codes. A very common code is U0140, which means "Lost Communication With Body Control Module".

The Critical Role of the Immobilizer and Programming

This is the most important thing to understand about the Forester's BCM. For security, the BCM, the Engine Control Module (ECM), and your ignition keys are all programmed together as a matched set. You cannot simply take a BCM from another Forester and plug it into your car. While it may be physically identical, it is electronically tied to the donor vehicle's VIN and keys.

Who Can Program a Replacement BCM?

Programming a new or used BCM is not a DIY task. It requires specialized diagnostic tools and software to make the new module communicate with your car's existing components.

• Subaru Dealerships: A dealer is the most reliable, albeit often most expensive, option. They have the proprietary Subaru Select Monitor tool required for the job.
• Independent Repair Shops: Many independent shops that specialize in Subaru or Japanese vehicles have the necessary professional-grade scan tools (like high-end Autel or Snap-on scanners) with software capable of performing BCM programming.
• Automotive Locksmiths: Some, but not all, automotive locksmiths have the advanced tools needed to program Subaru BCMs and keys. It is wise to call ahead and confirm they have the specific capability for a 2004-2005 Forester.
• Mail-In Services: There are services where you can mail in your original BCM and a replacement (new or used), and they will clone the data from your old module to the new one. This can be a good option if you can have the vehicle off the road for a few days.

Buying a Used 2004-2005 Forester Body Control Module

A used OEM BCM is a cost-effective and reliable alternative to an expensive new unit, provided you follow a few key rules. Given that programming is required no matter what, saving money on the part itself makes a lot of sense.

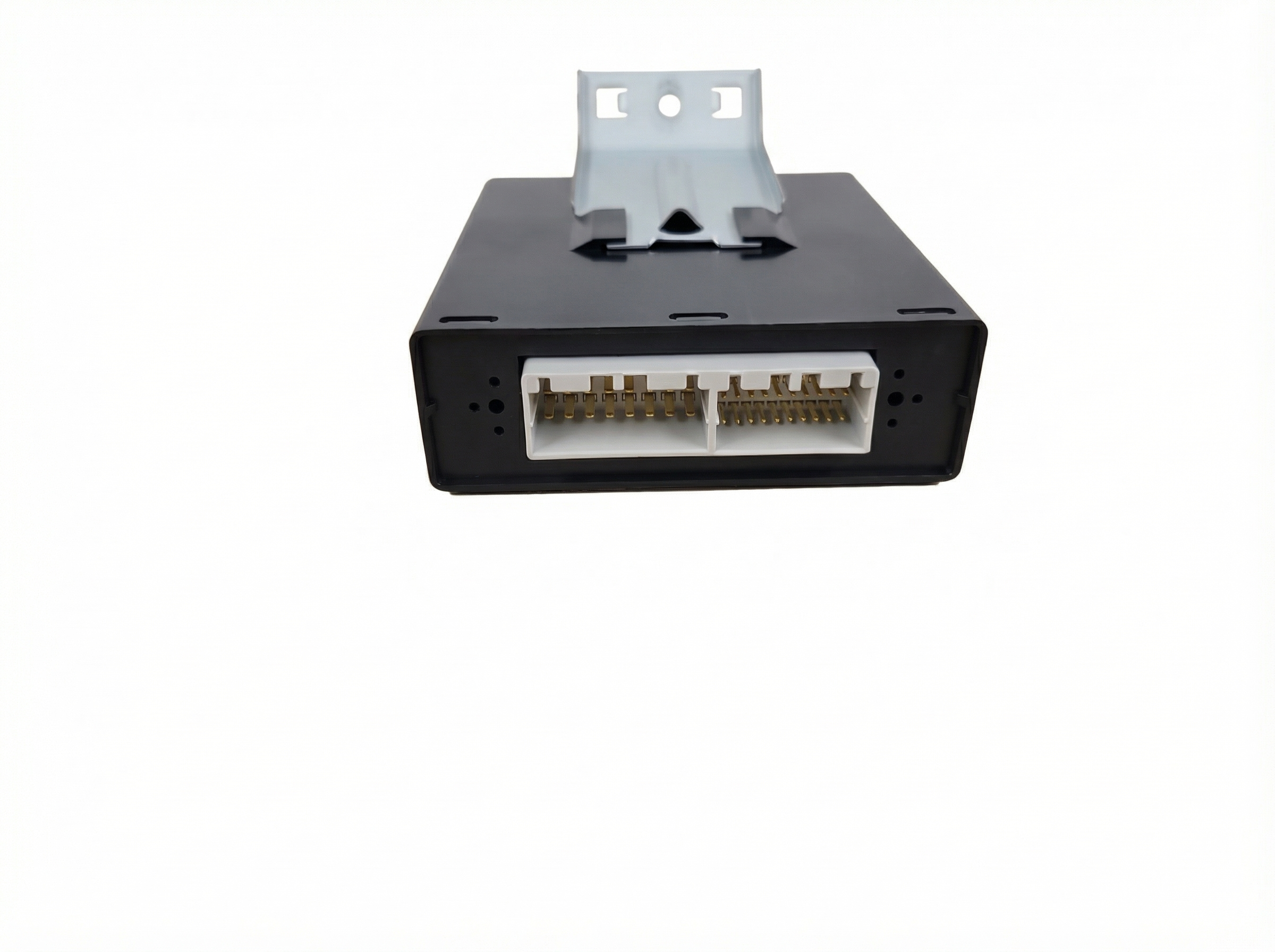

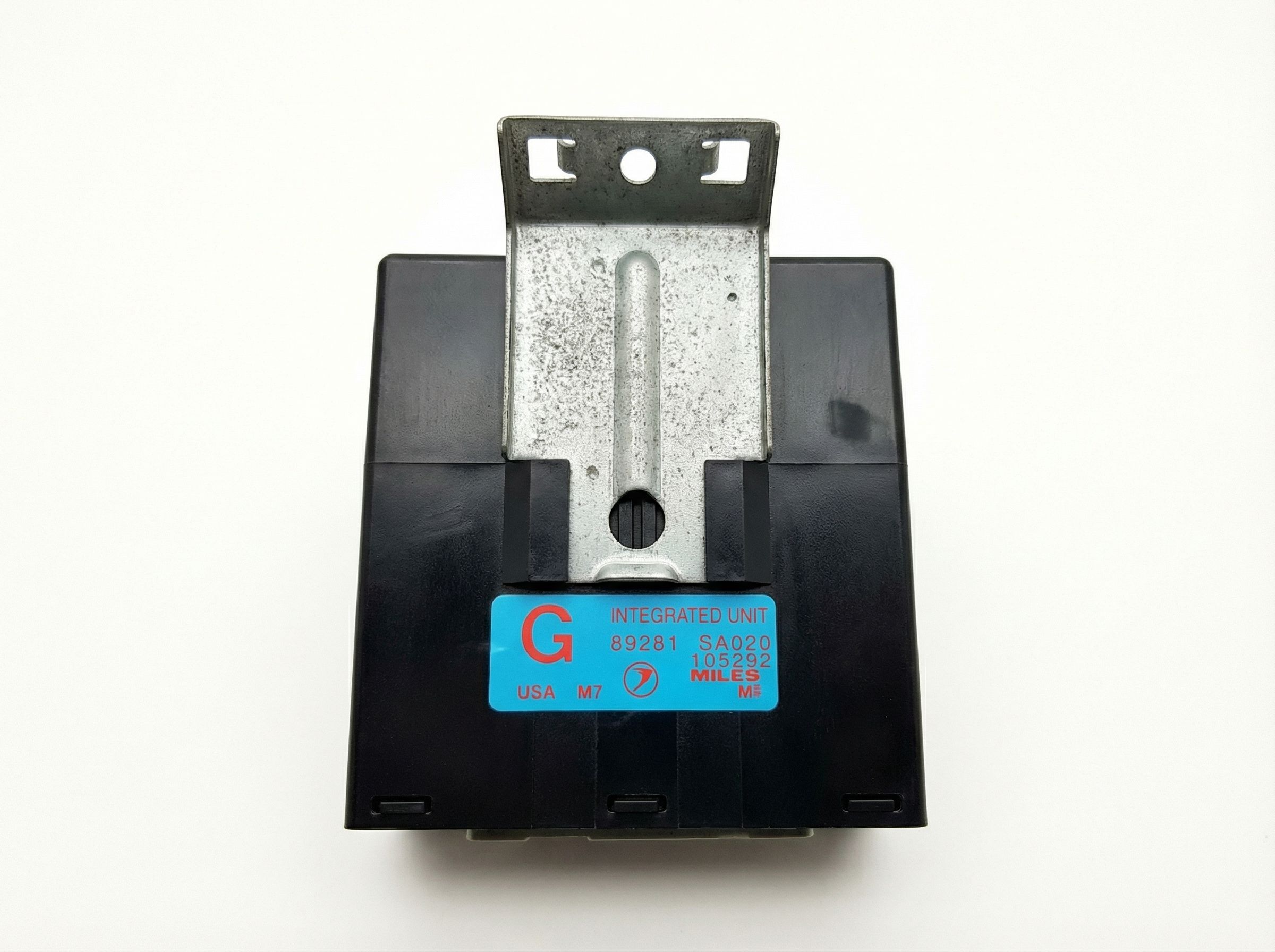

1. Verify the Part Number: This is the most critical step. You must match the OEM part number exactly. The primary part number for 2004-2005 Foresters is 98221SA080. You may also see 88281SA020, which appears to be an integrated module for the same years. Always purchase the part number that matches the one currently in your vehicle.
2. Factor in Programming Costs: Remember that the price of the used part is not your final cost. Get a quote for programming from a local dealer or qualified shop before you buy the part.
3. Inspect for Damage: When you receive the used module, inspect it carefully. Look for any signs of corrosion on the pins or connectors, which indicates water damage. Check that the plastic casing is not cracked or broken and that there are no signs of it having been opened before.
4. Buy from Reputable Sellers: Purchase from established auto recyclers that offer a warranty. This protects you in case you receive a part that is dead on arrival.

Replacement Cost Breakdown

The total cost can vary significantly based on the price of the part and local labor rates. Programming is a mandatory part of the labor cost.
