Tesla Body Controllers (VCFRONT, VCLEFT, VCRIGHT): 2012-2023 Model S, 3, X, Y

Understanding Tesla's Distributed Body Controller System

If you're facing electrical issues in your 2012-2020 Tesla Model S, 2017-2023 Model 3, 2016-2023 Model X, or 2020-2023 Model Y, the problem might be a body controller. However, these vehicles don't have one single Body Control Module (BCM). Instead, they use a network of zone-specific controllers that communicate with each other. Understanding which one does what is key to fixing the problem.

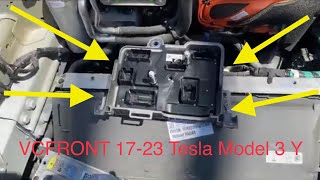

• Front Body Controller (VCFRONT): This is the main hub for many front-of-vehicle functions. Located under the frunk trim near the 12V battery on the Model 3 and Y, 🎬 See this walkthrough on how to remove the VCFRONT module. it controls headlights, thermal systems (pumps and fans), and distributes power to the other controllers. Failures here can cause widespread electrical issues.
• Left Body Controller (VCLEFT): Typically found in the driver's side footwell or A-pillar area, this module is responsible for everything on the driver's side. This includes the driver's door lock, window, mirror, seat controls, and turn signals.
• Right Body Controller (VCRIGHT): Located in the passenger footwell or behind the glove box, this is the mirror image of the VCLEFT. It controls the passenger door, window, mirror, and seat.

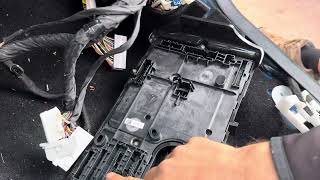

🎬 Watch a step-by-step guide to replacing the right body controller.
• Rear Body Controller (Model X/S): Some models, particularly the Model X, also feature a rear body controller to manage functions like the liftgate and rear lighting.

Symptoms of a Failing Body Controller

Symptoms are often isolated to the area of the car controlled by the failing module. However, a VCFRONT failure can cause more general problems. Many of these symptoms can also be caused by a failing 12V battery, which should always be checked first.

Zone-Specific Failures (VCLEFT or VCRIGHT)

• One door will not lock or unlock electronically.
• A single window or power mirror stops working.
• Power seat controls on one side become inoperative.
• Turn signal on one side fails to work, even with a good bulb.

General Failures (Often VCFRONT)

• Parasitic Battery Drain: A faulty VCFRONT can fail to let the vehicle 'sleep', causing the 12V battery to drain overnight. This may be accompanied by a constant humming noise from the front of the car.
• Multiple Warning Lights: You may see a cascade of errors on the screen, often starting with `VCFRONT` error codes like `VCFRONT_a192`, `VCFRONT_a402`, or `VCFRONT_a182`.
• Lighting and Wiper Issues: Headlights, interior lights, or wipers may behave erratically or stop working altogether.
🎬 Watch how a VCFRONT failure can cause HVAC and heat issues.
• Key Fob Not Detected: The car may suddenly stop recognizing the key fob or phone key.

Known Issues, TSBs, and Recalls

As of early 2026, there are no widespread recalls specifically for the VCFRONT, VCLEFT, or VCRIGHT controllers on these models. Most recalls for Tesla vehicles are addressed via over-the-air (OTA) software updates.

A known failure mode for electronic modules in general is water intrusion. On early Model S vehicles, a poorly placed air conditioning drain hose was known to drip water onto electronics, causing corrosion and failure. While not specifically linked to the body controllers, any signs of moisture in the footwells or under the frunk carpeting should be investigated immediately to prevent damage to these expensive modules.

Replacement and Programming: Not a DIY Job

After physical installation, a technician must perform several software routines:

1. Firmware Reinstall: The vehicle's firmware must be re-flashed to recognize the new hardware.
2. VIN Learn: A specific routine, such as "PROC_BDY_X_PEKTRON-VIN-LEARN," must be run to pair the controller to the car's VIN.
3. Security Configuration: Because these modules interact with the anti-theft and key systems, they must be configured. This may involve an immobilizer reset or re-learning all vehicle keys.

These procedures, especially those related to vehicle security, may be restricted and can only be performed by Tesla service centers or authorized independent repair shops with a subscription to Toolbox 3 and the necessary permissions. Attempting to swap a module without proper programming will result in a non-functional vehicle.

Buying a Used Body Controller

Buying a used VCFRONT, VCLEFT, or VCRIGHT can save you a significant amount of money, but it comes with risks. Given the complex software pairing required, this is a part you should only purchase if you have a clear plan for installation and programming.

• Verify the Part Number: Tesla uses many revisions. Match the part number from your original module exactly. Part numbers like 1657648-02-A (VCLEFT) or 1834629-20-E (VCRIGHT) are specific to certain models and years.
• Plan for Programming: Before you buy, confirm that a local Tesla service center or a trusted independent EV specialist is willing and able to program a used module for you. Some service centers may refuse to install or program parts they did not source.
• Inspect for Damage: Physically inspect the used module for any signs of corrosion, water damage, or broken connector pins. A video from a repair shop showed a used module arriving with a crumbled, brittle connector that had to be swapped from the old unit.
• Crash Data: If the module came from a vehicle that was in an accident, it may have a "post-crash load shedding" flag that needs to be cleared with Toolbox 3 before it will function.

Cost to Replace a Tesla Body Controller

Costs can vary based on which controller has failed and local labor rates. The modules themselves are less expensive than a traditional BCM, but the specialized labor for programming is a major factor.
