2002-2004 Toyota Avalon Skid Control Module: VSC Lights and Calibration Explained

Is It a Body Control Module or a Skid Control ECU?

While the term Body Control Module (BCM) is often used generically for any electronic control unit, the part discussed here is specifically the Skid Control ECU for the 2002-2004 Toyota Avalon. Its primary job is to manage the ABS and Vehicle Skid Control (VSC) systems. The main Body ECU is a separate component that handles interior functions like power windows, locks, and lights. The part numbers 89541-07040 and 89630-07010 refer to modules related to the skid control system. Specifically, 89541-07040 is identified as the "Computer, Skid Control" or "ABS Control Module".

Symptoms of a Failing Skid Control Module

When the Skid Control ECU begins to fail, your car will alert you with several distinct warnings on the dashboard. The most common signs include:

• ABS Light On: The most direct indicator of a fault in the anti-lock braking system.
• VSC and TRAC OFF Lights Illuminated: These lights indicate that the Vehicle Skid Control and Traction Control systems are disabled. Often, a fault in one system will disable the others as a precaution.
• Multiple Warning Lights at Once: It's common for the ABS, VSC, and a general brake warning light to all appear simultaneously.
• Diagnostic Trouble Codes (DTCs): A scan tool may reveal codes pointing to a module failure. 🎬 Watch: Expert tips on diagnosing a faulty skid control ECU. Common codes include C1300 (ABS ECU Malfunction) and others related to system communication or specific sensor inputs that are processed by the ECU. Sometimes, a flood of over 50 codes can appear, indicating a total module communication failure.
• Changes in Brake Feel or ABS Behavior: In rare, severe cases, you might experience a hard brake pedal or a near-total loss of braking power if the failure affects the hydraulic control unit it commands.

Known Issues, TSBs, and Recalls

For the 2002-2004 model years, there was a significant safety recall involving the steering system, but not directly for the Skid Control ECU. Toyota issued a recall for the Steering Column Upper Bracket due to a casting defect that could cause the steering lock bar to break and potentially lock the steering wheel while driving. While this is a separate issue, it's a critical safety repair that owners should ensure has been performed on their vehicle. There are no widespread recalls or Technical Service Bulletins (TSBs) specifically targeting the Skid Control ECU for this generation, suggesting failures are typically due to age or individual component issues rather than a design flaw.

CRITICAL: Zero Point Calibration After Installation

You cannot simply swap a used Skid Control ECU and expect it to work. The VSC system requires a Zero Point Calibration to learn the vehicle's "zero" position for the steering angle, yaw rate, and deceleration sensors. Without this procedure, the VSC and ABS lights will remain on, and the system will not function correctly.

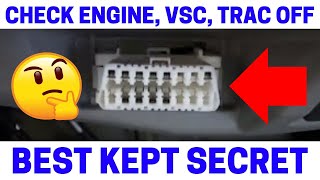

DIY Calibration: The "Paperclip Method"

For many Toyota vehicles of this era, it's possible to perform the Zero Point Calibration without a professional scan tool. This procedure involves using a paperclip or jumper wire to connect specific pins in the vehicle's OBD-II port.

1. Park the vehicle on a level surface with the steering wheel pointed straight ahead.
2. Turn the ignition off.
3. Using a jumper wire or two paperclips, connect terminals Ts (pin 12) and CG (pin 4) of the OBD-II port located under the driver's side dashboard.
4. Turn the ignition key to the ON position (do not start the engine). The ABS/VSC lights will begin to flash, indicating the memory has been cleared.
5. Turn the ignition off and remove the jumper wire.
6. The calibration is now complete. Drive the vehicle straight at a speed of at least 25 mph for a few seconds to allow the system to confirm the new settings.

When is a Professional Scan Tool Needed?

While the paperclip method often works, some situations may require a professional scan tool like Toyota's Techstream software. If the DIY calibration fails, or if there are other underlying codes, an independent shop specializing in Toyota or the dealership will be needed to properly diagnose and program the module. Some dealers may be unwilling to program a used module, so it's wise to confirm with an independent shop first.

Buying a Used 2002-2004 Avalon Skid Control Module

Purchasing a used Skid Control ECU is a cost-effective way to solve this issue, especially given the high price of a new unit. Here’s what to look for:

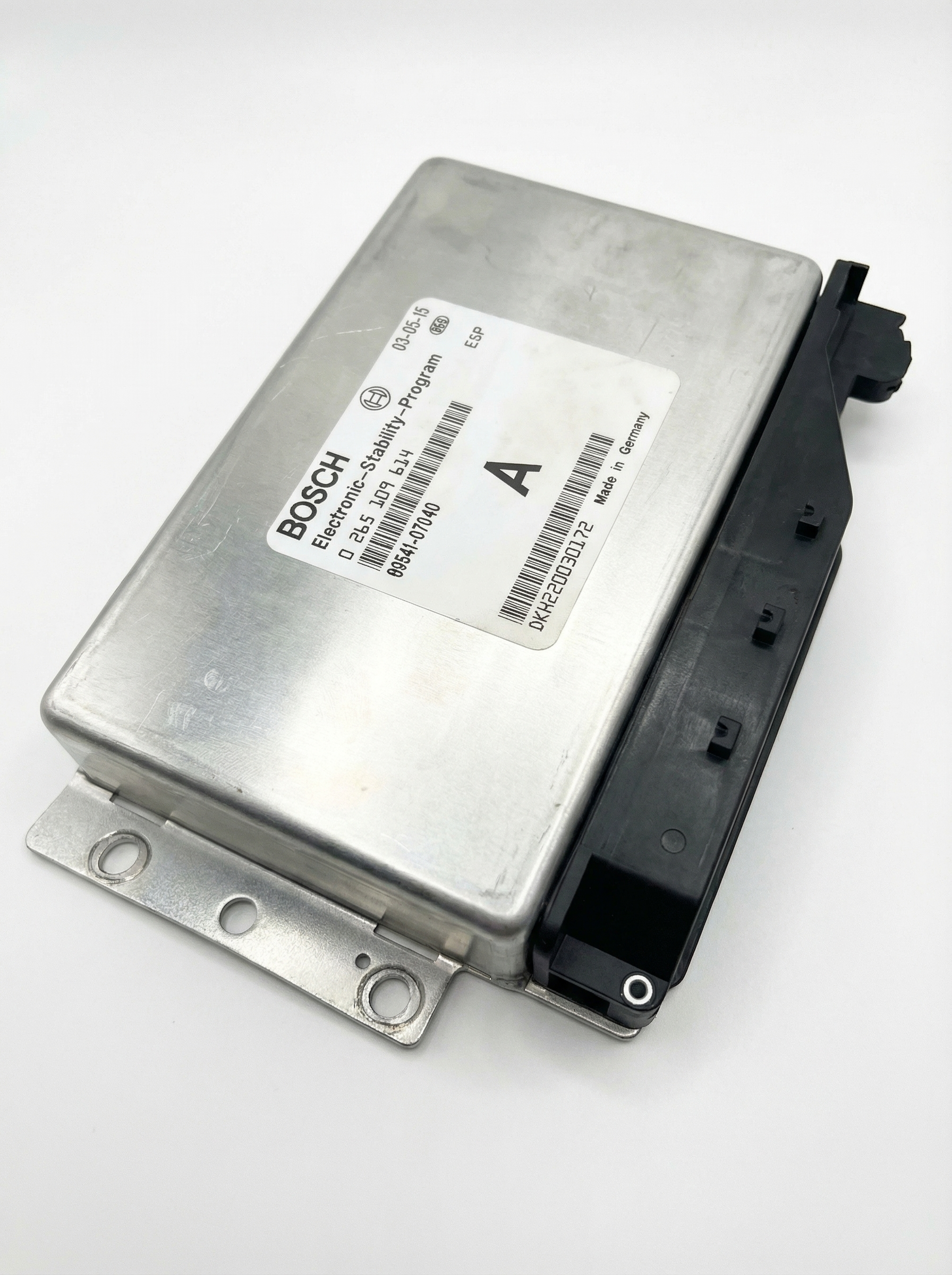

• Match the Part Number Exactly: This is the most important rule. The part number on your original module must match the one you are buying. The primary number to look for is 89541-07040. Do not rely on visual similarity alone.
• Verify Compatibility: Double-check that the donor vehicle had VSC and, for 2002 models, that it was built after 05/2002.
• Inspect for Damage: Check the replacement module for any signs of physical damage, especially corrosion on the electrical connector pins or cracks in the housing. Water intrusion is a potential cause of failure.
• Why Used OEM is a Smart Choice: A used OEM module from a reputable recycler is often more reliable than a new, unproven aftermarket part. The hardware itself is generally robust; the main challenge is the calibration, which applies to both new and used parts. Given that a new OEM module can cost thousands of dollars, a used one offers significant savings.
