1997 Camry & ES300 Airbag Module Guide: SRS Light, Reset, and Replacement
This guide covers the Airbag Control Module for the 1997 Toyota Camry and Lexus ES300, focusing on what the SRS light means and your options after a collision.
- This part is an Airbag Control Module, NOT a Body Control Module. Its failure disables the entire airbag system.
- After a crash, the module stores 'hard codes' and must be replaced or professionally reset; a standard scanner cannot clear the light.
- A used module from a non-crashed vehicle or your own reset module is plug-and-play and does NOT require dealer programming.
- Always match the part number exactly (e.g., 89170-06040) and ensure it's for a vehicle without side airbags.
Understanding the Airbag Control Module in the 1997 Camry & ES300
The computer that controls the airbags in the 1997 Toyota Camry and the 1997 Lexus ES300 is officially called the Airbag Sensor Assembly, or more commonly, the Airbag Control Module. It is a critical safety component, not to be confused with a Body Control Module (BCM) which manages convenience features like power windows and locks. This module's only job is to manage the Supplemental Restraint System (SRS). When it functions correctly, it's completely invisible. When it fails, or after it has been activated in a crash, it will trigger the SRS warning light on your instrument cluster.
Warning: An illuminated SRS or airbag warning light means the entire airbag system is disabled. The airbags will NOT deploy in a future collision until the system is properly repaired and reset.
Symptoms of a Faulty or Deployed Airbag Module
The signs of an issue with the airbag module are straightforward:
- SRS Airbag Light is On: This is the most common and direct symptom. After the initial startup check, the light should turn off. If it stays on, it indicates a fault in the system. This could be the module itself, a sensor, wiring, or a deployed component.
- System Inactive After a Collision: If the vehicle has been in an accident, even a minor one that didn't deploy the airbags, the module may still store crash data and trigger the warning light. If airbags did deploy, the module is guaranteed to be locked and will need to be reset or replaced.
Advanced diagnostic scanners can read specific trouble codes from the SRS module (often starting with a "B"), which can help a technician pinpoint the exact fault, whether it's a sensor, a seatbelt pretensioner, or the module's internal memory.
Buying a Used Airbag Module vs. Resetting Your Original
Since new OEM modules for these vehicles are discontinued, your two main options are to buy a used module or have your original one reset. Both are excellent, cost-effective solutions.
Option 1: Buying a Used Module
This is a great choice for DIY repair. A used module from a 1997 Camry or ES300 is a direct, plug-and-play replacement, with no programming required.
- Verify Compatibility: You MUST match the OEM part number exactly. The most common numbers are 89170-06040, 89170-33040, and 89170-33041.
- Crucial Warning: The initial data for this part specifies it fits vehicles WITHOUT side airbags. Ensure the donor vehicle has the same airbag configuration as yours.
- Source is Everything: Only buy a used module from a reputable seller who guarantees it came from a vehicle where the airbags did not deploy. If you install a module from a crashed car, it will have the same locked crash data as your old one.
Option 2: Resetting Your Original Module
After a crash, the module is not necessarily broken; it's just locked for safety. Several mail-in services can professionally erase the stored crash data, making your original module as good as new. This is often the best method.
- Guaranteed Compatibility: Since you are reusing your original part, you know it's a perfect match for your vehicle's VIN and options.
- Cost-Effective: A reset service is typically very affordable, often costing less than a guaranteed-good used module.
- Process: The process involves carefully removing the module from your vehicle, mailing it to the service provider, and reinstalling it once they ship it back. The turnaround is usually a few days.
Pro Tip: Before reinstalling a reset or used module, make sure all other SRS components 🎬 See this walkthrough for replacing a deployed airbag. (deployed airbags, locked seatbelt pretensioners, damaged sensors) have been replaced. If you install a clean module into a car with faulty components, the SRS light will come right back on.
Airbag Module Location and Replacement Basics
The airbag control module in the 1997 Camry and ES300 is typically located under the center console, toward the front, bolted to the floor of the vehicle. This central location helps it accurately detect forces during a collision.
Replacement involves these general steps:
- Disconnect the battery. Disconnect the negative battery terminal and wait at least 15-30 minutes for the system's backup power to fully discharge. This is a critical safety step.
- Remove center console trim panels 🎬 Watch this video to see how to remove the console. to gain access to the module.
- Unplug the yellow SRS wiring harnesses. These connectors have special locking tabs.
- Unbolt the module from the vehicle floor.
- Installation is the reverse of removal. Ensure all bolts are tight and connectors are securely clipped in before reconnecting the battery.
Cost Comparison
Here is an estimated cost breakdown for resolving an airbag module issue. Prices can vary based on your location and chosen supplier.
| Service / Part | Estimated Cost |
|---|---|
| New OEM Module | Discontinued |
| Used OEM Module | $25 - $100 |
| Module Reset Service | $50 - $100 |
| Shop Labor to Replace | $135 - $200 |
Frequently Asked Questions (FAQ)
Does this airbag module need to be programmed to my car?
No. For the 1997 Toyota Camry and Lexus ES300, a replacement module with a matching part number from a non-crashed vehicle, or your own reset module, is plug-and-play and does not require dealer programming.
Can I reset the airbag light myself with a regular OBD-II scanner?
No. Standard code readers cannot clear the "hard codes" or crash data stored in an airbag module after a deployment. The module must be professionally reset or replaced.
🎬 Learn more about how Toyota airbag light resets work.Is it safe to drive with the airbag light on?
While the vehicle will drive normally, it is not safe. The airbag light indicates that the entire Supplemental Restraint System is offline and will not function in an accident. You and your passengers will not have the protection of the airbags or seatbelt pretensioners. It is critical to have this repaired as soon as possible.
Where is the airbag module located?
It is typically bolted to the floor pan, under the center console, forward of the gear shifter. You will need to remove the console trim pieces to access it.
Helpful Videos
Technical Specifications

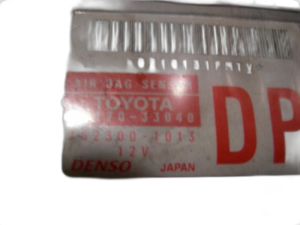

OEM Part Numbers: 89170-06040 89170-33040 89170-33041
Fits vehicles without side airbags.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
