1998 Camry & ES300 Airbag Control Module: Solving the SRS Light

Is it a Body Control Module or an Airbag Module?

The electronic module shared between the 1998 Toyota Camry and 1998 Lexus ES300 is the Airbag Control Module, which is dedicated exclusively to the Supplemental Restraint System (SRS). These vehicles do not use a single, all-in-one Body Control Module (BCM) like many modern cars. Instead, they have several separate computers for different functions. This guide focuses specifically on the SRS module responsible for airbag operation.

Symptoms of a Failing Airbag Control Module

A faulty airbag module will almost always alert you with a clear warning sign. If the module detects a problem within the SRS system, or if it fails its own internal self-check, it will disable the system and turn on a warning light.

• SRS Warning Light is On: The most common symptom is an illuminated SRS warning light on your dashboard. This light looks like a person with a deployed airbag or simply says "SRS." While this light indicates a fault in the system, it doesn't automatically mean the module itself is bad. The problem could be a faulty sensor, clockspring, or wiring.
• Airbags Do Not Deploy: The most dangerous symptom is the failure of airbags to deploy during a collision that should have triggered them. This is a critical safety failure.
• Unusual Electrical Behavior: In some rare cases, a failing module can cause other strange electrical issues, like a parasitic battery drain or unusual clicking sounds from the center console area where the module is located.

Diagnosing the SRS System

Diagnosing an SRS light requires a special tool. A standard OBD-II code reader used for check engine lights cannot read SRS codes. You or your mechanic will need a more advanced scan tool that can communicate with the airbag system to retrieve the specific fault codes. A common code for this generation is B0106, which points to a fault in the passenger-side airbag circuit, but this could be the wiring or the airbag itself, not necessarily the module.

Buying a Used Airbag Control Module: What to Look For

Since Toyota has discontinued the new supply of these modules, buying a quality used part is the most common solution. Here’s what you need to know to buy the right part.

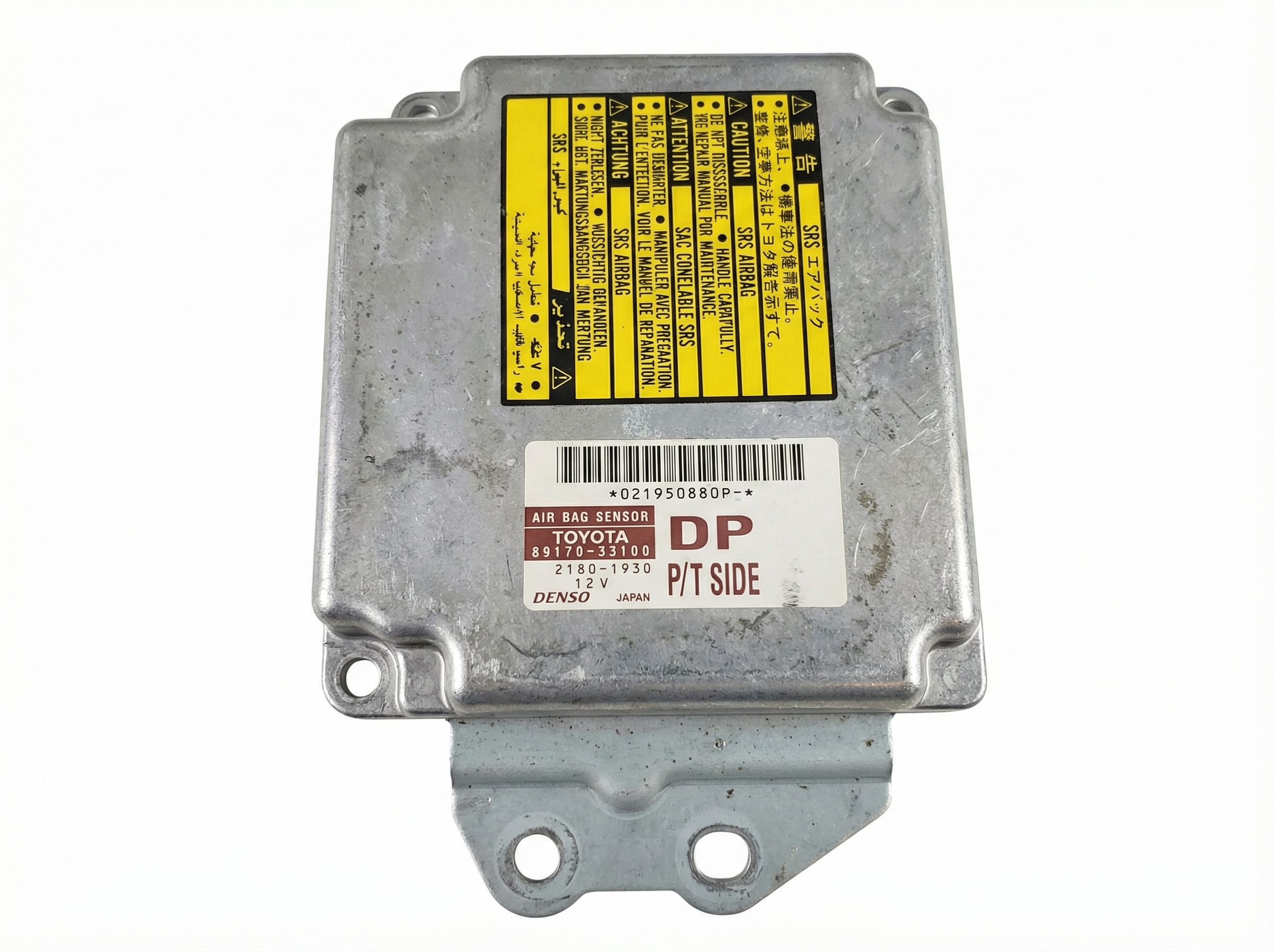

1. Match the Part Number EXACTLY

There are different modules for this model year. You must match the part number on your original module to the one you are buying. The primary part numbers are 89170-06080 and 89170-33100. Part number 89170-06080 is a later version that replaces 89170-33100.

2. Ensure the Module is "Clean"

When a vehicle is in an accident and the airbags deploy, the module records "crash data" and becomes permanently locked. A module with crash data is useless until it has been professionally reset. When buying used, it is essential to source the part from a vehicle that was not in a collision. Reputable auto recyclers can verify this. A "clean" module from a non-wrecked car does not require any programming and is plug-and-play.

3. Physical Inspection

When you receive the used module, inspect it for any signs of water damage, corrosion on the pins, or physical damage to the case. The module is located under the center console, an area prone to drink spills. Any signs of moisture mean you should not install the part.

Programming and Installation Requirements

For the 1998 Camry and ES300, the programming requirements depend on the state of the module:

• Used Module (No Crash Data): If you install a used module with a matching part number that was sourced from a car that was not in an accident, no programming is required. It is a direct, plug-and-play replacement.
• Used Module (With Crash Data): If you use a module from a wrecked vehicle, it must be sent to a specialized service to have the crash data cleared and the module reset. This service costs around $50-$150 and restores the module to factory settings. 🎬 Watch: Comparing airbag module resets versus buying used replacements. After the reset, it becomes plug-and-play.
• New Module: A brand new module (if you could find one) would need to be programmed to your vehicle's VIN by a dealer or a specialty shop with the correct equipment.

Installation Overview

The airbag control module is located under the center console, between the two front seats. While replacement is feasible for a DIY mechanic, it requires extreme caution.

1. DISCONNECT THE BATTERY: Disconnect the negative battery terminal and wait at least 30 minutes. This allows the system's internal capacitors to fully discharge, preventing accidental airbag deployment. This is the most important safety step.
2. Access the Module: Remove the trim pieces that make up the center console to expose the module.
3. Unbolt and Unplug: Carefully unbolt the module from the vehicle floor and disconnect the yellow wiring harnesses.
4. Install the Replacement: Bolt the new module in place, reconnect the wiring harnesses, reassemble the console, and finally, reconnect the battery.
🎬 See this walkthrough for replacing the module in your Camry.

Known Issues, Recalls, and TSBs

There have been no recalls or Technical Service Bulletins (TSBs) issued by Toyota, Lexus, or the NHTSA specifically for the airbag control module on the 1998 Camry or ES300. However, there were other notable recalls for these vehicles, including one for a steering wheel nut that could loosen (NHTSA 99V307000) and an accelerator cable issue on V6 models (NHTSA 01V012000). These do not affect the airbag module's function but are part of the vehicle's history.
