2016 Toyota Corolla Power Steering Module: Diagnosis, Cost, and Programming Requirements
This guide covers the diagnosis, replacement, and mandatory programming for the Power Steering Control Module (part no. 89650-02B20) in the 2016 Toyota Corolla.

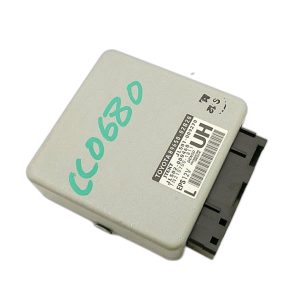

- This part, 89650-02B20, is the Power Steering Control Module (PSCM), NOT the Body Control Module (BCM).
- A replacement PSCM MUST be programmed to the vehicle by a dealer or qualified shop with Toyota Techstream software.
- Failure of this module leads to heavy steering or a complete loss of power assist, which is a safety concern.
- When buying used, ensure the part number matches exactly, but know that programming is still required for it to function.
An Important Clarification: Power Steering Module vs. Body Control Module

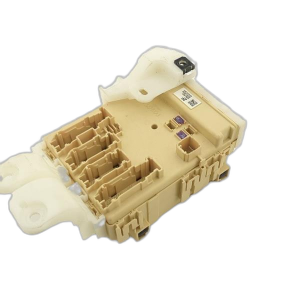

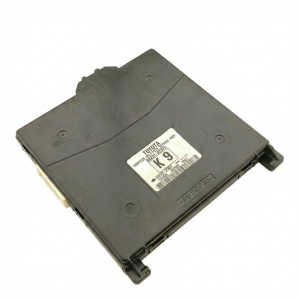

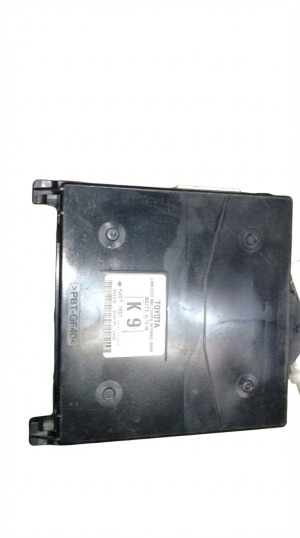

While this part is sometimes confused with the Body Control Module (BCM), the part number 89650-02B20 is specifically the Power Steering Control Module (PSCM). The 2016 Corolla has a separate BCM (also called the Multiplex Network Body Computer) that handles functions like interior/exterior lights, power windows, door locks, and the security system. If you are experiencing issues with those systems, you likely need a BCM, not this power steering module.
Symptoms of a Failing Power Steering Module
When the PSCM begins to fail, it will directly impact steering performance. You may notice one or more of the following symptoms:
- Heavy or Difficult Steering: The most common symptom is a sudden or intermittent loss of power assist, making the steering wheel very difficult to turn, especially at low speeds or when parking.
- Erratic Steering Behavior: The steering might feel overly sensitive, loose, or may seem to pull to one side without warning.
- Power Steering Warning Light: A warning light (often showing a steering wheel icon with an exclamation mark) will illuminate on the dashboard. 🎬 Watch: Understanding what your power steering warning light means.
- Complete Loss of Power Steering: In cases of total failure, the power assist will stop working entirely. The vehicle can still be steered manually, but it will require significant physical effort.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Toyota that directly target the Power Steering Control Module for the 2016 Corolla.
- Airbag Control Module Recall: The 2016 Corolla was included in a major recall (NHTSA Campaign Number 20V024000) for a faulty Airbag Electronic Control Unit (ECU), which could fail to deploy airbags in a crash. This is a separate and unrelated module from the Power Steering Control Module.
- Rodent Damage: Some owners of this Corolla generation have reported issues with rodents chewing on wiring. The soy-based material used for wire insulation can attract animals, potentially causing damage to the harness leading to the PSCM or other electronic components. A visual inspection for chewed wires is a wise diagnostic step if you experience sudden electrical issues.
Warning: A replacement Power Steering Control Module must be programmed to the vehicle after installation. Failure to program the module will likely result in no power steering assist and a persistent warning light on the dash.
Buying a Used Power Steering Control Module
Purchasing a used OEM module is a cost-effective repair strategy, but success depends on careful purchasing and proper installation procedures. Here’s what you need to know:
- Match the Part Number Exactly: Ensure the used module has the exact part number 89650-02B20 printed on its label. Electronic modules are not interchangeable, even if they look identical.
- Programming is Not Optional: A used module must be synchronized with your vehicle's systems. This is not a DIY job for this model. You will need a Toyota dealership or an independent repair shop that has a subscription to Toyota's Techstream software 🎬 See how technicians use Techstream software for vehicle programming. and a proper vehicle interface.
- Inspect for Damage: Before purchasing, visually inspect the module for any signs of physical damage, such as bent connector pins, cracks in the casing, or evidence of water intrusion or corrosion.
- Mileage and VIN are Not a Factor: Unlike some other modules, the PSCM does not store the vehicle's VIN or mileage. Therefore, a used unit from any donor 2016 Corolla with the same part number is compatible, provided it is programmed correctly.
Programming and Installation
The physical replacement of the module is straightforward for a mechanic, as it is typically located under the driver's side dashboard. 🎬 Watch: How to access and remove the steering column components. However, the critical step is the electronic programming.
- The new or used module is installed and connected to the vehicle's wiring harness.
- A technician connects a diagnostic tool with Toyota's Techstream software to the vehicle's OBD-II port.
- The technician performs a calibration or initialization procedure. This allows the new module to communicate correctly with the vehicle's other systems, including the steering angle sensor.
Pro Tip: During programming, the vehicle's battery must be connected to a stable power supply or charger. A drop in voltage during the programming process can corrupt the module, rendering it useless—a costly mistake known as "bricking."
Cost Comparison for Replacement
The cost can vary significantly based on the source of the part and local labor rates. Programming is often a separate charge from the physical installation.
| Part Type | Estimated Part Cost |
|---|---|
| New OEM | $450 - $550 |
| Used OEM | $50 - $125 |
| New Aftermarket | Not commonly available |
| Remanufactured | Not commonly available |
| Shop Labor & Programming | $200 - $350 |
Frequently Asked Questions (FAQ)
Is the Power Steering Control Module the same as the Body Control Module (BCM)?
No. The Power Steering Control Module (PSCM), part number 89650-02B20, exclusively manages the electric power steering system. The Body Control Module (BCM) is a separate part that controls body electronics like lights, windows, and locks.
Does a used power steering module need to be programmed for a 2016 Corolla?
Yes, absolutely. Any replacement module—new or used—must be programmed and calibrated to the vehicle using specialized diagnostic equipment like Toyota's Techstream software. Without this step, the power steering will not function.
Can I program this module myself?
No, DIY programming is not feasible for this vehicle. It requires a professional-grade diagnostic tool and a paid subscription to Toyota's technical information and software services. This is a job for a dealership or a well-equipped independent shop.
What happens if I just install the module without programming it?
If you install a replacement PSCM without programming, the power steering assist will almost certainly not work. The steering will remain very heavy, and the power steering warning light will stay illuminated on your dashboard.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89650-02B20 8965002B20
Controls the Electric Power Steering (EPS) system.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
