2004 Volkswagen Touareg Body Control Module (J519): Failure Symptoms and Replacement Guide

A Note on Part Identification

Symptoms of a Failing 2004 Touareg Body Control Module

A failing BCM in a first-generation Touareg can create a wide array of confusing and seemingly unrelated electrical problems. Because the J519 module controls so many different systems, its failure often looks like multiple components have failed at once.

• Erratic Lights: Headlights, taillights, or interior lights may flicker, stay on, or not work at all.
• Power Window and Lock Malfunctions: Windows may not open or close, and door locks may respond intermittently or fail completely.
• Wiper and Horn Issues: The windshield wipers may activate on their own, not work when commanded, or the horn may sound unexpectedly or not at all.
• Persistent Battery Drain: A classic symptom is a parasitic battery draw that drains a new battery in a matter of days or hours. This happens when the faulty BCM fails to let other modules go to "sleep" after the car is turned off.
• Dashboard Warning Lights: A flurry of warning lights for various systems (ABS, Airbag, etc.) can appear, often due to communication errors caused by the failing BCM.
• Key Fob and Security Problems: The keyless entry system may stop working, or the vehicle's alarm may act erratically.

Known Issues, TSBs, and Recalls

Water Intrusion: The Primary Cause of Failure

The most common cause of BCM and other electrical module failure in the 2004 Touareg is water damage. Clogged cowl drains (under the windshield wipers) or sunroof drains can cause rainwater to overflow into the cabin, often pooling in the driver's side footwell where the BCM and main wiring harnesses are located. This water corrodes the module's pins, internal circuit boards, and nearby wiring splices, leading to the electrical gremlins mentioned above. Regular inspection and cleaning of these drains is the most effective preventative measure.

Recalls and Technical Service Bulletins (TSBs)

While there are no recalls specifically for the Body Control Module itself, several TSBs and recalls for the 2004 Touareg address related electrical issues:

• NHTSA Recall 03V266000: Addressed an improperly routed wiring harness for the Tire Pressure Monitoring System (TPMS) that could short circuit and potentially cause a fire.
• NHTSA Investigation PE 06-022: Investigated the airbag warning light caused by a faulty side air bag wiring connector. VW issued a TSB (69-05-02) to replace the connector.
• NHTSA Recall for Fuel Pump Flange: A safety recall was issued for 2004-2007 models for cracks in the fuel filter flange that could lead to fuel leaks. While not a BCM issue, it's a critical safety item for owners to be aware of.

Many owner complaints filed with the NHTSA describe the exact electrical failures associated with a bad BCM, such as random warning lights, battery drain, and non-starting conditions.

Programming and Replacement Requirements

Replacing the J519 module involves two potential programming steps:

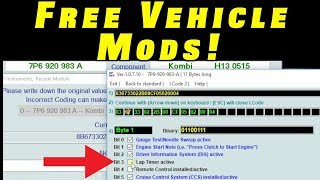

1. Coding: The replacement module must be "coded" with information about your vehicle's specific equipment and options (e.g., with or without a sunroof, type of headlights, etc.). This can be done by a technician using VW-specific diagnostic software like VCDS (VAG-COM) or ODIS. 🎬 See how to use VCDS for coding windows and seatbelt warnings. The coding from the old module should be saved and transferred to the new one if possible.
2. Component Protection (CP): This is Volkswagen's anti-theft system that links major electronic modules to the vehicle's VIN. If the BCM is subject to Component Protection, even after coding, many of its functions will be disabled until the protection is removed. This process, often called "adaptation," requires an online connection to VW's factory servers and must be performed by a VW dealer or a qualified independent specialist with a subscription to the ODIS system. It is critical to confirm if the BCM on this early Touareg has Component Protection, as this adds significant cost and complexity to the repair.

Buying a Used 2004 Touareg Body Control Module

Buying a used OEM BCM is a cost-effective option, but careful selection is crucial to avoid compatibility issues.

• Match the Part Number Exactly: The part number on the replacement module, including the suffix letter (e.g., 7L6 937 049 N), must be an exact match or a compatible supersession for your original part. Different letters often denote different hardware or software revisions.
• Verify the VIN Split: The initial prompt mentioned a VIN split for the 4.2L engine (up to VIN 055000). While this was linked to the TCM, it highlights that VW used different parts during the model year. Always provide your vehicle's VIN to the seller to confirm compatibility.
• Inspect for Corrosion: When buying a used module, carefully inspect the electrical pins and connectors for any signs of green or white corrosion. This is a clear indicator of past water damage, and the part should be rejected.
• Factor in Programming Costs: Remember that the price of the used part is not the final cost. You must budget for professional installation and programming, including a potential dealer visit for Component Protection removal.

Cost Breakdown

Prices can vary significantly based on the source and condition of the part. All replacement options will require programming labor.
