2023-2025 Prius & Prius Prime Wiring Harness: Recall, Part Numbers & Failures
An in-depth guide to the complex body wiring harnesses in the 2023-2025 Toyota Prius and Prius Prime, covering a critical recall, part number confusion, and symptoms of failure.
- A critical safety recall (NHTSA 24V274) affects 2023-2024 models where a wiring short can cause rear doors to open while driving.
- Fitment is extremely complex. You must match the part number from your original harness exactly, considering drivetrain (FWD/AWD), trim, and options.
- Part number 89981-47R81 is a Hybrid Control Computer, NOT a wiring harness, a common point of confusion for buyers.
- Replacement is a massive, high-cost job (5/5 difficulty) requiring removal of the dash and interior; it is not a DIY task.
Warning: Fitment is Extremely Complex
The single most important thing to understand about the body wiring harness for the 2023-2025 Toyota Prius and Prius Prime is that there is no 'one-size-fits-all' part. The correct harness depends entirely on your vehicle's specific configuration.
- Drivetrain: Front-Wheel Drive (FWD) and All-Wheel Drive (AWD) models use different harnesses.
- Trim Level: LE, XLE, and Limited trims have different feature sets, requiring different wiring.
- Factory Options: Features like a panoramic view monitor, premium JBL audio, advanced parking assist, a glass roof, or ventilated seats all require specific wiring connections that may not be present on a harness from a lower-spec vehicle.
Warning: You MUST match the part number from your vehicle's original harness to ensure compatibility. Installing the wrong harness can lead to non-functional features, diagnostic trouble codes, and potentially damage to sensitive electronic modules.
Known Issues, TSBs, and Recalls
Critical Safety Recall: Rear Door Latch Short Circuit (NHTSA 24V274)
Toyota issued a major safety recall for approximately 142,000 2023-2024 Prius and Prius Prime vehicles due to an issue directly related to the vehicle's wiring. Water can enter the electronic rear door switches, causing a short circuit. This short can lead to the rear doors unexpectedly opening while the vehicle is in motion, posing a significant risk of injury. The recall remedy involves dealers modifying the rear door switch circuits free of charge to prevent the switch from activating even if it shorts. Owners can check if their vehicle is affected by visiting Toyota.com/recall or nhtsa.gov/recalls and entering their VIN.
🎬 Watch: How to stay safe during this rear door recallTechnical Service Bulletin (TSB): 12V Battery Drain on Prius Prime (T-SB-0054-24)
For 2023-2024 Prius Prime models, a TSB was issued to address a condition where the 12V auxiliary battery could be drained. This occurs if the charging cable is left connected to the vehicle for more than two hours without actively charging, causing the plug-in charge control ECU to not enter its sleep mode. The fix involves a dealer reprogramming the ECU.
🎬 See why the Prius Prime 12V battery charging is flawedPart Number Variations & Compatibility
The part numbers provided cover different sections of the vehicle's wiring and are not interchangeable. It is crucial to identify which specific harness you need to replace.

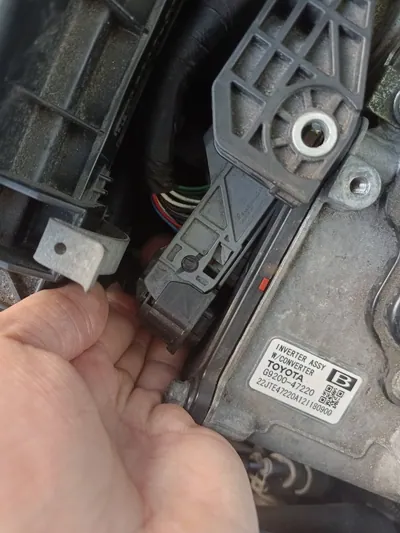

| Part Number | Description | Details & Fitment Notes | Approx. New OEM Price |
|---|---|---|---|
| 82113-47590 | Engine Room Wire / Parking Aid Harness | This harness is located in the front engine bay. It is listed for vehicles 'Without Advanced Park'. | $120 - $170 |
| 82183-47270 | Luggage Room Wire | This is a rear body harness located in the luggage/trunk area. It is specified for models 'Without Panoramic View' monitor. | $100 - $140 |
| 82212-47060 | Air Conditioner Harness | A smaller harness specifically for the A/C system, noted as being for PHEV (Prius Prime) models. | $15 - $25 |
| 89981-47R81 | Hybrid Vehicle Control Computer | Important: This is NOT a wiring harness. It is an electronic control module (ECU) that manages the hybrid system. It is often misidentified as a harness in used parts listings. |
$330 - $430 |
Symptoms of Failure
Wiring harness failures can be difficult to diagnose because they can cause a wide array of seemingly unrelated problems. Symptoms often appear intermittent at first.
- Multiple Warning Lights: The check engine light, ABS, airbag, or other warning lights may illuminate on the dashboard, sometimes randomly.
- Features Not Working: Power windows, door locks, radio, interior lights, or other accessories may stop working or function erratically.
- Engine Starting Problems or Stalling: A bad harness can interrupt power or signals to the ignition or fuel system, causing the car to have trouble starting or to stall while driving.

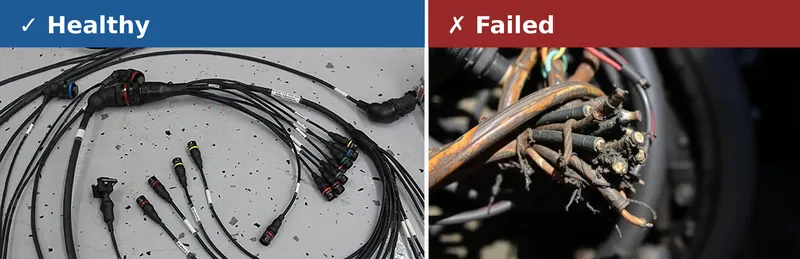

- Visible Damage: In some cases, you might find visible signs of damage, such as chewed wires from rodents, or melted/burnt connectors and insulation from a short circuit.
- Blown Fuses: A short circuit in the harness will often cause fuses to blow repeatedly.
Buying a Used Body Wiring Harness
Due to the high cost of a new OEM harness and the extreme labor involved in a replacement, a quality used OEM harness is often a practical choice. However, careful inspection is critical.

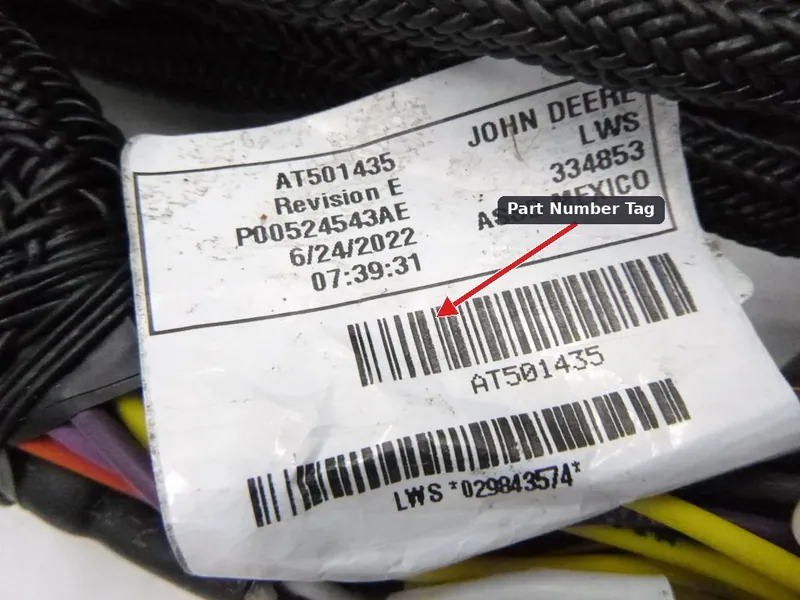

- Verify the Part Number: This is the most crucial step. Locate the white or yellow tag on the harness with the Toyota part number and ensure it is an exact match for the one you are replacing.

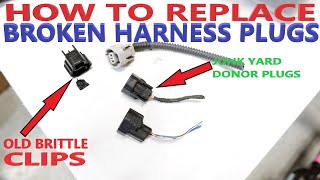

- Inspect All Connectors: Carefully check every plastic connector. Look for cracks, broken locking tabs, or signs of melting. Look inside the connectors for bent, corroded (green or white powder), or pushed-out pins. A single damaged connector can render the entire harness useless. 🎬 Learn how to replace broken or brittle Toyota harness plugs
- Check for Cut Wires: The harness must be removed from the donor car, not cut out. Look along the entire length for any wires that have been cut. Pay special attention near the ends where it connects to various modules.
- Examine the Sheathing: Look for areas where the outer plastic or fabric sheathing is brittle, cracked, or has been rubbed through from vibration. This indicates the harness has been exposed to stress or heat.
- Avoid Repaired Harnesses: Look for signs of previous repairs, like non-factory electrical tape, butt connectors, or spliced wires. A quality used harness should have no modifications.
Cost Breakdown
Replacing a main body harness is one of the most labor-intensive repairs possible on a modern vehicle. The part itself is only a fraction of the total cost.
| Item | Estimated Cost |
|---|---|
| New OEM Main Harness | $1,000 - $2,500+ (Varies by specific harness) |
| New Aftermarket Harness | Not commonly available for full body applications. |
| Used OEM Harness | $200 - $600 |
| Shop Labor | $1,500 - $3,000+ |
Pro Tip: Labor is the biggest expense. A shop may quote 15-25+ hours for a main body harness replacement, as it requires removing the dashboard, seats, carpets, and most of the interior trim.
Frequently Asked Questions (FAQ)
Can I replace just the damaged section of my wiring harness?
While it's technically possible for a skilled technician to repair individual wires, it is often not recommended for complex, multi-circuit failures. Improper repairs can introduce new problems and resistance, leading to future issues. For significant damage (fire, multiple shorts, rodent damage), replacement is the only reliable solution.
Why did my car get declared a 'total loss' for a wiring harness?
Because the labor to replace a main body harness is so extensive (often 20-50+ hours), the repair cost can easily exceed the value of the vehicle, especially after a collision. Insurance companies will often write the vehicle off as a total loss in these situations.
Is a wiring harness issue covered under warranty?
Yes, a faulty wiring harness that is the result of a manufacturing defect would be covered under Toyota's basic warranty (36 months/36,000 miles). However, damage caused by external factors like rodents, accidents, or improper installation of aftermarket accessories would not be covered.
My Prius won't start and the dash is flashing. Is it the wiring harness?
While it's possible, you should first check the 12-volt auxiliary battery. Many symptoms of a major electrical failure on a modern Prius, including a 'Hybrid System Malfunction' light, can be caused by a weak or dead 12V battery. Always test or replace the 12V battery before assuming a more complex and expensive failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 82113-47590 82183-47270 82212-47060 89981-47R81
Varies significantly based on vehicle configuration (FWD/AWD, trim level, and installed options).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
