2022-2024 Ford Maverick Brake Pedal: Jerky Hybrid Brakes and Clicking Noises Explained

Known Issues for 2022-2024 Ford Maverick Brake Systems

While the Maverick has been a popular truck, owners have reported some specific issues related to the brake pedal feel and noise. These problems are often specific to the powertrain (Hybrid vs. EcoBoost).

Grabby or Jerky Brakes on Hybrid Models

The most widely discussed issue affects the 2.5L Hybrid models. Owners report that at low speeds (typically below 6 mph), the brake pedal can feel unresponsive at first, and then suddenly engage, causing the truck to stop abruptly. This jerky or "grabby" sensation is often accompanied by a clunking sound from under the hood. This behavior is most common in stop-and-go traffic or when pulling into a parking space.

This problem is not a failure of the brake pedal itself, but rather the software that controls the transition between the regenerative braking system and the conventional hydraulic brakes. Ford acknowledged the issue and released Technical Service Bulletin (TSB) 22-2493 in late 2022, which involved a software update for the anti-lock brake system module. 🎬 Watch: A breakdown of the TSB 22-2493 software update. However, many owners reported that while the update reduced the severity, it did not always eliminate the problem entirely.

Audible Clicking or Popping Noise from Pedal

Separate from the Hybrid's braking feel, some owners of both Hybrid and EcoBoost models have reported an audible 'click' or 'snap' noise when applying or releasing the brake pedal. This is often a mechanical noise coming from the pedal assembly or the Electronic Brake Booster (EBB) under the dash. In many cases, one or two clicks are considered normal operation as valves in the EBB activate. However, if the noise is loud, repetitive (3 or more clicks per pedal press), or sounds like a clunk, it may indicate an issue with the EBB that could require dealer service.

Symptoms of a Failing Brake Pedal Assembly

A problem with the brake pedal assembly usually manifests as an electrical issue due to a faulty switch or sensor, rather than a mechanical failure of the pedal itself.

• Brake Lights Don't Work or Stay On: The most common symptom of a bad brake light switch. If the switch fails in the open position, the lights won't come on. If it fails in the closed position, they will stay on and drain your battery.
🎬 See: Common symptoms of a failing brake light switch.
• Cannot Shift Out of Park: The brake pedal must be pressed to activate the shift interlock solenoid, which allows the gear selector to move out of Park. A faulty switch won't send this signal.
• Cruise Control Won't Engage: As a safety feature, cruise control will not activate if the system thinks the brake pedal is being pressed. A bad switch can send a constant "braking" signal.
• ABS or Traction Control Warning Lights: A faulty pedal position sensor can send erratic data to the vehicle's main computer, potentially triggering warning lights on the dashboard.

Buying a Used 2022-2024 Maverick Brake Pedal

A used OEM brake pedal assembly is an excellent, cost-effective alternative to an expensive new part. Because the pedal itself is a simple, durable lever, failure is rare. Issues typically arise from the attached electronic sensors, which are included with a used assembly. Here’s what to look for:

Step 1: Confirm Your Powertrain and Part Number

This is the most critical step. Determine if your Maverick is a 2.5L Hybrid or a 2.0L EcoBoost. Find the engineering number printed on a sticker on your original brake pedal assembly. It will likely start with NX6C-2D094- followed by two letters (e.g., KB). Match this number exactly. A used part from a 2024 Maverick Hybrid was listed with part number NX6C-2D094-KB.

Step 2: Physical Inspection Checklist

• Check the Connectors: Carefully inspect all electrical connectors on the assembly. Ensure they are not cracked, broken, or have bent pins. The wiring pigtail should be clean and undamaged.
• Inspect the Pivot Point: Check the main pivot bushing for excessive wear or play. It should move smoothly without significant looseness.
• Verify the Return Spring: Make sure the return spring is present, intact, and has good tension. It should pull the pedal back to its resting position firmly.
• Look for Cracks: Inspect the metal bracket and the pedal arm for any signs of stress fractures or cracks, which could indicate the donor vehicle was in a major collision.

Replacement Information

Replacing the brake pedal assembly is a moderately difficult job, mostly due to the awkward position required to work under the dashboard.

• Difficulty Rating: 3 out of 5
• Estimated Time: 1-1.5 hours
• Process Overview: The job typically involves disconnecting the battery, removing the lower dash trim panel for access, unplugging the electrical connectors from the pedal sensors, removing the nuts that secure the pedal bracket to the firewall, and detaching the pedal from the brake booster pushrod. Installation is the reverse of removal.

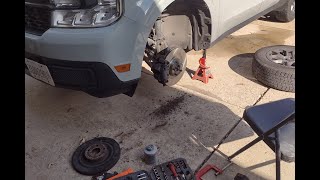

🎬 Watch: How to activate brake service mode for repairs.

Cost Comparison

Frequently Asked Questions (FAQ)

OEM Part Numbers and Specifications

The brake pedal assembly is the complete unit including the pedal, bracket, and sensors. The part number is typically found on a sticker on the bracket.

• Brake Pedal Assembly (Hybrid): NX6C-2D094-KB
• Brake Pedal Assembly (EcoBoost/Shared with Bronco Sport): NX6C-2D094-BA

Note: Part numbers may vary based on model year and specific options. Always verify the number on your original part. The part number GL3T-9G854-8A is for a different vehicle (likely an F-150) and LX61-9F836-AB is an accelerator pedal part number.
