1998-2000 Lexus LS400 Rear Bumper Impact Bar: Damage, Rust, and Replacement
This guide covers the common failure points, inspection tips for used parts, and the replacement process for the rear bumper reinforcement on the 1998-2000 Lexus LS400.
- A bent or damaged impact bar must always be replaced, never repaired, to maintain vehicle safety.
- When buying used, prioritize a straight bar with no bends and check for deep, structural rust, especially at the mounting points.
- The new OEM part is discontinued, making a quality used OEM part the best option for fit and safety.
- Replacement is a feasible DIY job, with the main task being the removal of the plastic bumper cover to access the bar.
Symptoms of a Damaged Bumper Impact Bar
Unlike electronic or mechanical parts, a bumper impact bar doesn't have traditional failure symptoms like noises or warning lights. Failure is almost always the result of physical damage or corrosion.
Visible Damage After an Impact
The most obvious sign of a failed impact bar is damage following a rear-end collision. Even a minor impact that only appears to scuff the plastic bumper cover can be enough to bend, dent, or crush the reinforcement bar underneath. If the plastic cover is cracked, pushed in, or misaligned, it is almost certain the impact bar has sustained damage and requires inspection.
Loose or Rattling Bumper Cover
If the impact bar is broken, or if its mounting points have been bent or torn, it can no longer properly support the plastic bumper cover. This can cause the bumper cover to feel loose, shake while driving, or create rattling noises over bumps. The gaps between the bumper cover and the taillights or quarter panels may become uneven.
Visible Rust and Corrosion
On older vehicles, especially those from regions where road salt is used in winter, the impact bar can suffer from severe rust. While some surface rust is cosmetic, deep, flaking, or pitting corrosion compromises the structural integrity of the steel. A heavily rusted bar will not absorb impact as designed and can even break apart on its own or fail to provide adequate protection in a crash.
Warning: Never attempt to repair a bent, dented, or crushed bumper impact bar. Once the metal has been deformed, its structural integrity is permanently compromised. It must be replaced to ensure proper safety performance.
Buying a Used 1998-2000 LS400 Bumper Impact Bar
Since Lexus has discontinued the new OEM part (52023-50030), a quality used OEM part is the best and most common replacement option. Here’s what to inspect to ensure you get a good one:
- Check for Straightness: Lay the bar on a flat surface. It should sit flush with no wobbling. Look down its entire length from each end to spot any subtle bends or twists. Even a slight bend means it has been in an accident and should be rejected.
- Inspect Mounting Points: The areas where the bar bolts to the car are critical. Ensure these plates are perfectly flat and the bolt holes are round, not oval or torn. Any damage here indicates the bar was ripped from a vehicle during a severe impact.
- Evaluate Rust Carefully: A light, uniform coating of surface rust is typical for a used part and is not a major concern. It can be easily removed with a wire brush and treated with a rust-inhibiting paint before installation. However, you must avoid any bar with deep, pitting rust, flaking metal, or corrosion that has eaten through the steel, especially around welds and mounting points. Use a screwdriver to gently poke any suspect areas; if it's soft or flakes away in chunks, the part is junk.
- Confirm Compatibility: This part is specific to the 1998-2000 Lexus LS400 (UCF20 chassis facelift). A bar from an earlier 1995-1997 model may not fit correctly. Verify the part is from the correct year range.
Pro Tip: A straight, rust-free used OEM impact bar is often superior to a new aftermarket part. Used OEM parts are made from the original factory tooling with the correct grade of steel, ensuring a perfect fit and proper crash performance, which can be uncertain with cheaper aftermarket alternatives.
Known Issues, Recalls, and TSBs
There are no recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) specifically related to the rear bumper impact bar for the 1998-2000 Lexus LS400. Any issues with this part are related to collision damage or age-related corrosion rather than a manufacturing defect.
Installation Guide
Replacing the rear bumper impact bar is a straightforward process that can be done by a DIY mechanic with basic tools. The main task is removing the plastic bumper cover to gain access.

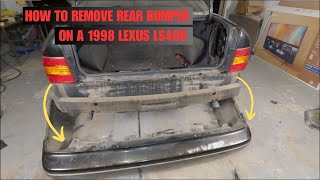

🎬 Watch: Step-by-step guide to removing the rear bumper cover.- Remove Trunk Interior Trim: To access the upper bumper mounting nuts, you will need to remove some of the plastic trim and carpeting inside the trunk area.
- Unfasten Bumper Cover: The bumper cover is held on by a series of bolts, nuts, and clips. There are typically fasteners in the wheel wells (a 4mm Allen key and 10mm nut may be needed), several clips along the bottom edge, and bolts inside the trunk.
- Remove Bumper Cover: Once all fasteners are removed, carefully pull the bumper cover rearward and away from the vehicle. It may be helpful to have a second person to avoid scratching the paint.
- Unbolt the Impact Bar: The steel impact bar is held to the frame rails with several large bolts (typically four or six). Remove these bolts and the old impact bar. If the bar is severely damaged from an accident, you may need to cut it off to access the bolts.
- Install the New Bar: Position the replacement impact bar and hand-tighten the bolts. Once all bolts are started, torque them to the manufacturer's specification.
- Reinstall Bumper Cover: Re-install the plastic bumper cover, ensuring all clips and fasteners are secured correctly. Reinstall the trunk trim.
Cost of Replacement
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Lexus) | Discontinued |
| New Aftermarket | $150 - $460 (Varies from basic steel to custom 'bash bars') |
| Used OEM | $75 - $150 |
| Shop Labor | $200 - $400 (2-3 hours) |
Frequently Asked Questions
Can I drive my car without a rear bumper impact bar?
While the car is mechanically operable without the impact bar, it is strongly discouraged. The bar is a critical safety component. Without it, a minor rear-end collision could cause thousands of dollars in structural damage to the unibody, potentially totaling the vehicle. It is unsafe and not recommended.
My plastic bumper cover is fine, but I was rear-ended. Do I still need to check the impact bar?
Yes, absolutely. Modern plastic bumper covers are flexible and can absorb a minor impact and return to their original shape, showing little to no damage. However, the force was still transferred to the steel reinforcement bar underneath, which may have bent. It is essential to remove the cover and inspect the impact bar after any collision.
Is surface rust on a used impact bar a problem?
No, light surface rust is purely cosmetic and very common on used steel parts. It can be easily cleaned off with a wire wheel or sandpaper. For best results, you should treat the cleaned bar with a rust-inhibiting primer and a coat of black paint before installation to protect it for years to come.
Will an impact bar from a 1997 LS400 fit my 1999 LS400?
No, the 1998-2000 LS400 was a mid-generation facelift with different bumper styling. While they may look similar, mounting points and dimensions can vary. You should only use a rear impact bar specifically from a 1998, 1999, or 2000 LS400 to ensure proper fit and safety.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5202350030
Material: Steel. Weight: Approximately 20.10 Pounds.
