2007-2012 Mazda CX-7 Bumper Impact Bar: A Guide to Damage, Rust, and Replacement
This guide covers how to inspect, replace, and understand the critical safety role of the front and rear bumper impact bars for the 2007-2012 Mazda CX-7.
- The bumper impact bar is a one-time-use safety part; if bent, cracked, or heavily rusted, it MUST be replaced, not repaired.
- When buying a used bar, inspect it meticulously for any bends, kinks, or deep rust. A straight, rust-free used OEM part is a safe and cost-effective option.
- A critical recall (NHTSA #16V593000) exists for the 2007-2012 CX-7 concerning front lower control arm corrosion that can cause a loss of steering and must be checked.
- Replacement is a feasible DIY job for those comfortable removing the front or rear bumper cover, with a difficulty of 3 out of 5.
Symptoms of a Damaged Bumper Impact Bar
Because the impact bar is a structural component hidden behind the plastic bumper cover, it has no electrical connections and will not trigger any dashboard warning lights or diagnostic trouble codes. Failure is always due to physical damage from an impact or weakening from corrosion. Symptoms are almost entirely visual.
Visible Damage After an Impact
Even a low-speed collision can damage the impact bar. Look for these signs:
- Misaligned Bumper Cover: If the plastic bumper cover appears crooked, sags, or has uneven gaps where it meets the fenders or headlights, the underlying impact bar or its mounting brackets are likely bent.
- Cracked or Deformed Bumper Cover: While the plastic cover is designed to flex, a significant impact that cracks or deforms it suggests the metal bar behind it is also damaged.
- Visible Bends or Kinks: In some cases, damage to the bumper cover may be severe enough to expose the impact bar itself. Any visible bends, crushing, or kinks mean the bar is compromised and must be replaced.
Corrosion and Rust
Mazdas from this era are known to have issues with rust, especially in regions that use road salt in the winter. While some surface rust on a steel impact bar is normal, severe corrosion is a major safety concern.
- Flaking or Pitting: Deep, flaking rust, particularly around welds and mounting points, significantly weakens the metal and its ability to absorb an impact.
- Rust-Through: Any holes caused by rust mean the bar has lost its structural integrity and is no longer safe.
Buying a Used 2007-2012 Mazda CX-7 Bumper Impact Bar
A used OEM impact bar is an excellent, cost-effective choice, as long as it is inspected carefully. An undamaged, original factory part will offer superior fit and safety performance compared to a cheap aftermarket alternative.
Inspection Checklist for a Used Bar
Before purchasing a used bumper reinforcement, perform a thorough inspection:
- Check for Straightness: Lay the bar on a flat surface to check for any bending or twisting. Sight down its length from both ends.
- Inspect for Damage: Look for any dents, kinks, or signs of being crushed. Even minor damage means the part's ability to absorb energy has been compromised.
- Examine Welds and Mounts: Check all welds for cracks. Ensure the mounting holes are round and not stretched or deformed, which would indicate it was stressed in an accident.
- Assess Corrosion: Minor surface rust can be cleaned and painted. Avoid any bar with deep, flaking rust or holes, as its strength is compromised.
- Avoid Repaired Bars: Never buy a bar that shows signs of being heated, re-welded, or bent back into shape. These repairs are unsafe and do not restore the part's engineered crash properties.
Known Issues, Recalls, and TSBs
While there are no specific recalls or Technical Service Bulletins (TSBs) for the bumper impact bar itself on the 2007-2012 Mazda CX-7, owners should be aware of related issues.
CRITICAL RECALL: Front Lower Control Arm Corrosion (NHTSA #16V593000): Mazda recalled 190,102 CX-7 vehicles from 2007-2012 because water, especially in salt-belt states, can enter the front suspension ball joint fittings. This can cause severe corrosion, leading to the ball joint separating from the lower control arm. A separation would cause an immediate and severe loss of steering control. The fix involves dealers replacing both front lower control arms free of charge. Anyone working on or owning one of these vehicles should ensure this recall has been performed.
Forum discussions among owners frequently mention rust as a general concern for this generation of Mazda vehicles, reinforcing the need to inspect structural parts like the impact bar for corrosion.
Replacement Overview and Difficulty
Replacing the bumper impact bar is a feasible DIY job for someone with basic mechanical skills and tools. The main challenge is carefully removing the plastic bumper cover without breaking any clips.
🎬 Watch this video to see the full bumper removal process- Process: The general steps involve removing numerous clips and screws in the wheel wells, under the bumper, and under the hood to detach the bumper cover. Once the cover is off, the impact bar is held to the frame rails by several large bolts (typically 14mm for the front, 17mm for the rear). The old bar is unbolted and the new one is bolted in its place. 🎬 Watch: Step-by-step front bumper impact bar removal and replacement
- Tools Needed: A basic ratchet set with sockets (8mm, 10mm, 14mm, 17mm), screwdrivers, and a clip removal tool are required.
- Difficulty: 3 out of 5.
- Estimated Time: 1.5 to 2.5 hours.
Cost of a 2007-2012 Mazda CX-7 Bumper Impact Bar
| Part Type | Estimated Cost |
|---|---|
| New OEM | $290 - $420 |
| New Aftermarket | $80 - $220 |
| Used OEM | $75 - $200 |
| Shop Labor | $150 - $300 |
Frequently Asked Questions (FAQ)
Can I drive with a damaged bumper impact bar?
While the vehicle will still drive, it is not recommended. A damaged or missing impact bar severely compromises the vehicle's crash protection system, increasing the risk of serious damage and injury in a subsequent collision.
Is the front impact bar the same as the rear one?
No. The front and rear bumper impact bars are different parts with unique shapes, sizes, and mounting points. They are not interchangeable. The front part numbers include EG2150260A, while the rear is EH1450260A.
🎬 See this guide for replacing the rear bumper reinforcement barDoes a cheap aftermarket impact bar work just as well?
Not always. Aftermarket bars may use different materials or construction methods that do not match the original's strength and energy absorption characteristics. For a critical safety component, a straight, undamaged used OEM part is often a safer choice than a new, low-cost aftermarket part.
Do I need to get the car aligned after replacing a bumper impact bar?
Typically, no. Replacing the impact bar itself does not affect suspension alignment. However, if the bar was damaged in a collision, it is wise to have the vehicle's frame and alignment checked by a professional to ensure there is no other hidden damage.
Helpful Videos
Technical Specifications

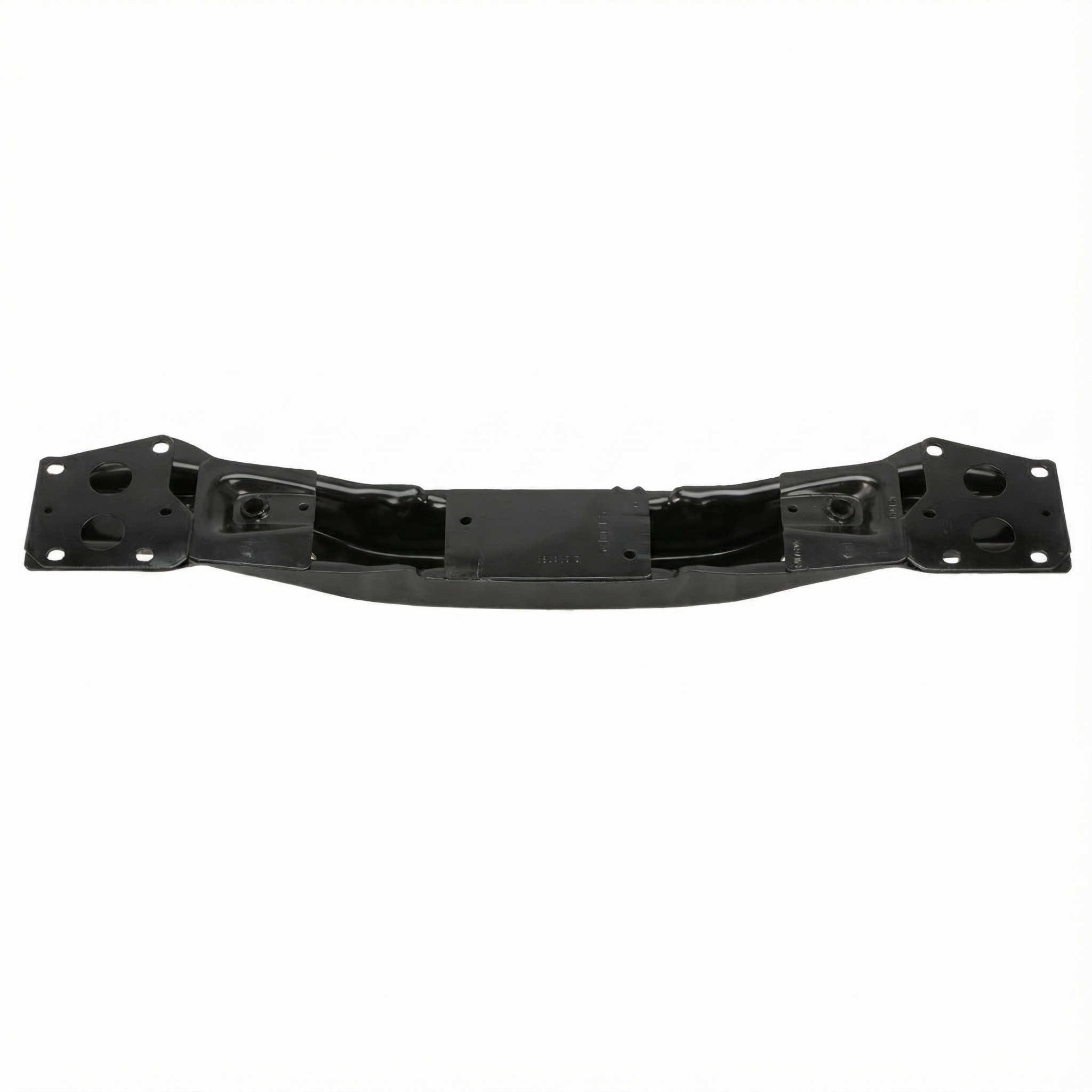

OEM Part Numbers: EG2150260A (Front) EH1450260A (Rear)
Material: Steel. The front bar is held by three 14mm bolts on each side. The rear bar is held by four 17mm nuts on each side.
