2007-2013 Mazda3 Sedan Bumper Impact Bar: A Buyer's and DIY Guide
This guide details how to inspect, verify, and replace the front bumper impact bar for your 2007-2013 Mazda3 Sedan, with a focus on avoiding common compatibility mistakes.
- This impact bar is strictly for 2007-2013 Mazda3 Sedan models and will NOT fit the Hatchback version.
- When buying a used part, the most important checks are for straightness and for deep, structural rust, especially at the mounting points.
- A damaged impact bar severely compromises the vehicle's safety and ability to withstand another frontal impact.
- Replacement is a DIY-friendly job, with the main task being the removal and reinstallation of the plastic bumper cover.
Symptoms of a Damaged Bumper Impact Bar
Unlike electrical components, a bumper impact bar doesn't fail with age; it is damaged by physical impact. The symptoms are almost always visual and can range from obvious to subtle.
- Visible Deformation: The most obvious sign of failure is a bent, cracked, or crushed bar. This is a clear indication that the part has been compromised in a collision and can no longer provide adequate protection.
- Poor Bumper Cover Fitment: If the plastic bumper cover is sagging, has uneven gaps with the fenders or headlights, or won't stay clipped in, it could be because the underlying impact bar is bent and pushing the cover out of alignment.
- Severe Rust and Corrosion: While surface rust is common on used parts, deep, flaking rust compromises the structural integrity of the steel. This is especially critical at the mounting points where the bar bolts to the frame.
Warning: This part only fits 2007-2013 Mazda3 Sedan models. It is not compatible with Hatchback models, which use a different part.
Buying a Used Bumper Impact Bar: What to Check
Purchasing a used OEM impact bar is an excellent way to save money while ensuring a perfect fit. However, a thorough inspection is crucial to ensure you're getting a safe and effective part.
Key Inspection Points:
- Check for Straightness: Lay the bar on a flat surface to check for any warping or twisting. Look down its length from both ends to spot subtle bends that might not be obvious at first glance. Even a slight bend can cause significant issues with bumper cover alignment.
- Inspect Mounting Points: The areas where the bar bolts to the frame are critical. Ensure the bolt holes are round and not elongated, cracked, or stressed. Any damage here indicates the bar was subjected to significant force.
- Examine for Hidden Cracks: Pay close attention to the welds and corners. Look for hairline cracks in the metal or paint, which can indicate stress from an impact.
- Assess Rust Level: Differentiate between minor surface rust, which can be easily cleaned and painted, and deep, structural rust. If the metal is flaking or feels soft when probed with a screwdriver, the part is unsafe and should be rejected.
- Why Used OEM is Often Better: A recycled OEM impact bar was manufactured by Mazda to meet specific crash safety standards. Many new aftermarket bars are made from thinner gauge steel or may have slight dimensional inaccuracies, leading to installation and fitment problems. A straight, rust-free used OEM part is often superior to a cheap new aftermarket alternative.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) issued by Mazda for the front bumper impact bar on the 2007-2013 Mazda3. Most issues with this part are related to collision damage or, in some regions, rust due to age and road salt exposure.
Cost of Replacement
The cost to replace a bumper impact bar can vary significantly based on the parts source and labor rates.
| Part Source | Estimated Cost |
|---|---|
| New OEM | $200 - $260 |
| New Aftermarket | $110 - $190 |
| Used OEM | $80 - $175 |
| Shop Labor | $150 - $300 |
Installation Guide and Difficulty
Replacing the front bumper impact bar is a straightforward process for a DIY mechanic with basic tools. The primary task is the removal and reinstallation of the front bumper cover.
- Difficulty Rating: 2 out of 5
- Estimated Time: 1.5 - 2.5 hours
- Tools Required: Flathead screwdriver, Phillips screwdriver, 8mm and 10mm sockets, ratchet, trim removal tool.
Simplified Steps:
- Remove Bumper Cover Fasteners: Open the hood and remove the plastic clips and screws securing the top of the bumper cover.
- Wheel Well Fasteners: Remove the screws and clips securing the bumper cover to the fender liners in both wheel wells.
- Underside Fasteners: Remove the bolts and clips holding the bottom of the bumper cover to the splash shield.

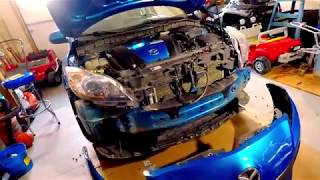

- Detach Bumper Cover: Carefully pull the sides of the bumper cover away from the vehicle to release them from the retaining brackets under the fenders. With a helper, pull the entire cover forward. 🎬 Watch this quick video on removing the 2013 bumper cover. Disconnect any fog light or sensor wiring.
- Remove Impact Bar: The impact bar is now exposed. Unbolt it from the two frame rails. It is typically held on by two or three large bolts on each side.
- Installation: Bolt the new impact bar in place, ensuring it is properly seated. Reinstall the bumper cover by reversing the removal steps. 🎬 See a detailed walkthrough for replacing the front bumper cover.
Pro Tip: When removing the bumper cover, lay down a blanket or cardboard to prevent scratching the paint.
Frequently Asked Questions (FAQ)
Can I drive my car with a damaged bumper impact bar?
While the car may be mechanically drivable, it is not recommended. A damaged impact bar offers significantly reduced protection in a subsequent collision, meaning a minor impact could cause extensive and expensive damage to the radiator, A/C system, and frame.
Will a bumper impact bar from a Mazda3 Hatchback fit my Sedan?
No. The Sedan and Hatchback models from 2007-2013 use different front bumper impact bars. You must purchase a part that is specifically listed for the Sedan model to ensure proper fitment.
Is surface rust on a used impact bar a major problem?
Minor surface rust on the main body of the bar is generally not a safety concern and can be treated with a wire brush and rust-inhibiting paint before installation. However, heavy, flaking rust, especially around the mounting points, compromises the part's strength and should be avoided.
Do I need to replace the foam absorber with the impact bar?
The foam absorber sits between the impact bar and the plastic bumper cover and helps absorb the energy of very low-speed impacts. If it is cracked, compressed, or missing, it should be replaced to ensure the bumper system functions as designed.
Helpful Videos
Technical Specifications
OEM Part Numbers: BBM450260A BBM450260D BR7T50260
Material: High-strength steel
