2018-2025 Lexus LS500 Drive Plate & Flexplate: Diagnosing Noises and Vibrations
A guide to understanding the LS500's engine-to-transmission link, identifying failure symptoms, and making smart choices when buying a used part.
- The part is a flexplate (officially a 'Drive Plate'), not a traditional clutch flywheel, as the LS500 is automatic-only.
- Failure is uncommon, but symptoms include rattling/knocking noises that can be mistaken for severe engine problems.
- Replacement is a major, transmission-out job, making labor the most significant part of the repair cost.
- When buying a used part, meticulously inspect for cracks around the bolt holes and check for damaged ring gear teeth.
Is it a Flywheel or a Flexplate?
One of the first points of confusion for the 2018-2025 Lexus LS500 is the term "flywheel." Because this vehicle was only sold with a 10-speed automatic transmission, it does not have a clutch or a traditional heavy flywheel like a manual transmission car. It uses a flexplate, which Lexus parts diagrams refer to as a "Drive Plate" or "Flywheel Sub-Assembly." This article will use the common terms "flexplate" and "drive plate" interchangeably. This part is specific to the non-hybrid LS500 and will not fit the LS500h hybrid model.
Symptoms of a Failing Drive Plate
Failure of the drive plate on the Lexus LS500 is not a common issue, but when it does occur, the symptoms can be alarming and are often misdiagnosed. The sounds can be mistaken for serious engine problems, like a rod knock.

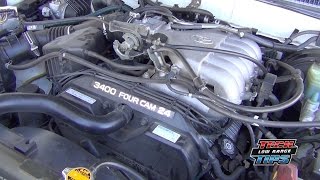

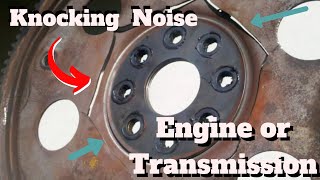

🎬 Watch: How a broken flexplate can mimic engine knocking sounds.- Knocking or Rattling Noises: The most common symptom is a metallic knocking, rattling, or grinding sound coming from the area between the engine and transmission. This noise is often most noticeable at idle and may change or disappear as engine RPMs increase. 🎬 Listen to the distinct sound of a cracked flexplate here. It can also be prominent when the engine is first started or shut off.
- Vibrations: A cracked or warped flexplate can throw the engine's rotating assembly out of balance, causing a noticeable vibration that increases with engine speed. This can be felt throughout the car.
- Starter and Starting Issues: In severe cases, teeth on the outer ring gear of the flexplate can break off. This can cause a grinding noise when trying to start the engine, or the starter may spin freely without turning the engine over, resulting in a no-start condition.
Pro Tip: A noise from a cracked flexplate can sound very similar to a catastrophic engine failure like a spun bearing or rod knock. A key diagnostic step is to unbolt the torque converter from the flexplate and slide it back slightly. If the noise disappears when the engine is started with the converter disconnected, the flexplate is the likely culprit.
🎬 See this video for a guide on diagnosing a broken flexplate.Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Lexus or the National Highway Traffic Safety Administration (NHTSA) related to flexplate or drive plate failure on the 2018-2025 LS500. Recalls for this vehicle generation have primarily focused on issues like fuel pumps, run-flat tires, and seat sensors. The absence of specific TSBs suggests that drive plate failure is an isolated, rather than a systemic, problem for these vehicles.
Buying a Used Drive Plate: What to Look For
Because the labor to replace a drive plate is so expensive, a high-quality used OEM part is an excellent value. However, careful inspection is critical before installation.
Physical Inspection
- Check for Cracks: This is the most important check. Carefully inspect the entire surface of the plate for hairline cracks. Pay close attention to the area around the central mounting holes where it bolts to the crankshaft and the areas where the plate transitions to the outer ring gear.
- Inspect Ring Gear Teeth: Examine all the teeth on the starter ring gear. Look for any that are chipped, broken, or excessively worn down. Spin the plate and check the entire circumference.
- Check for Warping: Lay the plate on a known flat surface. It should sit perfectly flat. Use a straightedge across the surface to check for any bending or warping, which can cause vibrations and stress.
- Examine Bolt Holes: Look at the torque converter mounting holes and the crankshaft bolt holes. They should be perfectly round and free of any elongation or damage.
Compatibility and Red Flags
- Verify Part Number: The only way to guarantee fitment is to match the OEM part number, 32101-50030.
- Avoid Damaged Parts: Never purchase a drive plate that is bent, rusted, or shows any signs of heat discoloration (bluing), as this indicates it has been under extreme stress.
- Mileage Matters: Opt for a part from a lower-mileage vehicle whenever possible. While these parts are durable, they are subject to millions of fatigue cycles.
Replacement Cost & Difficulty
Replacing the drive plate on a Lexus LS500 is a major repair. The transmission must be completely removed from the vehicle to access the plate, which is bolted to the back of the engine's crankshaft. This is not a task for a beginner or a typical DIY mechanic.
Warning: The flexplate bolts that attach the plate to the crankshaft are typically torque-to-yield and should be replaced with new OEM bolts whenever the plate is removed. Reusing old bolts can lead to them backing out or breaking, causing catastrophic damage.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Drive Plate | $330 - $460 |
| New Aftermarket Drive Plate | $100 - $230 (Availability may be limited) |
| Used OEM Drive Plate | $75 - $150 |
| Shop Labor | $1,200 - $2,500 (8-10 hours) |
Frequently Asked Questions
Can I drive with a cracked or failing flexplate?
It is not recommended. While the car may be drivable in the early stages of failure (with noise or vibration), a complete failure can be dangerous. If the plate breaks apart at speed, it can cause a sudden loss of power and potentially damage the transmission housing or engine block, leaving you stranded.
What causes a flexplate to fail?
Failures are typically due to metal fatigue over time. However, improper installation, such as missing dowel pins between the engine and transmission, can cause misalignment that puts constant stress on the plate, leading to premature cracking. Severe engine or transmission vibrations can also contribute to failure.
Is this part the same on the Lexus LS500h hybrid?
No. The hybrid model (LS500h) has a different powertrain and does not use this specific drive plate. This part is only for the non-hybrid LS500 with the 3.5L twin-turbo V6 engine.
Do I need to get my car reprogrammed after replacing the drive plate?
No. The drive plate is a purely mechanical part. No software or electronic calibration is required after replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: 32101-50030 3210150030
Fits 2018-2025 Lexus LS500 models with 3.5L Twin-Turbo V6 (V35A-FTS engine) and 10-speed automatic transmission. Does not fit LS500h hybrid models.
