2016-2020 Jaguar XF Coil Spring: Failure Symptoms, Compatibility, and Replacement Costs

Symptoms of a Failing Jaguar XF Coil Spring

While coil springs are designed to last a long time, they can fail due to factors like corrosion, fatigue from high mileage, or damage from hitting large potholes. A failed spring can compromise your vehicle's safety and handling. Here are the most common signs to watch for:

• Uneven or Sagging Ride Height: The most obvious symptom is one corner of the car sitting lower than the others. This indicates a broken or severely weakened spring that can no longer support the vehicle's weight.
• Unusual Noises: Listen for clunking, popping, or creaking sounds, especially when driving over bumps or turning. These noises can be caused by a broken piece of the spring moving around or the broken end making contact with other suspension components.
• Harsh and Bumpy Ride: If the ride suddenly feels much harsher and you feel every imperfection in the road, a spring may have failed. A broken spring cannot properly absorb impacts, transferring those forces into the car's body and cabin.
• Visible Damage: A visual inspection can often confirm the problem. Look for 🎬 Watch: How to identify a broken coil spring on your vehicle a visible crack or a complete break in the spring. These breaks most commonly occur near the very top or bottom of the spring where it sits in its mount. Also, check for heavy rust and flaking of the protective coating, which are signs the spring is weakened and prone to failure.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Searches of the NHTSA database and other public records show no specific recalls for coil spring failure on the 2016-2020 Jaguar XF. However, Jaguar did issue a Technical Service Bulletin (TSB #K353 / #6-293NAS) for some 2016 XF models related to a knocking noise from the rear suspension, which was caused by loose rear shock absorber top mountings. While not a coil spring issue directly, a knocking sound from the suspension should be investigated thoroughly to identify the correct cause, which could be a spring, a shock mount, or another component like a 🎬 See how to fix a Jaguar XF Adaptive Dynamics suspension fault control arm bushing.

Buying a Used 2016-2020 XF Coil Spring: What to Check

Buying a used OEM coil spring is an excellent way to restore your vehicle's original ride and handling characteristics without the high cost of a new dealer part. However, careful inspection is crucial.

• Verify Compatibility: This is the most important step. You need the VIN of the donor vehicle to confirm its specifications (RWD/AWD, suspension type). Springs are often color-coded by Jaguar to denote their specific rate and application. Try to match these color markings if possible. Do not purchase a spring without confirming it came from a vehicle with the exact same drivetrain and suspension as yours.
• Thorough Visual Inspection:
  • Check for Cracks: Carefully inspect the entire length of the spring, paying close attention to the top and bottom coils where breaks are most common. Any crack, no matter how small, means the spring is unusable.
  • Inspect the Coating: Look for areas where the protective coating has chipped or flaked away. Exposed metal is susceptible to rust, which weakens the spring steel. Minor surface rust may be acceptable, but deep, pitting corrosion is a major red flag.
  • Look for Deformation: The spring should be straight and uniform. Any signs of bending or distortion mean the spring has been compromised, possibly in an accident, and should be rejected.
• Why Used OEM is a Smart Choice: A good, used OEM Jaguar spring is often superior to a new, cheap aftermarket part. Aftermarket springs may use a different spring rate, which can lead to an uneven stance, unbalanced handling, or a ride that is too stiff or too soft. A used OEM part ensures you retain the precise ride quality and handling dynamics engineered by Jaguar.
• Mileage and Condition: While lower mileage is generally better, the spring's condition is more important. A spring from a higher-mileage car that lived in a dry, salt-free climate can be in much better shape than a lower-mileage spring from a vehicle used in the rust belt. Focus on the physical inspection.

Cost Comparison for Jaguar XF Coil Spring Replacement

Prices can vary based on location and the specific part number required for your vehicle's configuration. The following is an estimate of costs.

Note: Labor costs can be higher if corrosion makes disassembly difficult. A wheel alignment is required after replacement, adding an additional $100 - $200 to the total cost.

Installation Difficulty

• Difficulty Rating: 4 out of 5
• Estimated Time: 1.5 - 2.5 hours per side
• DIY Feasibility: Not recommended for beginners. This job requires a specialized tool called a spring compressor to safely remove and install the spring. Spring compressors store a massive amount of energy and can be extremely dangerous if they slip or are used incorrectly, potentially causing serious injury. This job is best left to experienced mechanics with the proper equipment.

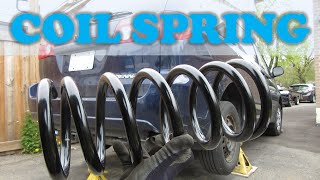

🎬 Watch this walkthrough on how to replace a broken coil spring
