2025-2026 Kia K4 Rear Coil Springs: Torsion Beam vs. Multi-Link Explained

The Most Important Thing to Know: Torsion Beam vs. Multi-Link Suspension

Understanding the difference between these two setups is the single most important step in buying the correct coil springs for your K4.

• Torsion Beam Axle: This is the standard suspension on the LX, LXS, and EX trims. It's a simpler, more cost-effective design where a single beam connects the two rear wheels. The coil springs for this setup are designed specifically for this geometry.
• Multi-Link Independent Suspension: This is the upgraded, performance-oriented suspension found on the GT-Line and GT-Line Turbo trims. Each wheel moves independently, controlled by a series of arms or "links." This provides better handling and a smoother ride, especially on rough roads. These models require a different coil spring designed for this more complex system.

The easiest way to confirm which part you need is to match the OEM part number from your existing spring to the new or used part you are buying.

Symptoms of a Failing Coil Spring

Coil springs are durable, but they can wear out, sag, or break over time due to mileage, corrosion, or harsh road conditions. Here are the most common signs that your K4's rear coil springs may need replacement:

• Vehicle Sagging: The most obvious symptom is a lower ride height in the rear. When parked on a level surface, one or both rear corners of the car may sit noticeably lower than the front.
• Clunking or Popping Noises: Loud clunking, popping, or rattling sounds when driving over bumps, potholes, or turning can indicate a broken or loose spring.
• Excessive Bouncing: If your car feels unusually bouncy and continues to bounce after hitting a bump, the springs are no longer able to properly absorb impacts.
• Uneven Tire Wear: Worn springs can alter the vehicle's alignment, leading to accelerated or uneven wear on the inner or outer edges of the rear tires.
• Poor Handling or Swaying: The vehicle may feel unstable, lean excessively in turns, or sway from side to side, especially at higher speeds or on winding roads.

Buying a Used 2025-2026 K4 Coil Spring: What to Check

A used OEM coil spring can be a great value, especially for a newer vehicle. Because they are designed by Kia for the K4, they will provide the correct ride height and performance, unlike many cheap aftermarket alternatives. Here’s what to inspect before you buy:

1. Confirm the Part Number: This is non-negotiable. Match the part number to your specific trim and suspension type. Part number 55330-GG000 is for the Torsion Beam suspension. Part number 55330-GGAA0 is listed for models with the Multi-Link suspension.
2. Visual Inspection for Cracks: Carefully examine the entire length of the spring, especially at the top and bottom where it sits in the mount (the "pigtail"). Look for any fractures, stress marks, or cracks in the coating and the metal itself. A spring with even a small crack is unsafe and must be discarded.

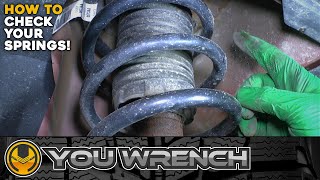

🎬 Watch: How to inspect your coil springs for damage and cracks.
3. Check for Severe Corrosion: Surface rust is common, but you should reject any spring with deep, flaking, or pitted rust. Heavy corrosion weakens the metal and can lead to a sudden failure.
4. Look for Signs of Modification: Never buy a spring that has been heated (to lower it) or cut. Look for discoloration from a torch or grinder marks on the ends. These modifications make the spring unsafe.
5. Compare its Height: If possible, compare the free-standing height of the used spring to your old one (if it isn't broken). A used spring that is significantly shorter has sagged and lost its tension.

Replacement Information

Replacing rear coil springs is a moderately difficult job that requires specific tools and a strong understanding of suspension components. The spring is held under significant tension, and releasing it improperly can cause serious injury.

• Difficulty Rating: 4 out of 5
• Estimated Time: 1.5 - 2.5 hours
• DIY Feasible: Yes, for experienced mechanics with the proper tools.
• Special Tools Required: A quality coil spring compressor is essential for safety. You will also need a floor jack, jack stands, and a full set of metric sockets and wrenches.

Cost Comparison

Prices for 2025-2026 Kia K4 rear coil springs can vary. As this is a new model, aftermarket options may be limited initially.

Known Issues, Recalls, and Service Bulletins

As of early 2026, there are no recalls or technical service bulletins (TSBs) specifically related to the coil springs on the 2025-2026 Kia K4. However, two recalls for the 2025 K4 have been issued for other issues:

• NHTSA Recall 25V548000: Affects a small number of vehicles where connecting rod bolts may have been improperly tightened, potentially causing a loss of drive power.
• NHTSA Recall 26V046: A software error may cause the instrument panel display to fail.

A service action (SA606) was also issued for a small batch of vehicles produced in January 2025 for contaminated windshield washer fluid.

OEM Part Numbers

Always verify the part number with your vehicle's VIN before ordering. The following numbers have been identified for the 2025-2026 Kia K4 rear coil springs:

• 55330-GG000: Fits models with the standard Torsion Beam rear suspension (LX, LXS, EX).
• 55330-GGAA0: Fits models with the Multi-Link rear suspension (GT-Line, GT-Line Turbo).
• 55330-GGAB0: Also listed for rear applications. Compatibility should be confirmed with a VIN.
• 55335GG000: This part number appears to be a typo in some databases and is not a valid coil spring number.
