2023-2025 Colorado & Canyon Center Console: Solving Scratches, Hard Armrests, and Clutter

Common Issues and Solutions for the 2023-2025 Center Console

Unlike the previous generation of these trucks which was known for broken latches, the 2023-2025 Chevrolet Colorado and GMC Canyon console issues are more related to materials, comfort, and organization rather than mechanical failure. Here are the most common complaints and their solutions.

Issue: Hard, Uncomfortable Armrest

Many owners, particularly those with Work Truck (WT) or other lower-level trims, find the standard plastic or lightly padded armrest to be uncomfortably hard, especially during long drives. This can lead to elbow and arm fatigue.

Solution: The easiest and most popular solution is an aftermarket padded armrest cover. These covers are typically made from foam-backed leather, neoprene, or other soft materials and simply slip over the existing console lid. They add a significant layer of cushioning and can also protect the original surface. Installation requires no tools and takes only a few seconds.

Issue: Easily Scratched "Piano Black" Trim

The glossy black trim piece surrounding the gear selector is highly susceptible to fine scratches, fingerprints, and smudges. Even careful use can quickly lead to a hazy, worn appearance, which is a major frustration for owners who want to keep their interior looking new.

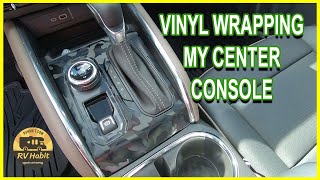

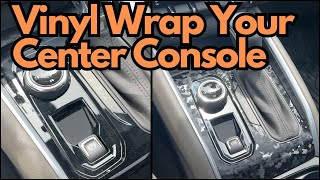

Solution: The best way to protect this area is with a vinyl wrap. Aftermarket companies sell pre-cut vinyl kits in various finishes (like matte black, carbon fiber, or brushed metal) that are applied directly over the glossy plastic. This not only prevents new scratches but also covers up existing ones. The trim piece is very easy to remove for wrapping, as detailed in the replacement section below.

Issue: Disorganized, Deep Storage Bin

The main storage compartment is a deep, open bin. While spacious, it can quickly become a cluttered mess, making it difficult to find smaller items without digging through everything. Aftermarket drop-in trays and organizers are a popular accessory to solve this.

Issue: Unreliable Wireless Charging

For trucks equipped with the optional wireless charging pad (RPO K4C), inconsistent or non-functional charging is a widely reported problem. Phones may charge for a few seconds and then stop, or require very precise placement to work at all. This is a known issue related to the system's design and sensitivity, not a failure of the console compartment itself. Some owners report partial success after dealer-installed software updates.

Buying a Used Console Compartment or Armrest

If your console armrest is damaged, buying a used OEM unit is a cost-effective option. Because these trucks are so new, used parts are likely from low-mileage vehicles. Here’s what to inspect:

• Check the Friction Hinge: Open the armrest lid and ensure it stays put at various angles. It should move smoothly without being too loose or too stiff. This is the primary mechanical function to test.
• Inspect the Surface: Carefully examine the armrest surface for any rips, tears, deep scratches, or stains. For used parts, minor scuffs may be acceptable, but avoid any with significant surface damage.
• Verify Mounting Points: Flip the assembly over and check all plastic mounting tabs and screw holes for cracks or stress marks. A part that was removed carelessly could be damaged.
• Match Options Exactly: While the core console is the same, there are different part numbers for armrests based on trim and color (e.g., black stitching vs. red stitching). Ensure the part you are buying matches your truck's interior trim package.

Replacement Procedure

Replacing components of the center console is generally straightforward and suitable for DIYers.

How to Remove the Shifter Trim Piece (for Vinyl Wrapping)

This process is very simple and requires no tools, though a plastic trim tool can help prevent scratches.

1. Start at the front of the trim piece, near the storage cubby/wireless charger. If you don't have the wireless charger, you can lift the rubber mat out of the way.
2. Grip the edge of the trim piece and pull straight up. It is held in by several clips and will pop loose.
3. Work your way around the piece, gently pulling upward until all clips are released and you can lift the entire panel off.
4. Installation is the reverse of removal. Simply align the clips and press down firmly until it snaps into place.

Armrest Assembly Replacement

Replacing the entire armrest assembly (GM Part 85660817) involves unbolting the old unit and bolting in the new one. While a detailed guide for the 2023+ models is not widely available, the process is typically straightforward, involving the removal of side panels or trim to access the mounting bolts for the upper console structure.

• Difficulty: 2 out of 5
• Estimated Time: 0.5 - 1.0 hours
• DIY Feasible: Yes
