2025-2026 Acura ADX Console Panel: A Guide to Trim Levels and Features

Variant Differences: Why Not All ADX Consoles Are the Same

The single most important factor when replacing a 2025-2026 Acura ADX console panel is ensuring it matches your vehicle's specific trim level and options. Acura uses different console assemblies to accommodate various features. Using the wrong console can result in non-functioning buttons, open electrical connectors, and warning lights.

The 2025 Acura ADX is offered in three main trims: the base ADX, the sporty A-Spec, and the top-tier A-Spec Advance. Here are the key features that affect the console panel configuration:

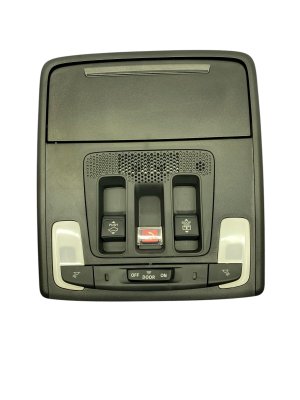

• Sunroof Type: The base ADX comes with a standard one-touch power moonroof. The A-Spec and A-Spec Advance trims feature a larger panoramic moonroof. The overhead controls for these are integrated with the console assembly, and the wiring and switchgear are different.
• Drive Mode Controls: All ADX trims include a Dynamic Control Switch Panel for selecting drive modes, but the A-Spec with Advance Package adds an 'Individual' drive mode, which may be reflected in the switchgear.
• Heated & Ventilated Seats: While all trims have heated front seats, ventilated (cooled) front seats are added on the A-Spec and A-Spec Advance trims. The control buttons for this feature are located on the console.
• USB Ports: The A-Spec trim adds USB-C ports for rear-seat passengers, which are part of the rear console assembly.
• Wireless Charging: A Qi-compatible wireless charging pad is a standard feature on all 2025 ADX trim levels. The specific part number for the charger unit itself is 8A370-T90-A02.

Symptoms of a Failing or Damaged Console Panel

Failure of the console panel is typically related to its integrated electronic components or physical damage, rather than the panel structure itself wearing out.

• Inoperative Wireless Charger: The phone may not charge, or charging may be intermittent. This can be a failure of the charging unit itself (Part No. 8A370-T90-A02).
• Dead USB Ports: One or more USB ports may fail to charge devices or establish a data connection for Apple CarPlay/Android Auto.
• Unresponsive Buttons: Switches for drive modes, heated/ventilated seats, or other functions may become sticky, broken, or electronically unresponsive.
• Cosmetic Damage: Scratches, cracks, peeling finish, or broken mounting tabs are common reasons for replacement, especially from previous owner wear and tear or improper removal.
• Liquid Damage: Spilled drinks are a primary cause of failure for console electronics. This can cause short circuits in the switches, charging pad, or USB ports, often leading to intermittent or complete failure.

Known Issues for the 2025-2026 Acura ADX

While there are no official recalls or Technical Service Bulletins (TSBs) for the console panel itself, owners have reported software-related issues with the infotainment system that rely on the console's hardware.

Infotainment and Apple CarPlay Connectivity Problems

Several owners have reported persistent issues with Apple CarPlay disconnecting, freezing, or failing to connect altogether. Users have noted that text messages and streaming audio apps freeze, and phone call audio can be distorted. While Acura has reportedly identified this as a software issue, the problem directly impacts the user's experience with the console's wireless charger and USB data ports. These symptoms are not caused by a faulty console panel but are an important factor to consider when diagnosing connectivity issues.

Buying a Used 2025-2026 ADX Console Panel: A Checklist

Purchasing a used OEM console panel is an excellent way to save money, but careful inspection is key. Due to the vehicle's newness, most used panels will come from low-mileage salvage vehicles.

1. Verify the Part Number: This is the most critical step. Remove your existing console panel or have a technician do so to find the OEM part number sticker. Match it exactly to the used part you intend to buy.
2. Match All Features: Visually confirm that every button, switch, and port on the used console matches your original. Check for sunroof controls, heated/ventilated seat buttons, and the correct number of USB ports.
3. Inspect for Liquid Damage: Look closely at the seams around buttons and the edges of the wireless charging pad and USB ports. Look for any sticky residue, discoloration, or corrosion on the connectors underneath. Liquid damage is often the cause of hidden electronic failures.
4. Check All Mounting Points: Carefully inspect the underside of the panel for any broken or cracked plastic mounting tabs or clips. A console with broken tabs will not sit securely and may rattle or squeak after installation.
5. Examine Cosmetic Condition: Check for deep scratches, worn-out button graphics, or peeling on the soft-touch surfaces. Pay close attention to high-wear areas like the edges of the cupholders and the armrest.
6. Ask About the Donor Vehicle: If possible, get the VIN of the vehicle the part came from. This can help verify the original trim level and options package.

Recalls and Technical Service Bulletins (TSBs)

As of early 2026, there are no NHTSA safety recalls or manufacturer TSBs specifically related to the center console panel, its switches, or integrated electronic components for the 2025-2026 Acura ADX.

Replacement Difficulty: 2 out of 5

Replacing the center console panel is a manageable DIY project for someone with patience and the right tools. The main challenge is carefully removing trim pieces without breaking plastic clips.

• Estimated Time: 1.5 - 2 hours
• Tools Required: Plastic trim removal tools, Phillips head screwdriver, small socket set.
• General Steps:
  1. Disconnect the negative battery terminal.
  2. Using plastic trim tools, carefully pry up and remove the trim pieces surrounding the console and shifter.
  3. Remove any visible screws holding the console assembly to the floor brackets.
  4. Gently lift the console assembly. Be prepared to disconnect multiple electrical connectors for the switches, charger, and power outlets. These connectors have small release tabs that must be pressed.
  5. Once all connectors are detached, the console can be fully removed from the vehicle.
  6. Installation is the reverse of removal. 🎬 Watch: A helpful walkthrough for removing the console and shifter. Ensure all connectors are securely clipped in before reinstalling screws and trim.

Cost Comparison

Prices for console components can vary significantly. The main console body is the most expensive part, while individual components like the wireless charger or storage trays can be purchased separately.
