2022-2024 Audi e-tron GT Overhead Console: SOS Faults, Lighting Fixes, and Part Numbers
Your guide to diagnosing and replacing the overhead console (Part No. 9J1959551E) in the Audi e-tron GT, including lighting and SOS system issues.
- This guide is for the OVERHEAD console (Part No. 9J1959551E), not the center console with the gear selector.
- The most recent OEM part number is 9J1959551G, which supersedes earlier versions.
- Replacement is a simple plug-and-play job with no programming required.
- A faulty panel can cause an 'SOS System Malfunction' warning, which should be addressed promptly.

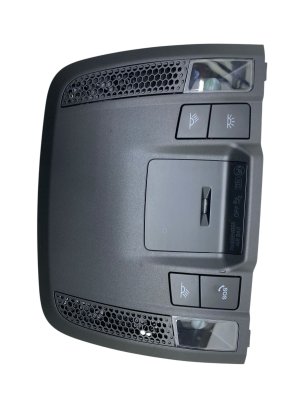

Part Clarification: This guide covers the overhead console panel (part number starting with 9J1959551), located on the ceiling. It is often confused with the center console, which contains the gear selector and media controls. The information here is specific to the overhead unit.
Symptoms of Failure
While widespread failures of this specific panel are not commonly reported, issues with any electronic module are possible. Symptoms of a faulty overhead console would be direct and noticeable:
- Interior Lights Don't Work: The most common symptom would be the failure of the dome or reading lights to turn on, either when a door is opened or when the buttons are pressed.
- SOS System Malfunction Warning: The vehicle's main instrument cluster may display a warning message related to the emergency call system. This indicates a problem with the system's components, which are housed in this panel. This is a serious fault that should be addressed promptly.
- Buttons Are Unresponsive or Stuck: Physical damage or liquid spills can cause the buttons to become sticky, stuck, or completely unresponsive to touch.
- Flickering Lights: Intermittent connections within the panel's circuit board could cause the interior lights to flicker when the vehicle is in motion.
Buying a Used Overhead Console: What to Check
A used OEM overhead console is a cost-effective solution, as aftermarket versions for this vehicle do not exist. Since this is a shared part with the Porsche Taycan, availability is generally good. Here's what to inspect before buying:
- Match the Part Number Exactly: The primary part number is 9J1959551E, which has been updated by Audi to 9J1959551G. While the newer version should be backward compatible, always try to match your original part number, including any letters at the end. The seller should provide a clear photo of the sticker on the back of the unit.
- Inspect for Cosmetic Damage: Look for deep scratches on the lens covers, worn-out button graphics, or cracks in the plastic housing. Since this part is highly visible, you'll want one in good cosmetic condition.
- Check for Intact Mounting Clips: The panel is held in place by several plastic clips. If these are broken, the console will not sit flush against the headliner and may rattle. Ask the seller to confirm all clips are present and undamaged.
- Look for Signs of Liquid Damage: A coffee spill or leaking sunroof can easily damage this component. Look for any sticky residue around the buttons or signs of corrosion on the electrical connector pins.
Important: While there are many recalls for the 2022-2024 Audi e-tron GT, none of them involve the overhead console panel. Major recalls include risks of high-voltage battery short circuits and failures of the passenger airbag sensor. It is critical to have any open recalls addressed by an Audi dealer, but these issues are separate from the overhead console.
Cost Comparison
Replacing the overhead console is significantly cheaper with a used part. Aftermarket options are not available.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $185 - $270 |
| New Aftermarket | Not Available |
| Used OEM | $100 - $150 |
| Shop Labor | $75 - $150 |
Replacement Overview (Difficulty: 2/5)
Replacing the overhead console is a straightforward DIY job that requires care but no special tools other than a plastic trim removal kit.
- Disconnect the Battery: As a precaution when working with any vehicle electronics, disconnect the negative terminal of the 12V battery.
- Gently Pry the Panel Down: Using a plastic pry tool, carefully work around the edges of the overhead console to release the retaining clips. Start from the edge closest to the windshield. 🎬 See this walkthrough for removing a Porsche overhead console Do not use a metal screwdriver, as it will damage the headliner and the console.
- Disconnect the Electrical Connector: Once the console is loose, it will hang by a single wiring harness. Depress the tab on the connector and pull it away from the console.
- Install the New Console: Connect the wiring harness to the new console until it clicks. Align the console with the opening in the headliner and press it firmly into place, ensuring all clips engage.
- Reconnect Battery and Test: Reconnect the battery and test all functions of the new console, including all lights and the SOS button (without activating a call).
Frequently Asked Questions (FAQ)
Do I need to program the car after replacing the overhead console?
No. This part is a simple switch assembly and does not require any special programming or calibration after installation. It is a plug-and-play component.
🎬 Watch: How to perform a soft reset on your AudiIs the Audi e-tron GT overhead console the same as the one in the Porsche Taycan?
Yes, the e-tron GT and Porsche Taycan are built on the same platform and share many interior components, including this overhead console. You may find used parts listed for either vehicle, but always verify the part number (9J1959551E/G) matches.
My car shows an 'SOS System Malfunction' warning. Is this panel the cause?
It could be. The SOS button and related electronics are in this panel. A failure here, a loose connection, or a fault in another part of the system could trigger the warning. If a replacement panel doesn't fix the issue, a diagnostic scan by a qualified technician is needed.
What is the other part number, 5Q0951172A?
Part number 5Q0951172A is an anti-theft alarm sensor. While it is often located in the general vicinity of the overhead console on many VW and Audi vehicles, it is a separate component and not part of the main console assembly itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9J1959551E 9J1959551G 9J1-959-551-E-TBN 9J1-959-551-G-TBN
Houses controls for interior dome/reading lights and the SOS emergency call system. Shared part with the Porsche Taycan.
