2016-2025 Explorer, Aviator & PIU Overhead Console: Fixing Broken Switches & Sunroof Controls

Understanding the Overhead Console in Your Explorer, Aviator, or Police Interceptor Utility

Before diagnosing or replacing your overhead console, it's critical to understand that there are several major variations. Choosing the wrong one will lead to compatibility issues. The most important difference is the vehicle's generation.

Key Variations to Identify

• Vehicle Generation:
  • 5th Gen: 2016-2019 Ford Explorer & Police Interceptor Utility
  • 6th Gen: 2020-2025 Ford Explorer, 2020-2025 Lincoln Aviator, & 2020-2025 Police Interceptor Utility
• Sunroof / Moonroof: Consoles are different for vehicles with and without a sunroof. A sunroof-equipped model will have one or two extra switches for the glass and the sunshade.
• Police Interceptor Utility (PIU): These models often lack a sunroof to allow for overhead equipment mounting. Their consoles may have blank plates or unique switches (like a liftgate release) not found on civilian models.
• Lincoln Aviator: While functionally similar to the Explorer, the Aviator's console will have premium finishes, different color options, and potentially different switchgear to match its luxury interior.

Common Symptoms of a Failing Overhead Console

Failures in the overhead console are almost always electrical or mechanical. Here are the most common signs that your console needs attention.

1. Unresponsive or Sticking Buttons

One of the most frequent issues, especially on 2020 and newer models, is the failure of individual switches. You might find the sunroof or sunshade button works only intermittently or requires excessive force to activate. Because the switches are integrated into the console's circuit board, a single failed button typically requires replacing the entire console assembly.

2. Flickering or Dead Interior Lights

If your map lights or dome lights flicker or won't turn on, the problem could be the bulbs, the wiring, or the console's internal circuitry. On some older Ford models, this was caused by cracked solder joints on the circuit board, which could sometimes be repaired by a skilled DIYer with a soldering iron.

3. Parasitic Battery Drain

Like any electronic module, the overhead console can fail to go into its low-power "sleep mode" after the vehicle is turned off. This can cause a slow but steady drain on the battery, leading to a dead battery overnight or after a few days of sitting. While many modules can cause this, if you've also noticed other console-related symptoms, it should be a primary suspect. Technicians diagnose this by measuring the vehicle's amperage draw after it has been off for at least 45 minutes.

4. Broken Sunglasses Holder

The latch or hinge for the sunglasses storage compartment is a common point of mechanical failure. The plastic can become brittle over time and break from repeated use.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of early 2026, there are no specific recalls or TSBs issued by Ford or the NHTSA for the overhead console assembly itself on these models. However, owners should be aware of several recalls affecting the same vehicles, which speak to broader quality control topics.

• 2020-2025 Lincoln Aviator Recall (25V-XXX): Some vehicles were recalled because exterior C-pillar trim pieces could detach while driving due to improper adhesion.
• 2016-2017 Ford Explorer Recall (25V-347): A recall was issued for B-pillar exterior trim appliques that could detach from the vehicle while in motion.
• 2020-2025 Explorer & Aviator Recall (25S67): An issue with the second-row easy-entry seat switch binding could cause the seats to move or unlatch unexpectedly.

Buying a Used Overhead Console: What to Check

A used OEM console is an excellent, cost-effective alternative to an expensive new part. Since failures are often isolated to a single button or a broken latch, a tested, used unit can be just as good as new. Here’s what to look for.

Step 1: Positively Identify Your Vehicle's Configuration

Before you shop, confirm the following for your vehicle:

• Year: Is it a 2016-2019 model or a 2020-2025 model?
• Sunroof: Does it have a sunroof and/or a separate sunshade?
• Model: Is it a standard Explorer, a Police Interceptor Utility, or a Lincoln Aviator?

Step 2: Physical Inspection Checklist

When you have the used part in hand, or are looking at high-quality photos online, check these key areas:

• Buttons: Press every button. They should move freely and have a positive click feel without sticking.
• Plastic Housing: Inspect for any cracks, especially around the mounting points and clip slots.
• Sunglasses Door: Open and close the storage compartment. Ensure the latch engages securely and the door moves smoothly.
• Electrical Connector: Look at the connector pins. They should be straight, clean, and free of any corrosion or signs of overheating (discoloration).
• Lenses: Check that the light lenses are clear and not cracked or hazy.

Replacement Guide

Replacing the overhead console is a beginner-friendly job that typically takes less than 20 minutes. The process differs slightly between generations.

Difficulty: 1 out of 5

2016-2019 Ford Explorer & PIU (5th Gen)

1. Start at the end of the console closest to the back of the vehicle (away from the windshield).
2. Use a plastic trim removal tool or your fingers to get under the edge and pull straight down. You will need to apply firm force to release the rear clips.
3. Do not pull from the front first. The front edge is secured by hooks that will break if you pry from that end.

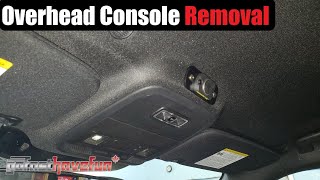

🎬 Watch this video for a 5th Gen removal walkthrough.
4. Once the rear is loose, lower the console to access the single electrical connector. Press the tab on the connector and unplug it.
5. To install the new console, plug in the electrical connector first. Then, engage the hooks at the front edge near the windshield. Finally, push the rear of the console up firmly until the clips snap into place.

2020-2025 Explorer, Aviator, & PIU (6th Gen)

1. Using a plastic trim removal tool, gently pry downwards on the rear edge of the console (the side furthest from the windshield).
2. The console is held in by several spring clips. Work your way around the edge, pulling down firmly to release them.
3. Lower the console and disconnect the single electrical harness by depressing the release tab.
4. To install, connect the new console's wiring harness. Align the console and push it straight up into the headliner until all the clips engage with a solid click.
🎬 See how to replace the console on 2020-up models.

Cost Comparison

Frequently Asked Questions (FAQ)

Vehicle & Part Number Cross-Reference

Below are some of the known OEM part numbers. Always verify compatibility with your vehicle's specific year and options before purchasing.
