2020-2025 Explorer & Aviator Console Guide: Fixing Rattles, Faulty Switches, and Wireless Charging Issues

Understanding Your Console: Overhead vs. Floor Consoles

The 2020-2025 Ford Explorer and Lincoln Aviator use several different console panels depending on the vehicle's configuration. It is critical to distinguish between them, as they have different functions, failure points, and replacement procedures. The two main types are the overhead console and the front floor console.

Overhead Console

Located on the headliner between the driver and passenger, this smaller console contains the switches for the panoramic sunroof and sunshade, the interior dome lights, and a sunglass storage compartment. It is only present on models equipped with a sunroof.

Front Floor Console

This is the large assembly between the front seats that includes the gear selector dial, cupholders, armrest, storage bin, and various control switches. It has many variations depending on trim and options, such as the presence of a wireless phone charger or switches for heated and cooled seats.

Second-Row Center Console (Lincoln Aviator)

Higher trims of the Lincoln Aviator equipped with second-row captain's chairs may feature a rear center console. This provides storage, cupholders, and sometimes additional USB ports for rear passengers. Some owners have successfully swapped the smaller standard tray for the larger, full-length console found on higher trims.

Symptoms of Console Panel Failure

Failures in these consoles are typically either electrical (switches and features not working) or mechanical (physical damage, rattles, and noises).

• Faulty Sunroof or Sunshade Switch: A common issue with the overhead console is the switch for the sunroof shade failing to operate or requiring excessive force to work. In most cases, the switch itself is the problem, and since it is integrated into the console, the entire overhead unit must be replaced.
• Rattles and Creaks: Many owners report rattles and creaks from both the overhead and floor consoles. Common sources include the sunglass holder in the overhead console and the cupholder area or side panels of the main floor console. These noises are often due to loose trim clips or panels rubbing together.
• Wireless Charging Malfunctions: The optional wireless charging pad is a frequent source of complaints. Owners report that it fails to charge larger phones, disconnects frequently, or causes the phone to overheat. This is a widely discussed issue in owner forums.
• Dead USB Ports or Inoperative Lights: If USB ports or console-area lights stop working, it may not be the console itself. A recall (25C42) was issued for a faulty Body Control Module (BCM) that can cause these and other electrical systems to fail.
• Ambient Lighting Stays On: Some owners have reported that the interior ambient lighting within the console storage areas remains illuminated long after the vehicle is turned off. This is often related to the vehicle's battery-saver timer settings but can be a symptom of a BCM issue.

Buying a Used Console Panel: What to Check

Purchasing a used OEM console is an excellent way to save money, but careful inspection is key to getting a good part. Compatibility is the single most important factor, as there are many variations.

1. Verify Compatibility Above All Else

• Overhead Console: Ensure your vehicle has a sunroof. These consoles are not compatible with models that do not have one.
• Front Floor Console (Wireless Charging): The initial data specified a console for models WITHOUT wireless charging. Part numbers confirm there are distinct versions for vehicles with and without this feature. Part number LC5Z-78045A36-BA is for models with wireless charging, while LC5Z-78045A36-AJ is for models without. Verify which version you need.
• Front Floor Console (Heated/Cooled Seats): The console houses the switch panel for these features. If your vehicle only has heated seats, a console from a vehicle with cooled seats will have non-functional buttons. Ensure the switch layout matches your vehicle's options.

2. Physical Inspection Checklist

• Check for Rattles: Firmly press on the cupholder area, armrest, and side panels. Listen for any creaks or looseness that could cause noise once installed.
• Test Switches and Latches: On an overhead console, physically press the sunroof and sunshade buttons to ensure they have a solid click and are not sticky. Open and close the sunglass holder. For a floor console, open and close the armrest lid and any other storage doors to ensure the latches work correctly.
• Inspect All Mounting Points: Carefully check the back and bottom of the console for any broken plastic tabs or clips. These are essential for a secure, rattle-free installation.
• Examine the Surface Finish: Look for deep scratches, peeling chrome or silver trim, and stains or tears in the armrest material. Minor cosmetic issues may be acceptable, but significant wear can be difficult to repair.

Known Issues, TSBs, and Recalls

While there are no recalls for the main console structures themselves, several recalls affect components located within or near the consoles.

• NHTSA Recall 25S67 (Second-Row Seat Switch): Affects 2020-2025 models. The bezel around the easy-entry seat fold switch can bind, causing the seat to unlatch or fold unexpectedly. Dealers will inspect and replace the bezel.
• NHTSA Recall 25C42 (Body Control Module): A faulty BCM can cause a wide range of electrical issues, including failure of the USB ports, power outlets, and various interior lights housed in the console assemblies.
• Rear View Camera Malfunction: Though not a console part, this is one of the most common electrical complaints for these vehicles. A flickering, blue, or black screen is a known issue that led to recalls. The problem can sometimes be misdiagnosed as an issue with the center screen itself.
• Widespread Rattle Complaints: There is no specific TSB for console rattles, but it is a well-documented complaint in owner forums for both the Explorer and Aviator. The issue is often related to trim fitment from the factory.
🎬 Watch: How to find and fix common interior rattles.

Replacement Difficulty and Cost

Installation Overview

• Overhead Console: This is a simple DIY replacement. It is held in by clips and two forward-facing hooks. The process involves carefully pulling the rear of the console downward to release the clips, then sliding it backward to unhook it. There is typically only one electrical connector to unplug.
🎬 Watch: Step-by-step guide to replacing your overhead console.

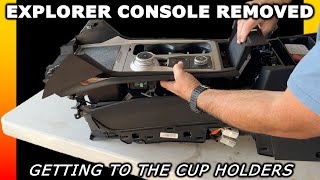

• Front Floor Console: This is a more involved job. It requires removing side trim panels and several bolts to release the entire assembly. Accessing certain components, like the cupholders, may require removing the whole console. 🎬 See this walkthrough for removing the floor console and cupholders. While possible for an experienced DIYer, it requires patience and care to avoid breaking trim clips.

Cost Comparison

Prices for console panels can vary dramatically based on the specific version and its features. The floor console is significantly more expensive than the overhead console.
