2016-2022 Lexus RX350 Dashboard Harness: Decoding Options and Avoiding Mismatches
This in-depth guide explains the common failures, high replacement costs, and critical compatibility warnings for the 2016-2022 Lexus RX350 dashboard wiring harness.
- Compatibility is critical: A used harness must come from a vehicle with the exact same options (Nav, HUD, audio system).
- Rodent damage from chewing on the soy-based wire insulation is a primary cause of failure for this part.
- Replacement is a massive job (15-20+ hours) requiring complete dashboard removal and is not feasible for a DIY mechanic.
- Due to the high cost of a new OEM part (over $3,000) and extreme labor, a used harness is the only viable option for most repairs.
Symptoms of a Failing Dashboard Harness
A problem with the dashboard wiring harness often creates a cascade of confusing electrical issues. Because the harness connects so many different components, a single damaged wire can cause multiple, seemingly unrelated symptoms. Look for these common signs:
- Multiple Warning Lights: A flurry of random warning lights on the instrument cluster that may come and go without a clear pattern.
- Intermittent or Dead Components: The radio, navigation screen, climate controls, or power windows may work sporadically or stop working entirely.
- Flickering Lights: Dashboard illumination or headlights may flicker or dim unexpectedly.
- Mysterious Battery Drain: A short circuit in the harness can cause a parasitic draw that drains the battery when the vehicle is parked.
- Burning Smell: A distinct smell of burning plastic or melting wire insulation is a serious sign of a short circuit and a potential fire hazard.
- No-Start Condition: Damage to wires connected to the ignition or security system can prevent the vehicle from starting.
Known Issues for 2016-2022 Lexus RX350
Rodent Damage
One of the most common causes of wiring harness failure in this generation of Lexus RX350 is rodent damage. Like many modern automakers, Toyota and Lexus use a soy-based compound for the wire insulation. While environmentally friendly, this material can attract rodents like mice, rats, and squirrels, who chew on the wires, causing short circuits or open circuits. This issue is so prevalent that a check for rodent activity (chewed insulation, nests, droppings) should be the first step in diagnosing widespread electrical problems.
🎬 Watch: See how rodents can nearly destroy a Lexus SUV.Water Intrusion
While less common, some owners have reported electrical issues stemming from water leaks. Clogged sunroof drains can cause water to overflow and run down the A-pillars or behind the dashboard, potentially reaching the harness or its connectors. Over time, this moisture can lead to corrosion and connection failures.
Recalls and Technical Service Bulletins (TSBs)
As of early 2026, there are no specific recalls or TSBs issued by Lexus or the NHTSA for a systemic defect with the main dashboard wiring harness itself for the 2016-2022 RX350. While numerous recalls exist for other electrical components on the vehicle, they do not pertain to the design or construction of the dash harness. Failures are typically caused by external factors like rodent damage or previous improper repairs.
Warning: The compatibility warnings in the next section are the most critical part of this guide. Failure to follow them will result in purchasing a part that will not work in your vehicle.
Buying a Used Dashboard Wiring Harness
Due to the extremely high cost of a new OEM harness, a quality used OEM harness is the only practical option for most repairs. However, you must be exceptionally careful when purchasing one. Aftermarket dashboard harnesses for this vehicle are not manufactured due to their complexity.
The Golden Rule: Options Must Match EXACTLY
A dashboard harness is not a one-size-fits-all part. It is built specifically for the combination of options installed in the vehicle from the factory. The initial data provided is correct: a harness from a Base model will not work in a vehicle with premium options, and vice-versa.
Before purchasing, you must verify the donor vehicle has the exact same configuration as yours, including:
- Navigation System: Standard vs. Navigation-equipped models use different wiring.
- Audio System: Base audio vs. the premium Mark Levinson system have completely different connectors and wiring.
- Head-Up Display (HUD): Vehicles with a HUD have an entirely separate branch on the harness to power it.
- Heated/Cooled Seats: The harness must have the correct connectors for these seat modules.
- Climate Control: Dual-zone automatic climate control requires specific wiring.
Pro Tip: The safest way to ensure a match is to get the Vehicle Identification Number (VIN) of the donor car. A Lexus dealership parts department can use the VIN to look up the vehicle's exact factory-installed options. Compare this list to the options on your own vehicle to confirm a perfect match.
Physical Inspection Checklist
Once you've found a potentially compatible harness, inspect it carefully for the following:
- No Cut Wires: The harness should be removed completely, with all connectors intact. A harness with cut connectors is useless.
- Check All Connectors: Look for bent pins, cracked plastic housings, or signs of corrosion (green or white powder) inside the connectors.
- Inspect for Chewing: Carefully examine the entire length of the harness for any signs of rodent damage. Look for stripped insulation or bite marks.
- No Signs of Overheating: Check for any melted connectors or brittle, discolored wire insulation, which indicates a past short circuit.
- Avoid Repaired Harnesses: Look for non-factory electrical tape or splices. A previous improper repair is a major red flag.
Cost & Replacement Difficulty

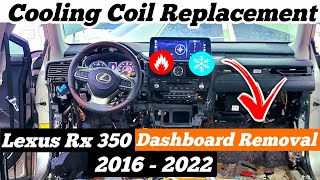

Replacing the dashboard wiring harness is one of the most labor-intensive repairs that can be performed on a vehicle. The entire dashboard, including the steering column, instrument cluster, center console, and the main steel cross-car support beam, must be removed to gain access.
- Difficulty Rating: 5 out of 5
- DIY Feasible: No. This job is for professional technicians only.
- Estimated Time: 15-20 hours
| Part/Service | Estimated Cost |
|---|---|
| New OEM Harness | $2,900 - $3,900 |
| New Aftermarket Harness | Not Available |
| Used OEM Harness | $400 - $900 |
| Shop Labor Cost | $2,500 - $4,000+ (dependent on local labor rates) |
| Total Job Cost (Used Part) | $2,900 - $4,900+ |
| Total Job Cost (New Part) | $5,400 - $7,900+ |
Note: A forum member reported a dealer quote of over $9,000 for a complete replacement due to rodent damage. Costs can vary significantly.
Frequently Asked Questions (FAQ)
Why can't I just use a harness from a Lexus with more options than mine?
You cannot use a harness from a higher-trim model because it will have extra connectors for features your car doesn't have, and your vehicle's computers will not be programmed to recognize them. More importantly, it may lack the specific wiring for the options your car *does* have. This will result in error codes and non-functioning components. The harness must be an exact match.
Is it possible to repair my existing harness instead of replacing it?
In cases of minor, localized damage (e.g., one or two chewed wires in an accessible area), a skilled technician can sometimes repair the individual wires. However, if the damage is extensive, located deep within the dashboard, or involves multiple connectors, replacement is the only reliable solution. 🎬 Watch: How to repair rodent-damaged wiring like a pro. Lexus dealerships will often only offer full replacement.
Is a failing dashboard harness a fire risk?
Yes. A damaged harness with exposed wires can cause a short circuit. This can lead to overheating, melting of wires and plastic components, and potentially a vehicle fire. If you smell burning plastic, disconnect the battery immediately and have the vehicle towed to a repair shop.
My screen is flickering and my radio isn't working. Is it definitely the harness?
Not necessarily. While these are symptoms of a bad harness, they can also be caused by a failing component (like the radio unit itself), a bad ground connection, or a weak battery. Proper diagnosis by a qualified technician is essential before condemning the entire harness, as it is a very expensive and difficult part to replace.
Helpful Videos
Technical Specifications
OEM Part Numbers: 82141-0EC21 82141-0EN10
Varies significantly based on vehicle options. No universal specifications.
