2017-2026 Tesla Model 3 & Model Y Dashboard Harness: Solving Electrical Gremlins and Compatibility Traps

Critical Compatibility Warnings: Read This First

The dashboard wiring harness is one of the most complex parts in your Tesla, and compatibility is extremely specific. Ordering the wrong part will result in non-functional components and wasted time, as replacement is a massive job. Before purchasing, you must verify three key things:

• Vehicle Generation: The harness for the updated 2024+ 'Highland' Model 3 is completely different and NOT backward-compatible with 2017-2023 models. The same applies to the 2026+ 'Juniper' Model Y versus earlier 2020-2025 models.
• Audio System: Tesla built these cars with two main audio systems: Standard and Premium. The Premium system has more speakers, a subwoofer, and an additional amplifier, requiring a different harness. These harnesses are not interchangeable.
• OEM Part Number: This is the most important check. Due to the many variations, the only way to guarantee compatibility is to match the OEM part number from your original harness to the one you are buying.

Symptoms of a Failing Dashboard Wiring Harness

A bad dash harness rarely causes a single, predictable failure. Instead, it typically creates a cluster of strange and intermittent electrical issues that can be difficult to diagnose. Because so many systems are connected, a short or break in a single wire can have widespread effects.

• Intermittent or Flickering Center Display: The main screen may randomly go black, flicker, or show distorted graphics. 🎬 Watch: How to reset a blacked-out Tesla screen While this can also be a software bug or an issue with the Media Control Unit (MCU), a faulty harness is a common cause.
• Unresponsive Controls: Buttons on the steering wheel for audio, cruise control, or turn signals may stop working or only function sporadically.
• Multiple, Unrelated Warning Lights: The dashboard may light up with various alerts for systems that are not actually faulty. This happens when communication between computer modules is interrupted by a bad wire.
• Audio Problems: You might experience sound cutting out from certain speakers, a complete loss of audio, or static. This is different from a single blown speaker and usually affects multiple channels at once.
• Climate Control Issues: The HVAC system may behave erratically, with fans not turning on, temperature regulation failing, or vents not responding.
• Burning Smell: A burnt plastic smell from under the dashboard is a serious sign of a short circuit and a potential fire risk. If you smell this, stop driving immediately.
• Ghost Touches or Phantom Inputs: The system may act as if someone is touching the screen or pressing buttons when no one is.

Key Variants and How to Identify Them

The biggest challenge with this part is identifying which version your vehicle needs. The main difference comes down to the audio system installed from the factory.

Standard Audio vs. Premium Audio

Tesla uses unbranded audio systems, typically referred to as Standard or Premium. The Premium system, usually found on All-Wheel Drive (AWD) and Performance models, has more speakers (up to 17), a dedicated subwoofer, and an external amplifier. The Standard system, common on Rear-Wheel Drive (RWD) models, has fewer speakers (7-9 depending on the year) and no factory subwoofer or separate amp. The wiring harnesses for these two systems are fundamentally different and cannot be swapped.

Model 3: Pre-Highland (2017-2023) vs. Highland (2024+)

The 2024 Model 3 'Highland' refresh introduced a new electrical architecture. The dashboard harness from a 2017-2023 car will not work in a 2024+ car, and vice-versa. Part numbers beginning with 3067960 are typically for pre-Highland models, while part numbers like 1897343 are for Highland models.

Buying a Used Dashboard Wiring Harness

Buying a used OEM harness is often the only cost-effective alternative to a new one from the dealer, as the aftermarket for such a complex part is virtually nonexistent. However, careful inspection is mandatory.

1. Verify the Exact OEM Part Number: This is the single most important step. Find the part number on your original harness and ensure it matches the used one. A visual match is not enough.
2. Inspect Every Connector: Carefully check every single plastic connector. Look for broken locking tabs, bent or corroded pins, or any signs of melting or heat damage. A single damaged connector can render the entire harness useless.
3. Look for Cut or Spliced Wires: Scan the entire length of the harness for any signs of previous repairs. Factory wires are not repaired with electrical tape or simple butt connectors. 🎬 See: How to repair a wiring harness correctly Staggered, professionally sealed splices might be acceptable if done to a high standard, but any sign of a shoddy repair is a major red flag.
4. Check for Physical Damage: Look for abrasions where the harness might have rubbed against a metal edge, brittle or cracked sheathing, or signs of rodent damage (chewed wires).

Known Issues, TSBs, and Recalls

While there are no specific recalls for the dashboard wiring harness itself, other wiring-related issues on the Model 3 and Model Y platforms show that wire fatigue and connection problems can occur.

• Trunk Harness Fatigue (NHTSA 21V-00D): This well-known recall for 2017-2020 Model 3s involves the rearview camera cable breaking from repeated opening and closing of the trunk. This demonstrates that wires in high-motion areas can fail over time.
• Reverse Light Failure (2026 Model Y): Some early 'Juniper' Model Ys were recalled because the reverse lights could fail due to an improperly seated terminal pin in a wiring harness connector, highlighting the importance of secure connections.

Installation and Replacement

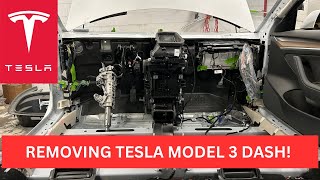

The replacement process involves removing the front seats, center console, steering wheel, A-pillar trim, glovebox, the main touchscreen, and finally, the entire dashboard assembly to gain access 🎬 Watch: Tesla Model 3 dashboard removal walkthrough to the harness. The job typically takes a professional technician 10-15 hours to complete. Due to the complexity and risk of damaging other components, this repair should be left to experienced technicians.
