Prius, C-HR, & Lexus UX Front Brake Caliper: AWD & Japan-Built Fitment Explained (2019-2025)

Symptoms of a Failing Brake Caliper

A failing brake caliper is a serious safety issue. It can make your car pull to one side, reduce stopping power, or cause other brake system components to wear out prematurely. Here are the most common signs of a bad front passenger side caliper on your Toyota Prius, C-HR, or Lexus UX.

• Vehicle Pulls to One Side: When you apply the brakes, the car may pull sharply to the left (away from the failing passenger side caliper) or, if the caliper is seized and dragging, it may pull to the right. A seized caliper that is constantly applied will cause a dragging sensation even when you are not braking.
• Uneven Brake Pad Wear: A classic sign of a sticking caliper slide pin or piston is rapid and uneven wear on the brake pads for that wheel. You might find the inner pad is worn down to the metal 🎬 Watch: Detailed tutorial on replacing Lexus UX front brake components. while the outer pad has plenty of life left, or vice-versa.
• Brake Fluid Leaks: You may see brake fluid, which has an oily consistency, on the inside of your front passenger side wheel or on the ground where you park. Leaks typically come from a degraded piston seal or a loose bleeder screw. A fluid leak will lead to a soft or spongy brake pedal.
• Spongy or Soft Brake Pedal: If the caliper is leaking fluid, air can get into the hydraulic system. This makes the brake pedal feel soft, spongy, or go closer to the floor than usual to get the car to stop.
• Abnormal Noises: A seized or failing caliper can cause grinding, squealing, or clunking sounds. These noises may be constant if the caliper is stuck, or only happen when you brake.
• Burning Smell or Excessive Heat: A caliper that is stuck or dragging will generate extreme heat from the constant friction. You may notice a strong burning smell coming from the front passenger wheel after driving. The wheel itself may be significantly hotter to the touch than the other wheels.

Vehicle-Specific Fitment & Compatibility Warnings

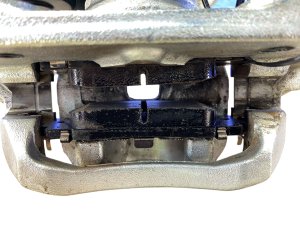

This front passenger side brake caliper (OEM part number 47730-76010) has very specific fitment requirements. Failure to verify these details will result in buying a part that does not fit your vehicle.

Buying a Used Disc Brake Caliper: What to Inspect

A used OEM caliper can be an excellent value, offering original factory quality for a fraction of the price of a new one. However, you must inspect it carefully. Do not purchase a used caliper if it shows any of the following red flags.

Key Inspection Points:

• Piston Dust Boot: This is the most important check. The rubber boot around the caliper piston must be intact, with no rips, tears, or cracks. A damaged boot allows moisture and dirt to enter, which will cause the piston to rust and seize.
• Slide Pins and Boots: The caliper must slide freely on its guide pins. Remove the pins and check their rubber boots for damage. The pins themselves should be clean and move smoothly without excessive force. If they are stuck, the caliper is not a good candidate for purchase.
• Bleeder Screw: Check that the bleeder screw is not broken off, stripped, or seized. Try to gently turn it with a wrench to ensure it can be opened for bleeding the brakes. A snapped bleeder screw can be very difficult to remove.
• No Signs of Leaks: Inspect the area around the piston boot and the bleeder screw for any dark staining, which indicates a past or present brake fluid leak.
• Threads: Check the threads for the two slide pin bolts and the banjo bolt (for the brake hose). They should be clean and free of damage.
• Overall Condition: Avoid calipers with excessive rust or physical damage to the caliper body. While surface rust is normal, deep, flaky rust can compromise the part's integrity.

Known Issues, TSBs, and Recalls

While there are no known recalls specifically for the front brake calipers on these models, there are other important brake-related safety notices owners should be aware of.

• 2019-2022 Lexus UX250h: A recall was issued for some 2019 models because the brake booster pump could fail, leading to a loss of braking assist and increasing the risk of a crash.
• 2020-2022 Toyota C-HR: Recalls have been issued for some C-HR models related to the Electronic Parking Brake (EPB) not engaging or disengaging properly, and for rear axle hub bearing bolts that could loosen, potentially damaging rear brake components.
• 2023-2025 Toyota Prius / Prius Prime: A recall was issued for an issue where water can enter the rear door switches, potentially allowing a door to open while driving. This is not a brake issue but is a critical safety recall for these vehicles.

Always check the NHTSA website with your vehicle's VIN to see if any open recalls apply to your car.

Replacement Overview & Difficulty

Replacing a front brake caliper is a moderately difficult job that requires knowledge of hydraulic brake systems. Because these are modern vehicles, they are equipped with an Electronic Parking Brake (EPB) system which may need to be put into a service mode using a diagnostic scan tool 🎬 See how to enter Electric Parking Brake service mode., even for front brake work. Always consult a repair manual for the specific procedure for your vehicle.

• Difficulty Rating: 3 out of 5
• DIY Feasible: Yes, for experienced mechanics with the proper tools.
• Special Tools: Torque wrench, brake fluid bleeder kit, potentially a diagnostic scan tool to place the EPB in service mode.
• Procedure: The basic steps involve safely lifting and supporting the vehicle, removing the wheel, unbolting the brake hose from the caliper (be prepared for fluid spillage), removing the two caliper slide pin bolts, and swapping the caliper. The system must then be thoroughly bled of all air.

Torque Specifications

Using a torque wrench is critical for safety. These specs are consistent across the Prius, C-HR, and Lexus UX models covered here.

Cost Comparison

The cost of a replacement caliper can vary significantly. A used OEM part often provides the best balance of quality and price.

Frequently Asked Questions (FAQ)
