2023-2025 Lyriq, Blazer EV & ZDX Brake Systems: Recalls, Problems, and Diagnosis

Vehicle-Specific Brake System Recalls and Investigations

Owners of the Cadillac Lyriq, Chevrolet Blazer EV, and Acura ZDX should be aware of several significant safety recalls and investigations related to the braking systems. These issues are primarily electronic or software-based, not mechanical failures of the brake rotors or pads themselves.

Cadillac Lyriq & Acura ZDX: ABS Software Recall (Loss of Braking)

A major recall affects 2023-2024 all-wheel-drive (AWD) Cadillac Lyriq models and 2024 all-wheel-drive (AWD) Acura ZDX models. The issue stems from overly sensitive software in the electronic brake control module (NHTSA Recall No. 24V-589 for the Lyriq).

• The Defect: Under certain conditions—specifically on dry, flat surfaces at speeds below 25 mph—the anti-lock braking system (ABS) can activate incorrectly. This false activation can cause the system to release brake pressure, leading to reduced stopping power or a sudden loss of brakes.
• The Fix: General Motors and Acura are deploying an over-the-air (OTA) software update to correct the wheel slippage detection logic. Owners can also have the update performed at a dealership.
• Background: This recall followed an NHTSA investigation (PE24011) into 2023 Lyriq models for a loss of brake boost assist, which caused a hard brake pedal and a "Brake System Failure" warning message on the dash. That issue was traced to a potentially fracturing internal spindle in the eBoost system.

Chevrolet Blazer EV: Parking Brake Wiring Harness Recall

A separate, large-scale recall was issued for over 40,000 2024-2025 Chevrolet Blazer EV models due to a defective rear parking brake wiring harness.

• The Defect: The wiring harness was routed incorrectly during assembly, allowing it to flex excessively, which can lead to broken wires or corrosion. This can cause two dangerous situations: the parking brake may engage suddenly while driving, or it may fail to engage when parked, creating a roll-away risk.
• Symptoms: Drivers may see a "Service Parking Brake" warning message or find the vehicle will not shift out of Park.
🎬 See this report on the Chevy Blazer EV brake issues.
• The Fix: Dealers will inspect the harness. If undamaged, it will be rerouted and protected with anti-abrasive tape. If damage is found, the harness will be replaced entirely at no cost. A smaller, secondary recall was even issued for 20 Blazer EVs that received an incorrect part during the initial recall repair.

Symptoms of Mechanical Disc Brake Failure

Beyond the electronic issues, the physical brake components (rotors and pads) will eventually wear out. Here are the common symptoms to watch for:

1. Vibration or Pulsation During Braking

This is the most common sign of warped brake rotors. You may feel a chattering or pulsing sensation through the brake pedal or see the steering wheel shake back and forth as you slow down. This happens because the brake pads are gripping an uneven rotor surface.

2. Grinding, Squealing, or Scraping Noises

Grinding: A metal-on-metal grinding sound usually means the brake pads have worn down completely, and the steel backing plate is now grinding against the rotor. This is a critical safety issue that damages the rotors and requires immediate attention. Squealing: High-pitched squealing is often caused by a built-in wear indicator on the brake pads, which is a small metal tab designed to make noise when the pads are low. Rhythmic Thumping: A thumping or groaning noise that matches wheel speed while braking can also point to a warped or unevenly worn rotor.

3. Longer Stopping Distances

If you notice the vehicle takes longer to stop than it used to, your brakes are not performing effectively. This can be caused by worn pads, warped rotors, or issues with the brake fluid. Driving with warped rotors can be unsafe, especially on wet or slippery surfaces where wheel lock-up is more likely.

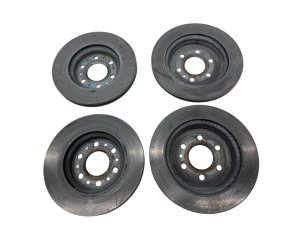

Buying a Used Disc Brake Kit: What to Inspect

Purchasing a used OEM disc brake kit can be a cost-effective option, especially since these EVs use regenerative braking, which reduces wear on the physical rotors. However, a thorough inspection is critical.

1. Check for a Complete Set

A complete brake job for one axle includes two brake rotors and a set of four brake pads (two for each side). Ensure you are getting all the necessary components. Note that rotors are almost always sold individually, not as a complete set of four for the whole vehicle.

2. Physical Rotor Inspection

• Measure Thickness: This is the most important check. Every rotor has a minimum thickness specification stamped on its edge or hub (e.g., "MIN TH 28mm"). Use a micrometer to measure the rotor's thickness. If it is at or below the minimum, the rotor is unsafe and must be discarded.
• Surface Condition: Look for deep grooves, scoring, or large, discolored "burn spots." Minor surface rust is normal, but heavy rust on the friction surface where the pad makes contact means the rotor should be replaced.
• Cracks: Inspect the entire surface and the cooling fins between the rotor faces for cracks. Small, hairline heat-check cracks can be normal, but any large or deep cracks are a major safety hazard.
• Warpage and Runout: While hard to measure without special tools, you can check for obvious signs like a noticeable lip on the outer edge or uneven wear patterns.

3. Brake Pad Inspection

It is generally recommended to install new brake pads with any used rotor. However, if pads are included, ensure they have plenty of friction material remaining and are wearing evenly. Uneven wear on a set of pads indicates a problem with the caliper or guide pins.

Cost Breakdown for Disc Brake Replacement

Prices can vary based on your location and whether you choose a dealership or an independent shop. Because these vehicles are so new, aftermarket options may be limited.
