2023-2025 Toyota Prius & Prius Prime Door Glass: A Buyer's and DIY Guide
This guide covers common failure points, replacement costs, and what to inspect when buying a used door glass for your 5th generation Toyota Prius or Prius Prime.
- The door glass is shared between the 2023-2025 Toyota Prius and Prius Prime models.
- A critical safety recall exists for the rear door opener switches, which can allow doors to open while driving; this is unrelated to the glass but affects the same vehicles.
- Replacement is a moderately easy DIY job (1-2 hours) that does not require expensive ADAS recalibration.
- Buying a used OEM glass is a cost-effective option, providing factory quality for less than a new aftermarket part.
Symptoms of Failure
Failure of a door glass is typically sudden and obvious. Unlike mechanical parts that wear out over time, glass failure is usually caused by an external impact.
- Visible Cracks or Chips: A rock kicked up by another vehicle or any other sharp impact can cause a chip or a crack. While a small chip might seem minor, it can quickly spread and compromise the entire window.
- Shattered Glass: The most common failure is complete shattering. As a tempered safety glass, it will break into thousands of small, pebble-like pieces. This can happen from an accident, a direct impact, or in rare cases, from extreme thermal stress or a manufacturing defect.
- Wind Noise or Water Leaks: While not a failure of the glass itself, new or excessive wind noise or water leaking into the cabin can indicate that the glass is no longer sealing properly against the weatherstripping. This can sometimes happen after a faulty installation.
Pro Tip: If your window is intact but won't go up or down, or seems tilted, the problem is likely the window regulator or motor, not the glass itself. These are separate parts that can be replaced independently of the glass.
Known Issues for 2023-2025 Prius and Prius Prime
Important Recall: Rear Door Opener Switches
While there are no widespread recalls specifically for the door glass on these models, Toyota has issued a significant safety recall for approximately 55,000 Prius and Prius Prime vehicles from the 2023 and 2024 model years. Some reports indicate the recall may extend to 2026 models.
Warning: The recall addresses an issue where water can enter the electronic rear door opener switches, potentially causing a short circuit. This could cause a rear door to open unexpectedly while the vehicle is in motion if the doors are not locked, increasing the risk of injury. Toyota dealers will modify the rear door switch circuits free of charge. It is critical to have this recall service performed, although it is not a failure of the glass itself.
Buying a Used Door Glass
Purchasing a used OEM door glass is an excellent way to save money without sacrificing quality. Unlike complex mechanical parts, glass condition is easy to assess. A used OEM part will have the exact same solar-controlled properties, tint, and fit as the original.
Inspection Checklist:
- Check for Scratches: Hold the glass up to a light source and inspect it from multiple angles. Look for deep scratches that could obstruct vision or be distracting. Minor scuffs are common, but deep gouges are a red flag.
- Inspect for Chips and Edge Damage: Carefully run your finger along all edges of the glass. Even a small chip on the edge can become a crack when the glass is installed and subjected to the stress of opening and closing the door. Reject any glass with edge damage.
- Verify the DOT Markings: Look for the small stamp, usually in a corner, that contains the DOT (Department of Transportation) number and other manufacturing codes. This ensures the glass is certified for automotive use. A genuine used part will have these markings.
- Confirm the Tint: While the 5th generation Prius seems to use standard solar tint across trims, it's wise to place the used glass next to your vehicle (if possible) to ensure the tint matches your other windows.
- Check Mounting Points: The glass attaches to the window regulator with clips or clamps. Ensure these mounting areas on the glass are intact and free of any stress fractures.
Replacement Information
Replacing the door glass is a feasible DIY project for someone with moderate mechanical experience. The main challenge is the careful removal of the interior door panel without breaking any plastic clips.

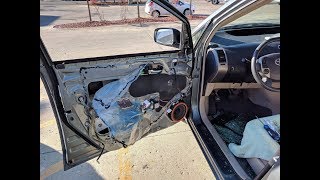

🎬 Watch: How to safely remove the interior door panel- Difficulty: 3 out of 5
- DIY Time: 1 - 2 hours
- Professional Time: 30 - 60 minutes
The basic steps involve removing screws and clips to detach the interior door panel, unplugging the window switch, peeling back the weather barrier, unbolting the old glass (or what's left of it) from the window regulator, vacuuming all debris, and then installing the new glass in reverse order. 🎬 See this narrated walkthrough of a Prius window installation Unlike a windshield replacement, no ADAS camera recalibration is needed for a side window.
Cost Breakdown
The cost to replace a door glass can vary based on the type of part used and labor rates in your area.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM (Dealer) | $200 - $285 | This is for the part only. MSRP for a front door glass is around $282. |
| New Aftermarket | $150 - $200 | Prices for newer models can be high initially. An aftermarket glass was found for $166. |
| Used OEM | $70 - $160 | Offers the best value, providing original quality at a lower price. |
| Shop Labor | $100 - $200 | Typically 1-1.5 hours of labor. Does not require complex calibration. |
Technical Specifications & Part Numbers
The door glass for the 2023-2025 Prius and Prius Prime is solar-controlled tempered glass. The primary part numbers are for the front doors, which are the most commonly replaced.
- Front Right (Passenger Side): 68101-47260
- Front Left (Driver Side): 68102-47260
- Industry Part Number (NAGD): FD30331GTY (This is a generic number for the front door glass type)
These part numbers appear to be consistent across LE, XLE, and Limited trims for the standard door glass.
Frequently Asked Questions
Is it difficult to replace the door glass myself?
For a DIYer with some experience, it is a manageable job. The most difficult part is removing the interior door panel without breaking the plastic clips. Watching a video tutorial for your specific vehicle is highly recommended. You will need basic tools like a screwdriver set, a socket set, and a trim removal tool.
Is there a difference in glass between the Prius and Prius Prime?
No, for the 2023-2025 model years, the Toyota Prius and Toyota Prius Prime share the same chassis and body panels, including the door glass.
My rear door opens by itself. Is this a glass problem?
No, this is not a glass problem. This is a known issue covered by a Toyota safety recall for the rear door opener switches. Contact a Toyota dealer to have the recall service performed for free, as it is a significant safety concern.
Why should I buy used OEM glass instead of new aftermarket glass?
Used OEM glass guarantees a perfect fit and the same solar-control and tint properties as your vehicle's original windows. Aftermarket glass for new models can be good, but quality can vary. With a used OEM part, you are getting a factory-original component at a significant discount.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68101-47260 (Front Right) 68102-47260 (Front Left) 68101-47250 (Superseded/Alternate) FD30331GTY (NAGD)
Tempered, Solar-Controlled Glass
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
