2000-2005 Ford Excursion Door Panel: Fixing Rattles, Cracks, and Buying Used
Your definitive guide to diagnosing, replacing, and purchasing a used interior door trim panel for the 2000-2005 Ford Excursion.
- The most common failures are rattles from broken clips and cracks in the armrest area.
- When buying used, the most important check is the condition of the plastic mounting tabs on the back of the panel.
- FRONT door panels are interchangeable with 1999-2007 Ford F-250/F-350 Super Duty trucks, but REAR panels are unique to the Excursion.
- Replacement is a simple DIY job requiring only basic tools, with a difficulty rating of 2 out of 5.
Symptoms of a Failing Door Interior Trim Panel
Over time, the large plastic door panels on the Ford Excursion can develop issues due to age, sun exposure, and frequent use. Here are the most common symptoms to watch for:
1. Rattles and Squeaks
Annoying rattles, especially over bumps, are a very common complaint. These noises often originate from the plastic panel itself, loose internal components, or the clips that hold the panel to the door frame. Sometimes, the sound is simply the panel rubbing against the metal door shell. In other cases, the door latch striker may need adjustment to tighten the door's fit against the weatherstripping.
2. Cracked or Broken Plastic
The plastic, particularly around the armrest and pull handle area, can become brittle and crack. This is often caused by passengers using the armrest to pull the heavy Excursion doors shut. Cracks can also appear near screw mounting points if they were overtightened during a previous repair. Inspect the panel carefully for hairline fractures, especially if you hear creaking noises when using the armrest.
3. Loose or Collapsing Armrest
The armrest area is a major point of failure. If it feels spongy, loose, or has physically cracked, the underlying plastic structure is compromised. This not only makes for an uncomfortable ride but can also be a sign that the panel is about to fail completely in that area.
4. Malfunctioning Switches or Components
If your power window or door lock switches stop working, the problem could be the switch itself or the wiring. However, it can also be caused by a broken door panel. When the mounting points for the switch cluster break, the switches can become loose, causing the electrical connectors to lose contact. This also applies to the interior door handle and the courtesy light at the bottom of the panel.
Known Issues, TSBs, and Recalls for 2000-2005 Ford Excursion
While there are no specific recalls or Technical Service Bulletins (TSBs) for the interior door trim panel itself, several related issues are worth noting:
- Door Lock Actuators: A common problem on these vehicles is the failure of the power door lock actuators. This is an electrical and mechanical issue within the door, not a failure of the trim panel, but it often requires removing the panel to diagnose and repair. 🎬 Watch: How to replace a failing door lock actuator.
- Door Ajar Switch: The 'door ajar' light may stay on, draining the battery. This is typically caused by a faulty switch inside the door latch mechanism, which also requires panel removal for access.
- Recalls: The NHTSA database shows recalls for the 2000-2005 Excursion related to the speed control deactivation switch, headlamp switch, and potential engine stalling, but none directly involve the interior door trim panels.
Buying a Used Door Interior Trim Panel: What to Inspect
Purchasing a used OEM door panel is often the best choice for fit, color, and material quality. Aftermarket options are available but may not match the interior texture or color perfectly. Here’s what to check before you buy a recycled panel:
Pro Tip: The front door panels from a 1999-2007 Ford F-250 or F-350 Super Duty are a direct fit for the 2000-2005 Excursion. However, the rear door panels are NOT interchangeable; the Excursion's rear doors are a different size than a Super Duty crew cab's rear doors.
1. Inspect All Mounting Points
This is the most critical inspection. Turn the panel over and look at the back. There are numerous plastic hooks and slots for retaining clips that secure the panel to the metal door. Ensure these are all intact and not cracked or broken off. A panel with broken mounting points will never fit securely and will likely rattle.
2. Check for Structural Cracks
Pay close attention to the armrest and pull handle areas on both the front and back of the panel. Flex the armrest with your hand and look for any signs of cracking or weakness. Also, check the areas around the speaker grille and the top edge where the panel hangs on the door.
3. Verify Trim and Color
Ford Excursions came in several trim levels, such as XLT, Eddie Bauer, and Limited. While the base panel is the same, the cosmetic finishes differ. Limited and Eddie Bauer models often feature woodgrain accents on the switch plate area, whereas an XLT will have a plain finish. Ensure the color (Parchment/Tan, Medium Flint/Gray) and trim style match your vehicle's interior.
4. Confirm Power Options
These panels are designed for models with power windows and power door locks. They will have the necessary cutouts for the master switch panel. Ensure the panel you are buying matches the options on your truck.
Cost Comparison
Prices can vary significantly based on condition, location, and availability.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $450 - $700+ (if available) | Often discontinued or very difficult to find new. |
| New Aftermarket | $150 - $300 | Typically a bare shell. Quality, fit, and color match can be inconsistent. |
| Used OEM | $100 - $250 | Best value. Sourced from a vehicle of the same model, ensuring OEM fit and quality. |
| Shop Labor | $75 - $150 | Typically takes about 0.5 to 1.0 hour of labor per door. |
Replacement Overview (DIY Difficulty: 2/5)
Replacing a door panel on a 2000-2005 Excursion is a straightforward job that most DIYers can handle.
- Estimated Time: 30-60 minutes per door. 🎬 Watch this real-time, step-by-step door panel removal guide.
- Tools Required: 7mm socket or 9/32" socket, small flat-blade screwdriver, plastic trim removal tool.
- Procedure:
- Pry off the small triangular sail panel near the mirror.
- Pop up the master window switch control panel and disconnect the electrical connectors.
- Remove the two 7mm (or 9/32") screws. One is located under the switch panel you just removed, and the other is behind the courtesy light lens at the bottom of the door.
- Pry the courtesy light lens off with a small screwdriver to access the screw.
- Once the screws are out, lift the entire door panel straight up about an inch to unhook it from the top of the door, then pull it away.
- Disconnect the courtesy light bulb socket from the back of the panel by twisting it.
- Installation is the reverse of removal. Hook the top of the panel on the door first, then align the clips and press it into place before reinstalling the screws.
Warning: The plastic on these panels and the retaining clips can be brittle. Use a plastic trim tool instead of a screwdriver to avoid scratching or cracking the panel. When removing the master switch panel, pry from the front edge first.
Frequently Asked Questions (FAQ)
Will a door panel from a Ford F-250/F-350 fit my Excursion?
Yes and no. The FRONT door panels from a 1999-2007 F-250/F-350 Super Duty are a direct match for the front doors of a 2000-2005 Excursion. However, the REAR door panels will NOT fit. The Excursion has unique, larger rear doors compared to the Super Duty trucks.
My armrest is cracked, but the rest of the panel is fine. Can I just replace the armrest?
Unfortunately, the armrest is an integrated part of the door panel's plastic structure and is not sold as a separate component. Some owners have reported success with DIY repairs using epoxy or plastic welding for minor cracks, but for significant damage, replacing the entire panel is the only effective solution.
What's the difference between XLT, Eddie Bauer, and Limited door panels?
The main difference is cosmetic. Limited and Eddie Bauer trims typically have a simulated woodgrain appliqué around the window switch area. The XLT trim usually has a plain, textured finish in the same area. The underlying panel shape and mounting points are identical.

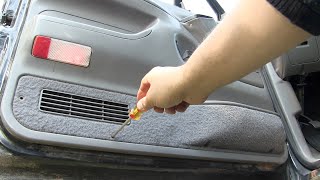

How can I fix a door panel that rattles?
First, ensure the two main retaining screws are tight. If the rattle persists, remove the panel and check for broken clips or mounting tabs. You can apply foam tape or 3M window weld ribbon to the contact points on the back of the panel to dampen vibrations and tighten the fit against the door frame. Sometimes, the rattle comes from loose items inside the door, like a window regulator bolt, which should be checked while the panel is off.
Helpful Videos
Technical Specifications
OEM Part Numbers: 2C7Z7827406BAA 2C7Z7827407BAA 5C7Z7827407AAA
Material: Molded plastic with vinyl, cloth, or leather inserts depending on trim. Designed for models with power windows and locks.
