2007-2012 Lexus ES350 Door Panel: A Guide to the 'Melting' Interior Problem
This article covers the common causes of failure for the 2007-2012 Lexus ES350 door panel, with a focus on the widespread 'sticky' or 'melting' interior issue and how to purchase a good used replacement.
- The primary reason for replacement is a 'sticky' or 'melting' surface caused by a known manufacturing defect.
- When buying used, your #1 priority is to verify the replacement panel is not already sticky or shiny.
- Driver's side panels are NOT interchangeable between cars with and without the Memory Seat option; check for the 'SET, 1, 2' buttons.
- A good used OEM panel is the most practical solution, as new OEM parts are very expensive and aftermarket versions are unavailable.
The 'Melting' Door Panel Defect
The most significant and widely reported issue with the 2007-2012 Lexus ES350 interior is the degradation of the plastic on the door panels and dashboard. Due to a manufacturing defect related to the plasticizer compound, the surfaces can become unpleasantly sticky, shiny, or 'melted' over time, especially when exposed to heat and humidity. This is not normal wear and tear; it's a known material failure. Fingerprints and marks can become permanent, and the surface is easily scratched or gouged.
Lexus acknowledged this problem by creating a Customer Support Program (CSP), initially under code ZLD and later ZLZ, which extended the warranty for this specific issue. These programs covered the replacement of affected panels at no cost to the owner. However, these programs had expiration dates and are no longer active for most vehicles. This means that if you are experiencing this issue now, the repair will likely be at your own expense, making the used parts market a popular solution.
Symptoms of a Failing Door Panel
While the 'melting' surface is the most common problem, other issues can require a door panel replacement.
- Sticky or Shiny Surface: The most obvious symptom is a tacky or gooey feeling on the upper sections of the panel and armrest. The surface may also appear unusually glossy.
- Cracked or Peeling Armrest: The driver and passenger armrests are high-contact areas. The synthetic leather can crack, peel, or the underlying foam can collapse from repeated pressure.
- Rattles and Squeaks: Over time, the plastic clips and mounting points on the back of the panel can become brittle and break. This results in a loose-fitting panel that rattles or buzzes with road vibration or when the stereo is playing.
- Warping: In areas with intense sun exposure, the main body of the panel can warp, causing it to pull away from the door frame, especially near the window sill.
Compatibility Warning: The driver's side door panel is different for vehicles equipped with the Memory Seat package. These panels have an extra set of buttons ('SET', '1', '2') for saving seat positions. A non-memory panel will not have the correct cutouts or wiring support for this feature. Always compare photos of the panel to your existing part to ensure a match.
Buying a Used 2007-2012 ES350 Door Panel: What to Check
Purchasing a used OEM door panel is often the best and most cost-effective solution. Aftermarket options are virtually nonexistent, and a new OEM panel is prohibitively expensive. Here’s what to inspect before you buy:
- Confirm It's Not Sticky: This is your top priority. Ask the seller for clear, well-lit photos of the entire surface. Look for a uniform, matte finish. A shiny, reflective surface is a major red flag for a panel that is already melting.
- Inspect All Mounting Points: Ask for photos of the back of the panel. Check that all the plastic towers that hold the push-in clips are intact and not cracked. Pay special attention to the screw bosses where the main screws attach (in the armrest and behind the door handle); these are critical for a secure fit.
- Check the Armrest Condition: Look closely at the armrest for any signs of cracking, splitting seams, or discoloration. Press on it (or ask the seller to) to ensure the foam underneath isn't completely collapsed.
- Verify Memory Seat Option: For the driver's side, double-check for the presence or absence of the memory seat button cutouts to match your vehicle's features.
- Match the Color: The ES350 came with several interior colors, including Black, Light Gray, and Cashmere (beige). Ensure the color code or description matches your car's interior to avoid a mismatch.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $730 - $1,040 |
| New Aftermarket | Not Generally Available |
| Used OEM | $100 - $300 |
| Shop Labor | $100 - $175 |
Installation Overview
Replacing the door panel is a relatively simple job that most DIY mechanics can complete. The process involves removing a few screws, prying the panel off, and disconnecting some electrical connectors and cables.
- Difficulty: 2/5
- Time: 0.5 - 1 hour
- Tools: Phillips screwdriver, non-marring plastic trim removal tool.
Basic Steps:
- Use a trim tool to pry off the small cover behind the interior door handle and remove the Phillips screw.
- Pry up the window switch control panel, disconnect its electrical connector, and remove the Phillips screw underneath.
- Lift the small felt pad in the bottom of the armrest pull-cup and remove the Phillips screw inside.
- Use a trim tool to gently pry around the outer edges of the door panel to release the plastic clips holding it to the door frame.
- Once the clips are free, lift the panel straight up to unhook it from the window sill.
- Carefully tilt the panel and disconnect the two cables for the door handle/lock and the electrical connector for the puddle light at the bottom.

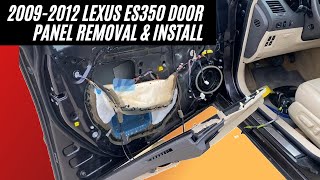

- Installation is the reverse of removal. 🎬 Watch this step-by-step walkthrough of the door panel removal process.
Pro Tip: When installing the replacement panel, hang it on the window sill first. Before snapping the clips in, connect the electrical plugs and door cables to ensure everything functions correctly. It's much easier to do this before the panel is fully secured.
Recalls and Technical Service Bulletins (TSBs)
There are no safety recalls directly related to the door interior trim panel itself. The 2007-2012 Lexus ES350 was subject to recalls for Takata airbag inflators, but this does not affect the trim panel.
Lexus issued Customer Support Programs ZLD and ZLZ to address the sticky/melting dashboard and door panel issue. These programs extended the warranty coverage for this specific condition. However, the primary and secondary coverage periods for these programs have expired for most, if not all, 2007-2012 vehicles. While you can contact a Lexus dealer, it is unlikely this repair will be covered for free at this point.
Frequently Asked Questions
Why is my Lexus door panel sticky?
The stickiness is caused by a manufacturing defect where the plastic materials degrade when exposed to heat and humidity over time. It is a widely known issue affecting many Toyota and Lexus models from this era.
Can I just clean the sticky surface?
Some owners report temporary success using specific cleaners, but this does not solve the underlying material degradation. Often, harsh cleaners can make the problem worse or damage the finish. 🎬 Check out these four cheap methods for cleaning sticky plastic. The most permanent solution is to replace the panel or have it professionally reupholstered.
🎬 See how to treat and fix a sticky Lexus dashboard.How do I know if a used door panel will fit my car with memory seats?
Look at the driver's side door panel, just in front of the armrest. A car with memory seats will have a small block of buttons labeled 'SET', '1', and '2'. A panel for a car without this feature will be blank in that area. You must match this to your vehicle's options.
Will a replacement used panel just become sticky again?
It's possible, but less likely if you source a part from a newer model year within the range or from a vehicle that lived in a cooler, less humid climate. When buying, inspect the photos carefully for any signs of shininess, which is the first stage of the degradation. A panel with a flat, matte finish is a much safer bet.
Helpful Videos
Technical Specifications
OEM Part Numbers: 67610-33A80-B0 67610-33B40 67610-33B40-A0 67610-33D80-C1
Available interior colors include Black, Light Gray, and Cashmere/Beige. Driver's side panel varies based on Memory Seat option.
