2020-2025 Lincoln Aviator Door Panel: A Buyer's Guide to Trim, Audio, and Color Variants

Key Compatibility Warnings: Match Trim, Audio, and Color

Replacing a door panel on a 2020-2025 Lincoln Aviator is more complex than on most vehicles. Fitment is highly dependent on the vehicle's specific trim level, audio system, and interior color. Ordering the wrong panel is a common and expensive mistake.

Trim Level Differences

Lincoln offered the Aviator in several trim levels, with the main ones being Premiere (Standard), Reserve, Grand Touring, and the top-tier Black Label. The door panels are often not interchangeable between these trims.

• Black Label vs. Other Trims: Black Label models feature exclusive, higher-end materials like unique leathers and real wood or metal accents that differ from the Premiere, Reserve, and Grand Touring trims. A door panel from a Black Label will not match the materials or fit correctly on a non-Black Label vehicle, and vice-versa. Many part listings explicitly state "Without black label".
• Premiere vs. Reserve: The Premiere (or Standard) trim uses Lincoln Soft Touch surfaces, while the Reserve trim upgrades to premium leather and genuine wood accents. This difference in material is immediately noticeable and will be a mismatch if the wrong panel is installed.

Audio System Variations

The Aviator was available with three different audio systems, and the door panels are designed specifically for each one. The speaker grilles are integrated into the panel and are a key visual differentiator.

• Standard System: Found on base models.
• Revel® Audio System: A 14-speaker system, standard on the Reserve trim, which features distinct metal speaker grilles.
• Revel® Ultima 3D Audio System: The top-end 28-speaker system, standard on Black Label, has unique speaker grilles and sometimes additional speaker locations in the door.

Interior Color Matching

Aviator interiors were available in multiple colors, such as Ebony (black), Roast, and Sandstone. A used door panel must match your vehicle's interior color code. Do not rely on photos alone, as lighting can be deceptive. The most reliable way to confirm your color is by checking your vehicle's original window sticker or contacting a Lincoln dealer with your VIN.

Symptoms of a Failing Door Panel

Failure of a door panel is typically related to physical damage or the loosening of components over time.

• Rattles and Buzzes: This is a common complaint. A specific, known issue on 2020-2023 models is a rattle from the front passenger door that sounds like a blown speaker. Ford issued Technical Service Bulletin (TSB) SSM 51539 for this, noting the cause is often the window control switch vibrating in its bezel. The fix involves applying felt tape to dampen the vibration. General rattles over bumps can also be caused by broken or loose mounting clips.
• Visible Damage: Scuffs, scratches, and tears in the leather or soft-touch material are the most frequent reasons for replacement.
• Broken Components: The plastic mounting points for switches, the door pull handle, or the armrest can crack or break, causing these parts to become loose. While a switch can be replaced, if its mounting points on the panel are broken, the entire panel must be replaced.
• Warping or Peeling: In high-heat climates, the leather or vinyl covering can sometimes begin to peel away from the plastic backing, especially around the armrest or upper window area.

Known Issues, TSBs, and Recalls

Technical Service Bulletin (TSB) SSM 51539

As mentioned, this TSB addresses a rattle or buzz from the front passenger door window control switch on 2020-2023 Aviators built before March 20, 2023. The noise is often mistaken for a speaker issue but is caused by vibrations between the switch and the bezel.

Exterior Trim Recall (NHTSA 25S66)

A major recall was issued for 2020-2025 Aviators concerning exterior C-pillar trim pieces that could detach while driving. This recall does NOT apply to the interior door trim panel. It is a common point of confusion, but the issue is with trim on the outside of the vehicle.

Buying a Used 2020-2025 Aviator Door Panel: A Checklist

Due to the high cost of new OEM panels, a used panel is an excellent value. However, careful inspection is crucial.

Step 1: Positively Identify Your Vehicle's Needs

• What is your trim level? (Premiere, Reserve, Black Label, etc.)
• What is your audio system? (Standard, Revel, or Revel Ultima 3D) Look at the speaker grilles.
• What is your interior color? (Ebony, Sandstone, etc.)
• Which door is it? (Front Left/Driver, Front Right/Passenger, Rear Left, Rear Right)

Step 2: Physical Inspection of the Used Panel

• Check All Mounting Clips and Tabs: Flip the panel over. Carefully inspect all the plastic clips and mounting points around the perimeter and in the center. These are fragile and can easily break during removal. A panel with broken clips will not sit flush and will likely rattle.
• Inspect Switch and Handle Mounts: Check the integrity of the plastic structures where the window switch, door handle, and armrest attach. Look for stress marks (white lines in the plastic) or outright cracks.
• Examine the Surface: Look for deep scratches, punctures, or peeling material that may not have been visible in photos. Pay close attention to the armrest, which sees the most wear.
• Verify the Speaker Grille: Ensure the speaker grille matches your audio system and is free of dents or damage.

Why Used OEM is Often the Only Choice

For a luxury vehicle like the Aviator, new aftermarket door panels are not commonly available. The complexity of the fit, materials, and integrated electronics makes them difficult to reproduce. A used OEM panel ensures you get the original factory quality, fit, and material match, often at a fraction of the cost 🎬 See this similar Ford Explorer door panel removal for reference. of a new one from the dealer.

Replacement Overview

Replacing the door panel is a manageable DIY task for someone with basic tools and patience. The process involves removing a few screws and then carefully prying the panel off to release the plastic clips.

• Tools Needed: Plastic trim removal tool kit, 10mm socket, 7mm socket, small flathead screwdriver.
• Basic Steps:
  1. Disconnect the negative battery terminal.
  2. Use a pry tool to remove the trim piece behind the door handle and the window switch assembly.
  3. Remove the 10mm screw behind the door handle trim and the two 7mm screws at the bottom of the panel.
  4. Starting from the bottom, use a trim tool to pop the clips holding the panel to the door frame.
  5. Once the clips are free, lift the panel up and off the window channel.

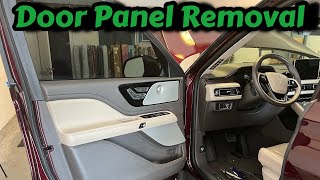

  6. Carefully disconnect the multiple electrical connectors and the door latch cable before fully removing the panel. 🎬 Watch: This step-by-step video shows how to remove the panel. Take a photo beforehand to remember their locations.
