2004-2013 Mazda 3 Door Panel: Fixing Peeling Fabric & Sticky Surfaces

Symptoms of a Failing Door Interior Trim Panel

Failures of the Mazda 3 door panel are typically cosmetic or physical, rather than electrical. Here are the most common signs that your panel needs attention or replacement:

• Peeling Fabric or Vinyl: The cloth or vinyl inserts, especially around the armrest, begin to bubble, peel, or sag. This is the most common issue on first-generation models.
• Sticky or Melting Surfaces: The upper portion of the panel and armrest can develop a sticky, shiny, or gooey texture. This is a well-known problem on second-generation models and is caused by the plastic degrading in heat and humidity. This can also create a dangerous glare on the side windows.
• Rattling or Buzzing Noises: As the panel ages, the plastic clips that hold it to the metal door frame can become brittle and break. A loose panel will vibrate against the door, creating annoying noises, especially at certain speeds or when the stereo is on.
• Loose Fit: The panel may not sit flush against the door, creating visible gaps. This is almost always caused by broken or missing mounting clips, often from a previous repair where the clips were not replaced.
• Cracks and Physical Damage: Simple wear and tear, sun exposure, or impacts can cause the plastic to crack, especially around high-stress areas like the door pull handle or speaker grille.

Known Issues for 2004-2013 Mazda 3 Door Panels

The 2004-2013 Mazda 3 spans two distinct generations, each with its own specific door panel problems.

First Generation (2004-2009): Peeling Fabric Inserts

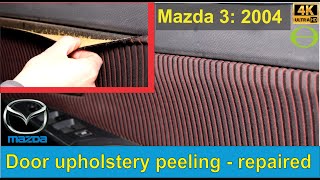

The primary complaint for first-generation (BK) models is the separation of the fabric inserts. The foam layer between the fabric and the plastic panel deteriorates over time, turning into a powder and causing the adhesive to fail. This results in the fabric bubbling and peeling away from the door. While it looks bad, it is repairable. 🎬 Watch this guide on repairing peeling door upholstery yourself. Many owners choose to remove the panel, scrape off the old foam and adhesive, and re-apply the original fabric or new material using a high-strength spray adhesive.

Second Generation (2010-2013): Sticky, Melting Plastic

The second-generation (BL) models are notorious for a defect where the dashboard and upper door panel plastics degrade in heat and sunlight. The material becomes soft, sticky, and shiny, attracting dust and being impossible to clean. Mazda issued a warranty extension program for the *dashboard* due to this issue, but the door panels were also affected. By now, this warranty has expired for nearly all vehicles. A used replacement panel is the most common solution, but it's crucial to inspect it for the same issue.

Buying a Used Mazda 3 Door Panel: What to Check

A used OEM panel is often the best value, offering original fit and quality at a much lower price than a new part. However, careful inspection is critical.

1. Verify Compatibility (This is CRITICAL)

Mazda 3 door panels are not one-size-fits-all. You must match these four criteria exactly:

• Generation: First-gen (2004-2009) and second-gen (2010-2013) panels are not interchangeable.
• Body Style: Panels for a 4-door Sedan will NOT fit a 5-door Hatchback, and vice-versa.
• Position: Front Left (Driver), Front Right (Passenger), Rear Left, and Rear Right are all unique parts.
• Color & Material: Interiors came in different colors (black, beige) and materials (cloth, vinyl/leather). Ensure the panel matches your car's trim.

2. Inspect All Mounting Points

This is the most important physical check. Flip the panel over and inspect every single clip slot and screw boss. These are the plastic loops and holes where the panel attaches to the door. They are often broken when a panel is removed carelessly. A panel with broken mounting points will never fit tightly and will likely rattle.

3. Check for Common Failures

• For Gen 1 (04-09): Check the edges of the fabric inserts. Is it already peeling? If so, be prepared to re-glue it. Press on the fabric; if it feels crunchy, the underlying foam is deteriorating.
• For Gen 2 (10-13): Look closely at the top edge and armrest under a bright light. Check for a sticky or overly shiny surface that indicates the plastic is degrading.

4. Examine High-Wear Areas

Look for cracks or deep scuffs on the armrest, the door pull cup, and the speaker grille. Check the condition of the window switch bezel, as these are often sold with the panel. If the switches are included, it's a bonus, but you can usually transfer your old switches into the replacement panel.

Cost Comparison: New vs. Used Mazda 3 Door Panels

Prices can vary based on condition, location, and included components like switches.

Replacement Overview & Difficulty

Replacing a Mazda 3 door panel is a straightforward job that is very achievable for a DIYer.

• Difficulty: 2 / 5
• Estimated Time: 30-60 minutes
• Tools Required: Phillips head screwdriver, plastic trim removal tool kit.

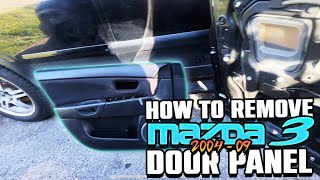

Step-by-Step Process

1. Disconnect the negative battery terminal to be safe.
2. Using a small flathead or trim tool, carefully pry off the small plastic covers hiding screws. These are typically located inside the door pull handle and behind the interior door latch handle.
3. Remove the revealed Phillips head screws.
4. Starting from the bottom edge, use a plastic trim removal tool to pry the panel away from the door. You will hear the clips pop as they release. Work your way up both sides.
5. Once all clips are released, lift the panel straight up to unhook it from the top of the window sill.
6. Don't pull the panel away completely. It is still attached by the window switch wiring and the door handle cables.
7. Disconnect the electrical connectors by pressing their release tabs. Disconnect the door handle and lock cables, which usually unhook from the handle assembly.
8. Installation is the reverse of removal. Connect the cables and wires, hook the top of the panel onto the window sill, and then firmly press the panel into the door to engage the clips. Re-install the screws and covers.

Frequently Asked Questions (FAQ)

Compatible Part Numbers

The following is a list of known OEM part numbers for the 2004-2013 Mazda 3. Due to the numerous variations in color, material, and position, this list is not exhaustive. Always verify the exact part number for your VIN before ordering.

• BAP1-68-55YB-72
• BBM4-68-560H-74
• BBM4-68-560N-02
• BBN6-68-530H-10
• BGV2-68-530A-02
• BGW2-68-560-02
