2010-2015 Toyota Prius Door Panel: Fixing Rattles and Broken Armrests

Symptoms of a Failing or Damaged Door Panel

While a door panel doesn't mechanically 'fail,' it can suffer from wear and damage that leads to noticeable problems. These issues are typically related to cosmetics, noise, or the failure of components attached to the panel.

Rattles and Buzzing Noises

One of the most frequent complaints from owners is a rattling or buzzing sound coming from the door area, especially on rough roads. This is often caused by plastic clips that have broken or become loose over time. These clips hold the panel securely to the metal door frame, and when they fail, the panel can vibrate. Loose wiring or internal components can also rattle against the inside of the panel.

Broken or Collapsed Armrest

The driver's side armrest is particularly prone to breaking. The armrest portion is attached to the main panel with plastic posts that are melted or welded into place. Over time, with repeated pressure from the driver's elbow, these plastic attachment points can snap, causing the armrest to feel loose, sink into the door, or collapse entirely.

Cosmetic Damage

Scuffs, scratches, and tears in the fabric or SofTex (leatherette) material are common signs of wear. The speaker grilles can become cracked or broken, and the silver trim pieces can get scratched or have their finish peel. Damage can also occur around the window switch and door handle bezels.

Buying a Used 2010-2015 Prius Door Panel

Because new OEM door panels can be very expensive, a used OEM panel is often the best value. However, careful inspection is required to ensure you get a good, compatible part.

Key Compatibility Checks

• Vehicle Model: These panels fit the standard Prius liftback model only. They are NOT compatible with the Prius V (wagon) or Prius Plug-In models.
• Year Range: The door panels are physically interchangeable across the entire 2010-2015 generation. However, there may be slight variations in color or texture between the 2010-2011 and 2012-2015 models due to a mid-cycle refresh. Always compare photos closely.
• Audio System: This is a critical point. Panels for cars with the standard audio system are NOT interchangeable with those equipped with the premium JBL audio system. The JBL system uses a different speaker, and the grille on the door panel is shaped differently. Look for the 'JBL' logo on the radio or speaker grilles to confirm which system your car has.
• Trim Level & Color: The Gen 3 Prius was available with different interior materials and colors. Lower trims typically used cloth fabric, while higher trims like the Prius Four and Five used a leatherette material called SofTex. The main interior colors were Gray and Bisque (a light beige). Ensure the material and color match your existing interior.

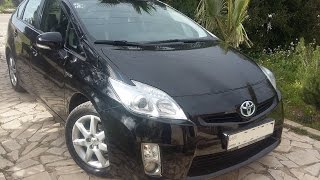

🎬 See this guide to Gen 3 Prius trim levels
• Position: Verify the exact door: Front Driver (LH), Front Passenger (RH), Rear Driver (LH), or Rear Passenger (RH).

What to Inspect on a Used Panel

1. Check All Mounting Clips & Posts: Flip the panel over. Look for any broken or missing white or yellow plastic clips. More importantly, inspect the plastic towers on the panel where the clips attach. If these are cracked or broken, the panel will not sit flush and will rattle.
2. Inspect the Armrest Structure: Pay close attention to the plastic welds holding the armrest to the main panel. Look for cracks or signs of previous repair (e.g., excessive glue). Press firmly on the armrest from the front to ensure it feels solid.
3. Examine Speaker Grilles: Check for any cracks or broken tabs on the speaker grille, which is integrated into the panel.
4. Look for Water Damage: Check the fiberboard backing at the bottom of the panel for any signs of swelling or discoloration, which could indicate the vehicle had water leaks.

Known Issues, TSBs, and Recalls

There are no recalls or major Technical Service Bulletins (TSBs) from Toyota specifically for the interior door trim panel itself. However, owner forums are filled with discussions about rattles and broken armrests.

A recall was issued for some 2023-2026 Prius models for an issue where water could enter the rear door latch switches, potentially causing the doors to open unexpectedly, but this does not apply to the 2010-2015 generation.

Replacement Overview and Difficulty

Replacing a door panel on a 2010-2015 Prius is a straightforward job suitable for a DIYer with basic tools.

• Difficulty: 2 out of 5
• Estimated Time: 0.5 - 1 hour
• Tools Needed: Phillips screwdriver, plastic trim removal tool set, small flathead screwdriver.

Basic Replacement Steps (Front Door):

1. Pry off the small trim cover behind the interior door handle and remove the Phillips screw.
2. Pry up the silver trim piece on the door pull handle.
3. Lift out the master window switch assembly.
4. Remove the rubber mat inside the door pull pocket and remove the Phillips screw hidden underneath.
5. Using a plastic trim tool, carefully pry around the outer edges of the door panel to release the plastic clips. Start from the bottom.
6. Once all clips are free, lift the panel straight up and off the top of the door frame.
7. Disconnect the electrical connectors for the window switch and courtesy light, and unhook the two cables for the door handle and lock.
8. Installation is the reverse of removal. 🎬 Watch: Step-by-step front door panel removal tutorial Be sure to transfer any clips that remained in the metal door back onto the new panel before installation.
