2001-2005 Lexus IS300 Door Latch: Your Guide to Fixing Failed Power Locks
A complete reference for diagnosing, replacing, and buying a door latch assembly for the first-generation Lexus IS300 sedan.
- The most common failure is the internal electric motor of the door lock actuator, not the mechanical latch.
- Assemblies are door-specific; the part for the front-left door is different from the front-right, rear-left, and rear-right.
- These parts are for the 4-door sedan only and will not fit the 5-door SportCross wagon.
- Replacing the entire assembly with a used OEM or new Aisin (OEM manufacturer) part is often easier and more reliable than attempting to repair the internal motor.
Symptoms of a Failing IS300 Door Latch Assembly
When the door latch assembly begins to fail, the symptoms are almost always related to the electronic locking function, as the internal motor is the component that wears out. Here are the most common signs:
- Power Locks Don't Work: One or more doors will not lock or unlock when using the key fob or the central locking switch on the door panel. You will likely still be able to lock and unlock the door manually using the interior lock tab or the physical key in the driver's door.
- Intermittent Operation: The lock may work sometimes but not others. This is a classic sign of a dying actuator motor. Many owners report that the problem is worse in hot or cold weather, as temperature changes can affect the worn internal components.
- Weak or Slow Locking: You might notice the interior lock tab moving very slowly or only part of the way when you use the power locks. This indicates the motor is losing strength and is about to fail completely.
- Buzzing or Grinding Noises: When you press the lock or unlock button, you may hear an unusual buzzing or grinding sound from inside the door. This can be the sound of stripped plastic gears or the motor struggling to operate. Even if you hear a noise, the lock may not engage, which points to a weak or broken actuator.
Buying a Used 2001-2005 IS300 Door Latch Assembly
Buying a used door latch assembly is a popular and cost-effective solution, especially since the failure point is almost always the electronic actuator, not the robust mechanical latch. A good used OEM part is often a better choice than a cheap, new aftermarket unit due to superior fit and material quality. Here’s what to look for:
- Verify the Correct Position: Each door latch assembly is unique to its position. The front left (driver), front right (passenger), rear left, and rear right are all different parts. Ensure the part you are buying is for the exact door you need to repair. The OEM part numbers 69340-53020 and its replacement 69340-53021 are specifically for the Left Rear Door.
- Why Used OEM is a Good Option: The original equipment manufacturer for Lexus was Aisin. These parts are built to a high standard. The mechanical latch portion rarely fails. A used OEM assembly from a lower-mileage vehicle can provide years of service for a fraction of the cost of a new part from the dealer.
- Physical Inspection: Check the plastic housing for any cracks or damage. Inspect the cables and electrical connector to ensure they are intact and not frayed. While it's difficult to test the motor without installing it, you can ask the seller if they can apply 12V power to the connector pins to confirm the actuator motor runs.
- Compatibility Warning: These parts are for the 4-door sedan models only. They will not fit the 5-door SportCross wagon, which has different rear doors and latch mechanisms.
Pro Tip: Many DIYers attempt to save money by replacing only the small electric motor inside the actuator assembly. While the motor itself is inexpensive (around $10), it requires carefully prying open the sealed plastic actuator housing, replacing the motor, and reassembling it. This can be a difficult and tedious process. For most people, replacing the entire used assembly is a much faster and more reliable repair.
Known Issues, Recalls, and TSBs
There are no official recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA for failing door latch assemblies on the 2001-2005 IS300. However, the failure of the door lock actuators is an extremely common and well-documented problem in owner forums like ClubLexus and my.is. This issue is not unique to the IS300 and affects many Toyota and Lexus vehicles from this era that use the same actuator design.
Cost Comparison
The cost can vary significantly depending on the source of the part. Labor for a professional installation typically runs for 1.5 to 2.5 hours.
| Part Type | Estimated Price Range |
|---|---|
| New OEM (Lexus Dealer) | $145 - $210 |
| New Aftermarket (Aisin/Dorman) | $40 - $100+ |
| Used OEM (Recycled) | $35 - $75 |
| Shop Labor Cost | $180 - $300 |
Replacement Overview & Difficulty
Replacing the door latch assembly is feasible for a DIYer with basic tools and patience. The process involves working in a tight space inside the door.
- Difficulty: 3 out of 5
- Estimated Time: 1.5 - 2.5 hours
- Tools Required: Phillips screwdriver, trim panel removal tool, 10mm socket/wrench, T30 Torx bit.
General Steps:
- Disconnect the car battery.

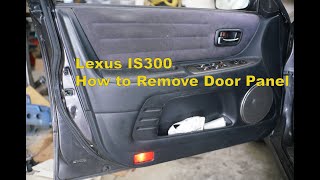

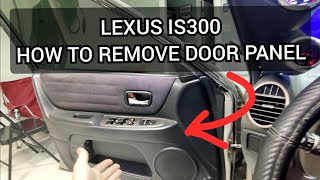

- Remove the interior door panel. 🎬 Watch this guide to safely remove the front door panel. This involves removing several screws (one in the door pull handle, one behind the interior handle) and carefully prying off the panel to release the plastic clips.
- Disconnect the electrical connectors for the window switch and door light.
- Carefully peel back the plastic vapor barrier to gain access inside the door.
- Disconnect the metal rods from the exterior handle and interior lock tab. This is often the trickiest part, involving small plastic clips that need to be un-snapped.
- Disconnect the electrical connector from the latch assembly.
- Unbolt the three T30 Torx screws from the side of the door that hold the latch in place.

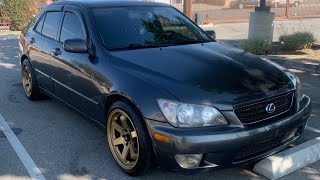

- Maneuver the old assembly out of the door and install the new one by reversing the steps. 🎬 See a complete walkthrough of the front door actuator replacement.
Warning: Be careful when handling the metal rods and plastic clips, as they can be brittle and break easily. Taking a photo of the rod connections before disassembly can be very helpful for reassembly.
Frequently Asked Questions (FAQ)
Can I just replace the motor instead of the whole assembly?
Yes, it is possible to replace only the small electric motor inside the actuator, and many DIY guides are available. However, the actuator housing is not designed to be opened and must be carefully pried apart. This is a more advanced repair. 🎬 Check out this video for an easier actuator repair method. For most people, replacing the complete assembly is faster and more reliable.
Is the door latch the same for the front and rear doors?
No, all four door latch assemblies are different and position-specific. You must purchase the correct part for the specific door you are repairing (e.g., Front Left, Rear Right).
Will a door latch from a Toyota Altezza fit my Lexus IS300?
Yes, most likely. The Lexus IS300 was sold as the Toyota Altezza in Japan and other markets. The parts are generally identical, but it is always best to verify compatibility by matching the OEM part numbers stamped on the part itself.
Do I need to do any programming after installing a new latch?
No, the door latch assembly is a direct mechanical and electrical part. No programming or special calibration is required after installation. It is a plug-and-play replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: 69340-53020 69340-53021
Position: Rear Left Door. Fits 4-Door Sedan models only.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
