2014-2019 Toyota Corolla Door Latch: Fixing Doors That Won't Lock or Open
Your definitive guide to diagnosing, replacing, and buying a used door latch assembly for the 2014-2019 Corolla, including the critical compatibility warning for vehicles without the Smart Key system.
- The most critical step is verifying compatibility: these parts are for Corollas WITHOUT the Smart Key (push-button start) system.
- Failure is almost always the internal electric actuator motor, causing a single door's power lock to stop working.
- A used OEM latch assembly is a reliable and cost-effective alternative to cheap aftermarket parts that may fail prematurely.
- Replacement is a moderately difficult DIY job that requires removing the interior door panel to access the latch.
Common Failure Symptoms
When the door latch assembly begins to fail, the symptoms are usually related to the electric actuator motor inside the unit. The mechanical latch itself is robust, but the small motor is a common point of failure. Here’s what to look for:
- Power Locks Don't Work on One Door: You press the lock or unlock button on your remote or door switch, and all doors respond except for one. This is the most common sign of a bad actuator in that specific door.
- Strange Noises From the Door: A buzzing, grinding, or clicking sound from inside the door when you use the power locks indicates the actuator's motor is struggling or its internal gears are stripped.
- Erratic or Intermittent Operation: The door lock may work sometimes but not others. It might lock or unlock itself randomly, a condition sometimes called "ghost locking." This points to an electrical fault or a motor that is about to fail completely.
- Sluggish Lock Movement: The lock knob moves slowly or only partially when you use the power lock function. This suggests the actuator motor is weak and losing torque due to wear.
- Manual Lock is Difficult to Operate: In some cases, a failing actuator can create internal resistance, making it hard to lock or unlock the door manually with the key or the interior lock knob.
Known Issues, Recalls, and Legal Action
While there are no specific recalls for the door latch assembly itself on the 2014-2019 Toyota Corolla, these components are the subject of a broader class-action lawsuit filed against Toyota. The lawsuit alleges that the door lock actuators in many Toyota models, including the 2014-2019 Corolla, are prone to premature failure, creating a safety risk. The suit claims occupants could become trapped in an emergency or that doors could fail to secure, leaving the vehicle vulnerable to theft. As of late 2024, Toyota has not issued a recall for this specific issue.
Separately, some 2014-2019 Corollas were part of a safety recall (NHTSA Campaign 20TA03) for an airbag control module issue, which is unrelated to the door latches.
Critical Compatibility Warning: This part is for 2014-2019 Toyota Corolla models with standard power locks and a traditional metal key. It will NOT work on models equipped with the Smart Key system (push-button start and passive keyless entry). The assemblies are different. Always verify your vehicle's options before purchasing.
Buying a Used 2014-2019 Corolla Door Latch: What to Check
A used OEM door latch assembly is often a smart, cost-effective choice compared to expensive new OEM parts or potentially unreliable new aftermarket units. Here’s how to buy a good one:
- Confirm Your System (Smart Key vs. Standard Key): The most important step. Does your car have a push-button ignition? If so, you have the Smart Key system and need a different part. If you use a physical key in the ignition, you have the standard system this guide covers. Many used parts listings on sites like eBay explicitly state "without keyless entry" or "without push start."
- Match the Part Number and Door Position: Each door uses a unique latch assembly. They are not interchangeable. Verify the OEM part number and ensure you are buying for the correct position (e.g., Front Left/Driver, Front Right/Passenger, Rear Left, Rear Right). Known front door part numbers for standard key models include 69030-02370 and 69030-02380.
- Physical Inspection:
- Electrical Connector: Look at the pins inside the connector. They should be clean, straight, and free of any green or white corrosion.
- Plastic Housing: Check for cracks or significant damage to the black plastic housing.
- Cables and Levers: Ensure the small levers where the door handle rods connect move freely and are not broken.
- Why Used OEM is Often Better: Original Equipment Manufacturer (OEM) parts are built to Toyota's exact specifications for fit and material quality. While some aftermarket brands like Dorman are well-regarded, many cheaper aftermarket actuators can have a shorter lifespan or poorer fitment. A low-mileage used OEM part often provides the best balance of quality and value.
Replacement Overview & Difficulty
Replacing the door latch assembly is a moderately difficult job that a patient DIYer can accomplish. The process involves removing the interior door panel to gain access.
- Difficulty: 3 out of 5
- Estimated Time: 1.5 - 2.5 hours
- Tools Required: Trim removal tools, Phillips screwdriver, 10mm socket, and a Torx T30 bit.
General Steps:
- Disconnect the Battery: Disconnect the negative battery terminal to prevent any electrical issues.
- Remove the Door Panel: This involves prying off trim pieces (like the window switch panel and a cover behind the interior door handle) to access hidden screws.
- Peel Back the Vapor Barrier: Carefully peel back the plastic sheet (vapor barrier) to expose the inside of the door. Try not to tear it.
- Disconnect Rods and Cables: Unclip the metal rods and/or cables that connect the latch to the interior and exterior door handles and the lock knob.
- Unbolt the Latch: Remove the three Torx T30 screws on the side of the door that hold the latch assembly in place.
- Remove and Replace: Maneuver the old assembly out of the large access hole in the door, transfer any necessary cables to the new part, and install the new assembly by reversing the steps. 🎬 See this step-by-step door lock actuator replacement walkthrough
Pro Tip: Before you put the door panel back on, reconnect the battery and test the new latch assembly thoroughly. Use a screwdriver to engage the latch mechanism (simulating the door closing) and test the power lock, manual lock, and both interior and exterior handles to ensure everything works correctly. This saves you from having to take the door apart again if something isn't connected right.
Cost Comparison
Prices can vary based on location and supplier, but here is a general cost breakdown:
| Part Type | Estimated Cost |
|---|---|
| New OEM | $250 - $380 |
| New Aftermarket (Dorman, etc.) | $60 - $150 |
| Used OEM | $45 - $120 |
| Shop Labor | $140 - $250 |
Frequently Asked Questions (FAQ)
Can I just replace the small electric motor inside the assembly?
While it is technically possible for someone with advanced skills to disassemble the unit and replace only the small DC motor, it is not a common or recommended repair. The assemblies are sold as a sealed unit, and replacing the entire latch assembly is the standard, most reliable procedure.
How do I know for sure if I have the Smart Key system?
The easiest way to tell is by how you start the car. If your car has a "Push to Start" button on the dashboard, you have the Smart Key system. If you insert a traditional metal key into an ignition cylinder on the steering column to start the car, you have the standard system.
Is the front door latch the same as the rear door latch?
No, they are different parts. The front and rear doors, as well as the left and right sides, all use unique part numbers. 🎬 Watch: How to remove the rear door panel You must order the specific latch for the door you are repairing.
All of my power locks stopped working at once. Is it still the actuators?
If all doors fail simultaneously, the problem is less likely to be four failed actuators. It is more likely a central issue, such as a blown fuse, a bad relay, or a problem with the main door lock switch or body control module. If only one door fails, the actuator in that door is the primary suspect.
🎬 Watch: Diagnosing why your Corolla door won't lock or unlockHelpful Videos

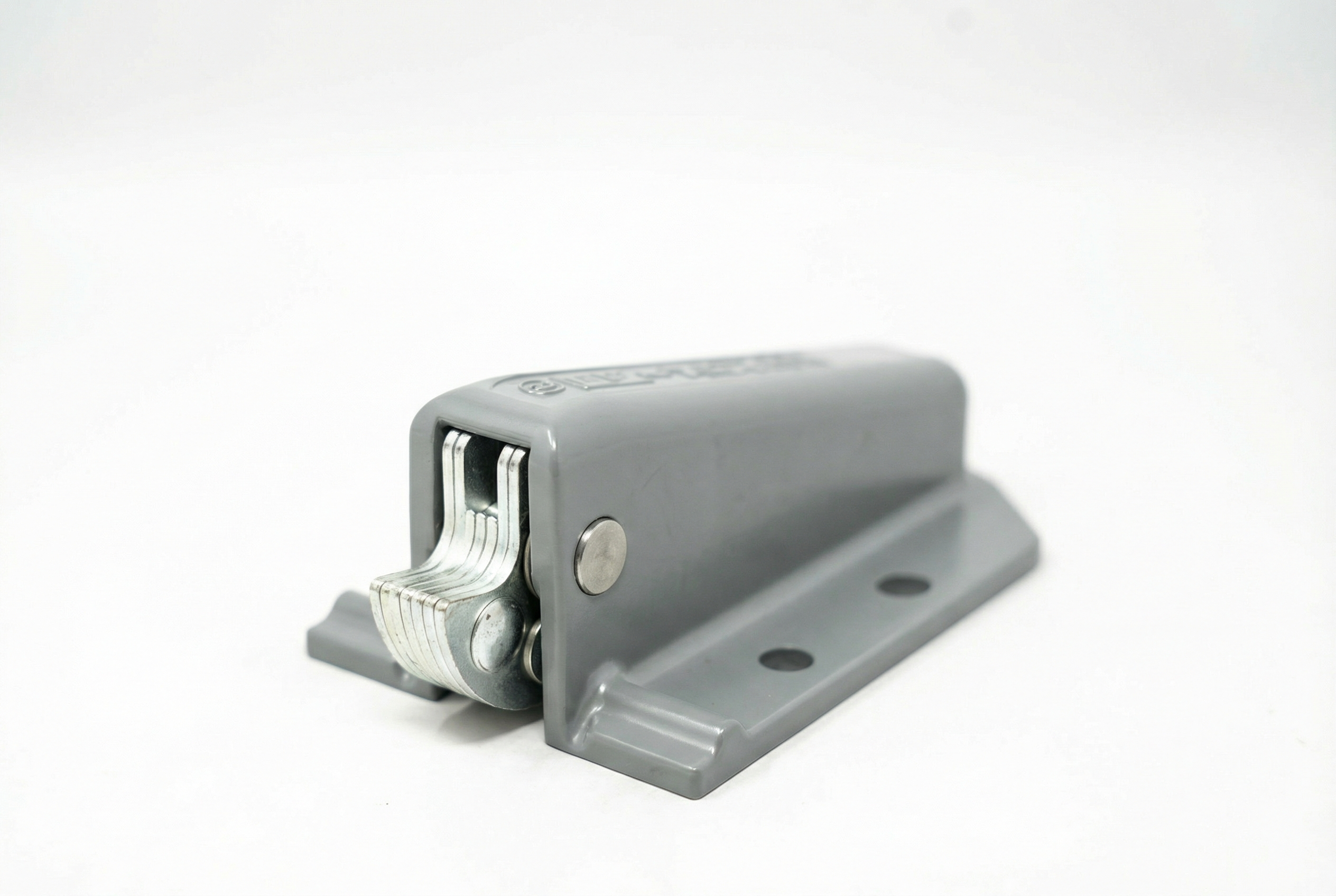

Technical Specifications
OEM Part Numbers: 69030-02370 69030-02380 69040-02440 69050-02350 69060-02340 69050-02340 69060-02350
Integrated assembly including mechanical latch, electric actuator motor, and door status sensor. Designed for vehicles with a standard ignition key, not push-button start.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
