2012-2015 Toyota Prius Door Lock Actuator: Failure Symptoms and Replacement Guide
A detailed look at why the power door locks fail on the 2012-2015 Prius, and how to diagnose and replace the faulty actuator assembly.
- The most common symptom of failure is a single door not responding to the remote or interior lock switch.
- Failure is typically due to a worn-out internal motor, a common issue for this vehicle generation.
- There are no specific recalls for this part, so repair costs are the owner's responsibility.
- When buying a used part, it is critical to match the OEM part number exactly for your specific door (e.g., Front Right, Rear Left).
Symptoms of a Failing Door Lock Actuator
Failure of the door lock actuator is a common issue on many Toyota vehicles of this era, including the 2012-2015 Prius. The problem typically stems from the small internal motor wearing out over time. When an actuator starts to fail, you may notice one or more of the following symptoms:
- One Door Stops Responding: The most common symptom is when a single door fails to lock or unlock with the remote or interior switch, while the other doors work correctly. You'll have to lock or unlock that door manually using the physical key or the interior lock tab.
- Strange Noises: A buzzing, grinding, or clicking sound may come from inside the door when you operate the power locks. This is often the sound of worn or broken plastic gears inside the actuator trying to engage.
- Erratic Operation: The door locks may behave unpredictably. They might lock or unlock themselves randomly, sometimes even while driving. This is often called "ghost locking" and points to an internal fault in the actuator.
- Slow or Weak Movement: The lock may move sluggishly or only part-way. This indicates the internal motor is losing strength and is a clear sign of impending failure.
- Lock/Unlock Cycling: When you try to lock the doors, you might hear them immediately unlock. This can happen when the system detects that one door has failed to lock properly and, as a safety measure, unlocks the other doors.
Known Issues, Recalls, and Service Bulletins
While door lock actuator failure is a widely reported problem among owners, there have been no official safety recalls issued by the National Highway Traffic Safety Administration (NHTSA) for this specific part on the 2012-2015 Toyota Prius. A proposed class-action lawsuit has been filed concerning premature failure of these actuators on various Toyota models, alleging the issue is a known defect. However, at this time, replacement is a customer-pay repair. Recalls for the 2012-2015 Prius do exist for other issues, such as an EV mode fuse and hybrid system inverter problems, but these are unrelated to the door locks.
Warning: A recall for newer (2023-2024) Prius models regarding water entry into a rear door switch does NOT apply to the 2012-2015 generation. Ensure you are referencing information for the correct model year.
Buying a Used Door Lock Actuator: What to Check
Purchasing a used OEM door lock actuator can be a cost-effective solution, as they are often more reliable than cheaper aftermarket alternatives. However, it's important to inspect the part carefully.
- Verify the Part Number: The most critical step. Ensure the part number on the used actuator matches your original part. The provided OEM part numbers 69030-47060 and 69030-47110 are for the front right (passenger) door. Part numbers are specific to each door (Front Left, Front Right, Rear Left, Rear Right), so be sure you are buying the correct one.
- Physical Inspection: Check the plastic housing for any cracks or damage. Inspect the electrical connector pins to ensure they are straight and free of corrosion.
- Shake Test: Gently shake the actuator. Excessive rattling could indicate broken internal components.

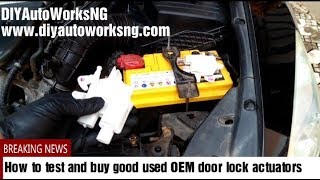

- Bench Test: If possible, test the actuator before purchasing. This can be done with a 12V power source (like the car battery) and some test leads. Applying power to the correct two pins on the connector should cause the lock mechanism to move from one position to the other. Reversing the polarity should move it back. An actuator 🎬 Watch: How to bench test the actuator before installation. that doesn't respond or sounds weak during this test is a bad part.
- Seller Reputation: Buy from a reputable seller that offers a warranty. This provides a safety net in case the part is defective.
Cost of Replacing a Prius Door Lock Actuator
Dealership replacement can be expensive, often costing over $400 for a single door. By choosing a used OEM or quality aftermarket part and performing the labor yourself or using an independent shop, you can significantly reduce the cost.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $250 - $415 |
| New Aftermarket (Dorman, Standard) | $50 - $150 |
| Used OEM | $40 - $85 |
| Shop Labor | $140 - $235 |
Replacement Overview & Difficulty
Replacing a door lock actuator is a feasible DIY project for someone with basic mechanical skills and tools. The process generally takes 1-2 hours per door.
- Difficulty Rating: 3 out of 5
- Tools Needed: Phillips and flat-blade screwdrivers, trim removal tools, 10mm socket, T30 Torx driver.
The basic steps involve:
- Removing the interior door panel, which is held by screws (often hidden behind small covers) and clips.
- Carefully peeling back the plastic weather barrier to access the inside of the door.
- Disconnecting the electrical connector and the mechanical rods/cables that link the actuator to the door handles and lock cylinder.
- Unbolting the three T30 Torx screws from the side of the door that hold the actuator in place.

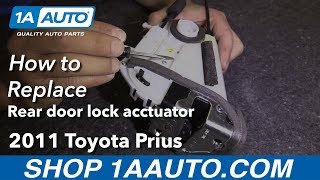

- Maneuvering the old actuator out of the door and installing the new one in the reverse order. 🎬 See this step-by-step guide for replacing the rear actuator.
Pro Tip: After installing the new actuator but before reassembling the door panel, reconnect the electrical plug and test the lock/unlock function with your key fob. This ensures the part is working correctly before you put everything back together.
Frequently Asked Questions (FAQ)
Do I need a special actuator for a Prius with the Smart Key system?
The initial warning about Smart Key compatibility is important. While the actuator itself is often the same, the locking system logic is different. The most reliable method is to match the part number from your original actuator. The provided part numbers (69030-47060, 69030-47110) are for the front passenger door. Always verify the part number for the specific door you are replacing.
Can I just replace the small motor inside the actuator?
Yes, this is possible and is the cheapest repair option. It involves disassembling the actuator housing, removing the small DC motor, and soldering a new one in its place. This is a more advanced repair that requires careful work but can fix the problem for under $20. However, for most people, replacing the entire actuator assembly 🎬 Watch: How to replace the internal motor for a cheaper fix. is a faster and more reliable repair.
All my doors stopped working at once. Is it still the actuators?
It's unlikely that all actuators would fail at the exact same time. If all power locks stop working simultaneously, the problem is more likely upstream. Check the power lock fuse first. The issue could also be with the master switch in the driver's door or the body control module, which controls the system.
My mechanical key won't work after replacing the actuator. What did I do wrong?
This is a common mistake during reassembly. You likely forgot to reconnect the metal rod that runs from the key lock cylinder to the actuator assembly. You will need to remove the door panel again and ensure all mechanical linkages, including the one for the key cylinder, are properly clipped back into place.

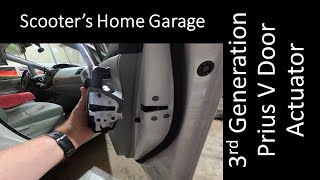

Helpful Videos
Technical Specifications
OEM Part Numbers: 69030-47060 (Front Right) 69030-47110 (Front Right, supersedes 69030-47060)
Each actuator is a self-contained unit with an integrated electric motor, gearing, and electrical connector. They operate on the vehicle's 12V DC system.
