2005-2017 Equinox, Terrain, Torrent & XL-7 Door Lock Switch Failure and Replacement Guide

Symptoms of a Failing Door Lock Switch

When a door lock switch or the master window switch assembly begins to fail, you may experience one or more of the following symptoms. Because the window and lock functions are often in the same unit, a failure in one can affect the other.

• Inoperative Locks or Windows: One or more door locks or windows may not respond when using the switch. This can affect a single door or all doors simultaneously.
• Intermittent Operation: The switches may work sometimes but not others. You might need to press a button multiple times for it to register. This can be caused by worn internal contacts or corrosion.
• One-Way Window Travel: A very common symptom is a window that will go down but not back up, or vice-versa. This points directly to worn contacts within the switch for that specific direction.
• Only the Master Switch Works: The driver's master switch may be able to operate a window, but the individual switch on that window's door does not. This often indicates a failure in the individual switch, not the master.
• Complete Failure: In some cases, none of the power window or lock switches on the master panel will work. This could be a failed master switch, a blown fuse, or a wiring issue.
• No Sound from Actuator: When you press the lock/unlock button, you should hear a click or hum from the door lock actuator. If you hear nothing, the problem is likely electrical, pointing to the switch, fuse, or wiring.

Known Issues and Vehicle-Specific Differences

Before buying a replacement switch, it's critical to understand the specific issues and variations that affect these vehicles. Ordering the wrong part is a common mistake.

Critical Wiring Failures: 2005-2009 Chevrolet Equinox & 2006-2009 Pontiac Torrent

Owners of first-generation Equinox and Torrent models frequently report failures of the door locks, windows, and even speakers. The root cause is often not the switch itself, but broken wires inside the rubber boot between the driver's door and the vehicle's body. The factory wiring harness can be too short, and years of opening and closing the door cause the wires to fatigue and break.

Compatibility Traps for 2010-2017 Equinox & Terrain

For the second-generation Equinox and its sibling, the GMC Terrain, several variations exist. You must match your replacement switch to the original equipment.

• Switch Location: On most models, the master switch is on the driver's door panel. However, some configurations may have lock switches located on the center console/dash. Visually confirm your switch location before ordering.
• Backlight Color (Equinox): Chevrolet Equinox models came with different interior lighting schemes. Verify if your original switch has RED or ICE BLUE backlighting. A replacement with the wrong color will function but will not match the rest of your interior lighting. Part number 20917598, for example, is specifically listed as having a "True Red Backlight".
• Memory Seat Option (Equinox & Terrain): Higher trim levels like the Chevrolet Equinox LTZ and Premier, and GMC Terrain models with the memory seat option (often SLT and Denali), use a different master switch than base models (L, LS, LT, SLE). The memory seat function is integrated into the switch panel, and a base model switch will not work.

Buying a Used Door Lock Switch

A used OEM switch is often a reliable and cost-effective alternative to a new part, especially when compared to cheap aftermarket versions which may have a poor button feel or fail prematurely. When buying used, follow these steps:

1. Diagnose First: For 2005-2009 Equinox and Torrent models, confirm the door jamb wiring is intact before blaming the switch. For all models, check the relevant fuses first.
2. Take a Clear Photo: Before you shop, remove your existing switch or take a high-quality picture of it. Pay close attention to the number and layout of the buttons (window controls, mirror controls, lock buttons) and the shape of the electrical connector.
3. Match Key Features: Verify compatibility based on the issues listed above. Does your vehicle have memory seats? What color is the backlighting? Answering these questions is essential.
4. Inspect the Part: When you receive the used switch, check for excessive wear on the button graphics. Ensure the plastic housing isn't cracked or brittle. Look at the electrical pins in the connector—they should be clean and free of any green or white corrosion.

Replacement Guide

Replacing the door lock switch or master window switch assembly is a straightforward DIY task for most owners. The process is very similar for the 2010-2017 Equinox and Terrain.

• Difficulty: 2 out of 5
• Estimated Time: 30-45 minutes
• Tools Needed: Trim removal tool, flat-blade screwdriver, 7mm and 8mm sockets with a ratchet.

General Steps:

1. Disconnect the Battery: As a safety precaution, disconnect the negative battery terminal.
2. Remove Trim Covers: Use a trim tool or small screwdriver to pry off the small plastic covers behind the interior door handle and inside the door pull handle.
3. Remove Screws: Remove the exposed screws. There is typically one 7mm screw behind the door handle and two 8mm screws in the door pull area.
4. Pry the Door Panel: Starting from the bottom, use a trim removal tool to carefully pry the door panel away from the door. This will release a series of plastic clips. You will hear them pop as they release.
5. Lift and Disconnect: Once all clips are loose, lift the door panel straight up and off the windowsill. Disconnect the electrical harnesses and the door handle cable from the back of the panel.
6. Swap the Switch: The faulty switch is held into the door panel with plastic tabs. Use a flat-blade screwdriver to gently pry these tabs and push the old switch out. The new switch will snap into its place.

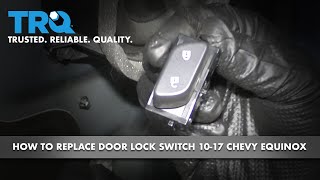

🎬 See this walkthrough for replacing the switch on 2010-2017 models.

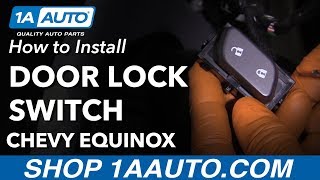

7. Reassembly: Reconnect the door handle cable and electrical connectors, then hang the door panel back on the windowsill. Align the plastic clips and press firmly around the perimeter of the panel 🎬 Watch: A step-by-step guide to removing the door panel and switch. to snap them back into place. Reinstall the screws and trim covers.

Cost Comparison

The cost for a replacement door lock switch can vary significantly based on the type of part you choose.

OEM Part Numbers

The following is a list of known OEM part numbers associated with door lock and master window switches for these vehicles. Part numbers are often superseded, so always verify fitment with the seller. This list includes, but is not limited to: 15218507, 15804394, 20838941, 20917577, 20917598, 20917599, 20945129, 22722502, 22723794, 22864836, 25808184, 25877776, 25946838, 25983673, 25983674.
