2006-2019 Ford Explorer, Expedition & F-Series Door Switch Failure: A Buyer's Guide

Symptoms of a Failing Door Lock & Window Switch

When the master switch begins to fail, it can cause a variety of frustrating symptoms. Because the switch controls multiple functions, a failure can manifest in several different ways. Here are the most common signs that your switch needs replacement:

• One or More Windows Won't Operate: You might find that the driver's window works fine, but you can't control the passenger or rear windows from the master switch.
• Intermittent Operation: The switches may work only some of the time, requiring multiple presses to get a response. This often happens as the internal electrical contacts become corroded or worn.
• Window Goes Down But Not Up: This is a classic symptom of a worn-out switch. The electrical contacts for the 'up' function wear out faster than the 'down' contacts, leaving you with a window stuck open.
• Complete Failure: In some cases, none of the window or lock functions will work from the driver's door. While this could be a blown fuse, it often points to a total failure of the master switch assembly.
• Passenger Switches Work, Master Switch Doesn't: If you can operate a window using its own door switch but not from the driver's master panel, the master switch is almost certainly the culprit.
• Door Locks Unresponsive: The power door lock button may stop working or only work intermittently, affecting all doors. You might hear a faint click, but the locks won't engage.

Diagnosing the Problem: Is It Really the Switch?

Before buying a replacement, a few simple checks can confirm the switch is the problem and not a fuse or a motor.

1. Check the Fuses First: A blown fuse is the easiest fix. Your owner's manual will show the location of the fuse box (often in the passenger footwell) and which fuses control the power windows and locks. For example, on a 2007-2014 Expedition, fuses #1, #4, and #41 in the passenger cabin fuse box are related to the power windows. If a fuse is blown, replacing it may solve the problem. If it blows again, you have a short circuit that needs further diagnosis.
2. Listen for a Sound: With the key on, press the switch for the non-working window or lock. Listen closely at that door. If you hear a faint click or humming sound, the switch is likely sending power, and the problem is with the window motor or door lock actuator itself. If you hear complete silence, the problem is more likely the switch or wiring.
3. Use the Other Switches: Test the window from its own switch on the passenger or rear door. If it works there, the problem is isolated to the master switch on the driver's door.

Buying a Used Door Lock Switch: A Buyer's Checklist

Purchasing a used OEM switch is often a smart choice, providing factory quality at a significant discount compared to a new dealer part. However, because these switches are tied to specific vehicle options, careful verification is essential. A cheap new aftermarket switch may not have the same durability or button feel as an OEM part.

The Critical Compatibility Check

This is the most important step. An incorrect switch will not work properly. Before you buy, you must match the replacement switch to your vehicle's exact feature set. Look at your original switch and verify the presence of buttons for:

• Auto Up/Down Windows: Does your original switch have an 'A' symbol or a two-stage click for one-touch operation on the front windows? Some switches only support auto-down for the driver's window.
• Power Folding Mirrors: If your vehicle has power-folding mirrors, the switch must have the corresponding button.
• Memory Seats/Mirrors: Vehicles with the memory package have '1' and '2' buttons integrated into the switch bezel. A non-memory switch will not work correctly.
• Blind Spot Alert: Some higher trims have indicators for the blind spot monitoring system built into the mirror control section.

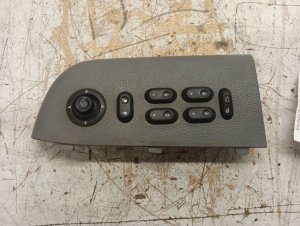

What to Inspect on a Used Switch

• Button Action: The buttons should click cleanly without feeling sticky or 'muddy'.
• Connectors: Check the electrical connection ports on the back for any signs of corrosion, moisture damage, or bent pins.
• No Physical Damage: Ensure the plastic housing and mounting tabs are not cracked or broken.
• Graphics: Check that the white graphics on the buttons are not excessively worn, which can indicate very high usage.

Cost of a Replacement Door Lock Switch

The price can vary significantly depending on the source and type of part. Here is a general cost breakdown:

Installation Guide & Vehicle-Specific Notes

Installation difficulty varies by model. On some, you can simply pry the switch assembly out, while others require removing the entire door panel. Always disconnect the negative battery terminal before starting work to prevent electrical shorts.

Difficulty Rating: 1-2 out of 5.

2006-2010 Ford Explorer, Explorer Sport Trac & Mercury Mountaineer

On these models, the replacement is typically easier. You can often use a plastic trim tool to carefully pry the entire master switch bezel directly out of the door panel without removing the whole panel. Once it's popped out, disconnect the three electrical harnesses, unclip the old switch from the bezel, snap the new one in, and reconnect everything.

2007-2014 Ford Expedition

For the Expedition, the entire door panel must be removed to access the switch. This involves removing several screws (behind the door handle, in the door pull cup, and on the bottom edge of the panel), prying the panel away from the door to release the clips, and then lifting it off. Once the panel is off, the switch can be unclipped from the back.

2008-2010 Ford F-250, F-350, F-450 Super Duty

Replacement on these trucks is similar to the Expedition, requiring the removal of the door panel to access the switch mounting clips and electrical connectors.

2013-2019 Ford Police Interceptor Utility: Rear Window Switch Note

A very common issue with decommissioned Police Interceptor Utilities is that the rear window switches do not work. This is by design for police use. In most cases, the wiring is present but simply unplugged. To re-enable the rear windows, you must locate a disconnected single-wire plug (often purple and white) under the driver's side floor trim or carpet, near the B-pillar or the driver's seat mounting bolts, and plug it back in. This simple connection restores power to the rear window switches.
