2010-2018 Mazda 3 Master Window Switch: Fixing Auto Window Failures & Part Number Guide

Is Your Window Switch Actually Broken? Quick Checks

Before buying a replacement, perform these two simple checks. They can often resolve window issues without needing any parts or tools.

1. Check the Window Lock Button

It's the most common oversight. The window lock button on the master switch disables all passenger window controls. If this button is accidentally pressed or stuck, it will seem like the passenger window switches or the master switch's control over them has failed. Press it once to ensure it's in the unlocked position and test the windows again.

2. Perform a Power Window Reset

If the 'Auto' up/down function stops working for one or more windows, the system likely needs to be re-initialized. This is very common after the battery has been disconnected.

1. Turn the ignition to the 'ON' position (engine can be off).
2. For each affected window, press the switch down and hold it for 2-5 seconds after the window is fully open.
3. Pull the switch up and hold it for 2-5 seconds after the window is fully closed. You may hear a faint click.
4. Release the switch. The 'Auto' function should now be restored for that window.

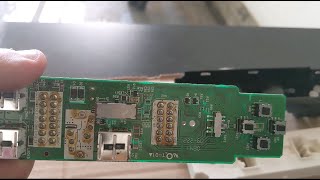

🎬 Watch this quick video to see the reset procedure in action.

Symptoms of a Failing Mazda 3 Master Window Switch

If the quick checks didn't solve your problem, your switch assembly may be failing. Here are the most common symptoms:

• One or More Windows Don't Respond: You can't operate a specific window from the driver's master switch, but it still works using its own switch on the passenger or rear door. This almost always isolates the fault to the master switch.
• Intermittent or Flaky Operation: You have to press a button multiple times, or jiggle it, to get a window to move. The switch might work to roll a window down but not up, or vice versa. This often points to worn or corroded internal contacts.
• Total Failure: None of the power windows work from any switch in the car. While this could be a fuse, if the fuse is good, the master switch is the next most likely culprit as it's the hub for the entire system.
• Door Locks or Mirrors Inoperative: Since the door lock and power mirror controls are integrated, their failure can also point to a bad master switch assembly.
• Physical Damage: The plastic buttons can become brittle over time and break or fall into the door panel with a hard press.

Known Issues and Recalls

There are no official NHTSA recalls for the master window switch on the 2010-2018 Mazda 3. However, it's important not to confuse a faulty switch with a faulty window motor or regulator, which can present similar symptoms.

Mazda has issued Technical Service Bulletins (TSBs) for other vehicles regarding noisy window operation or windows falling into the door, which were caused by issues with the window motor or regulator assembly, not the switch. If you hear grinding noises or the window moves very slowly or crookedly, the problem is more likely the motor or regulator inside the door, not the switch on the armrest.

Buying a Used 2010-2018 Mazda 3 Window Switch

A used OEM switch is often a smart choice, providing factory quality and fit at a significant discount compared to a new dealer part. Here’s what to look for when buying a recycled master switch.

1. Verify the Part Number

This is the most critical step. Due to the generational change, you must get the right switch.

• For 2010-2013 Mazda 3: Look for part number BBM2-66-350B. This part supersedes the older BBM2-66-350A.
• For 2014-2018 Mazda 3: Look for part number BNN5-66-350 or BHN1-66-350.

2. Physical Inspection

• Check the Buttons: Press every button (windows, lock, mirror). They should have a solid, tactile click and return to their neutral position smoothly. Avoid switches with mushy or sticky buttons.
• Inspect Graphics: Look at the white graphics on the buttons. Heavily worn or faded graphics indicate high usage and potential for internal wear.
• Examine the Housing: Check for cracks in the plastic housing, especially around the mounting clips. Ensure the electrical connector ports are clean and free of corrosion or bent pins.

3. Why Used OEM is Often Better Than New Aftermarket

While cheap new aftermarket switches are available, they often come with trade-offs. Used OEM switches were built to Mazda's original quality standards. This means the plastics are more durable, the fit in the door panel is precise, and the internal electronics are more robust. Aftermarket versions can suffer from buttons that feel cheap, don't illuminate correctly, or fail prematurely.

Replacement Guide

Replacing the master window switch is a straightforward DIY job that typically takes less than 15 minutes.

• Difficulty: 1/5 (Beginner)
• Estimated Time: 0.25 hours
• Tools Needed: Plastic trim removal tool or small flathead screwdriver.

Step-by-Step Instructions

1. Using a plastic trim tool, carefully pry up the switch assembly from the door panel. It is held in by clips. Start from one edge and work your way around.
2. Once the assembly is loose, lift it out and disconnect the electrical connectors on the underside. They have small tabs that need to be pressed to release the plugs.
3. The switch itself is often clipped into the surrounding trim bezel. You may need to release several small plastic tabs to separate the old switch from the bezel.
4. Snap the new switch into the bezel, ensuring all clips are secure.
5. Reconnect the electrical plugs to the new switch. You should hear them click into place.
6. Seat the switch assembly back into the door panel, pressing down firmly until it snaps flush.
🎬 Watch a step-by-step walkthrough for replacing the 2014-2018 switch assembly.
7. Perform the power window reset procedure described above to restore auto up/down functionality.
