Toyota & Lexus Master Window Switch Failures (1997-2014): Sticky Buttons, Fire Risk & Replacement Guide

Symptoms of a Failing Master Window Switch

A failing master window switch can cause a variety of frustrating issues. Because it controls multiple functions, symptoms can sometimes be confusing. Here are the most common signs that your switch is going bad:

• One or More Windows Won't Operate: The most obvious symptom is when a window stops responding to the switch. You might find that the driver's window works, but none of the passenger windows do, or vice-versa. Sometimes, a passenger window will work with its own switch but not from the master switch, pointing directly to a fault in the master unit.
• Intermittent Operation: You might have to press a button multiple times to get a window to move. It may work one day and not the next. This often indicates corrosion or wear inside the switch contacts.
• All Windows Stop Working: If all power windows stop functioning at once, the master switch is a primary suspect, along with a blown fuse or a bad relay.
• Door Locks Malfunction: Since the power door lock button is integrated, a failing switch can prevent you from locking or unlocking the doors from the driver's side.
• Sticky or "Notchy" Buttons: The buttons may feel stiff, sticky, or fail to spring back into position. This was a key symptom leading to a major safety recall, as it indicates a lack of internal lubrication.
• Smoke or a Burning Smell: In severe cases, the switch can short-circuit internally, causing it to overheat, melt, and produce smoke. This is a serious fire hazard and requires immediate attention.

Vehicle-Specific Known Issues, Recalls, and TSBs

Many of the vehicles covered here were part of one of the largest recalls in Toyota's history. It's crucial to know if your vehicle was affected.

Major Safety Recall: Power Window Switch Fire Hazard

Toyota issued a massive safety recall (NHTSA Campaign 15V-689, expanding on an earlier recall 12V-491) for millions of vehicles worldwide, including many listed here, due to a fire risk from the master window switch. The problem was an inconsistent application of grease on the switch's internal contacts during manufacturing. This could lead to debris and moisture causing a short circuit, which could make the switch overheat, melt, and potentially cause a fire.

Affected models in this guide include:

• 2007-2009 Toyota Camry & Camry Hybrid
• 2009-2011 Toyota Corolla
• 2006-2011 Toyota RAV4 (some years overlap with the 4Runner platform)
• 2008-2009 Scion xB
🎬 Watch: Detailed breakdown of the Toyota and Scion safety recall

The remedy involves dealers inspecting the switch, applying a special heat-resistant fluorine grease, and replacing the circuit board if necessary, all free of charge. Even if you are not the original owner, you can check your vehicle's VIN on the NHTSA or Toyota recall websites to see if the repair was performed.

Important Compatibility Warnings

This master switch has several very specific fitments. Ordering the wrong part is a common mistake. Always verify these details before purchasing:

• Lexus IS250 & IS350 (2006-2009): This switch is ONLY for models that do NOT have the memory seat feature. The memory seat system is integrated with the switch, and this part will not work.
• Toyota Prius (2004-2014): Check the 7th and 8th digits of your VIN. This part is compatible with VINs starting with DU (standard Prius), DP (Prius Plug-in), or EU (Prius V).
• Toyota Prius V (2012-2013): This switch fits the Prius V submodel specifically for these years.
• Toyota Camry (2002-2006): For LE and SE models. On 2005-2006 models, it only fits vehicles built in North America.
• Toyota Camry XLE (2005): This is a highly specific fitment. It ONLY fits 2005 XLE models built in North America with a production date up to and including September 2004. It will not fit models built from October 2004 onwards or any models built in Japan.

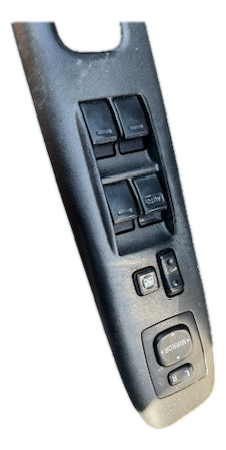

Buying a Used Master Window Switch: What to Check

A used OEM (Original Equipment Manufacturer) switch is often a great value, providing factory quality for a fraction of the price of a new one. However, you need to inspect it carefully.

1. Match the Part Number Exactly: This is the most important step. Flip the switch over and compare the OEM part number on the housing to your original part. While many switches look identical, internal electronics can differ.
2. Inspect the Buttons: Press each button individually. They should have a positive, crisp click and return to their neutral position smoothly. Avoid any switches with buttons that feel mushy, sticky, or are physically broken.
3. Check for Physical Damage: Look for cracks in the plastic housing, especially around the screw holes and mounting tabs. Check the electrical connector for any bent, corroded, or broken pins.
4. Verify the 'Auto' Function: Look at the driver's window button. Does it say 'Auto' with an up and down arrow, or just 'Auto' with a down arrow? This must match your vehicle's original function. Using the wrong one can cause the auto up/down feature to fail.
5. Why Used OEM is a Smart Choice: Cheap aftermarket switches are widely available, but they often have issues. The backlighting may be a different color or brightness than your other interior lights, the button feel can be poor, and they are known to fail prematurely. A quality used OEM part has already proven its durability and will match your car's interior perfectly.

Installation Guide

Replacing the master window switch is a straightforward DIY job for most of the vehicles covered. The process is very similar across models.

1. Pry Up the Switch Panel: Using a plastic trim removal tool (to avoid scratching), carefully pry up the front or rear edge of the panel containing the master switch.
2. Disconnect the Connectors: Once the panel is loose, you will see one or more electrical connectors attached to the bottom of the switch. Press the release tab on each connector and pull it straight out. Some larger connectors may have a sliding lock tab that needs to be released first.
3. Remove the Switch from the Panel: The switch is typically held into the trim panel by three Phillips head screws. Remove these screws and the old switch will come free.
4. Install the New Switch: Place the replacement switch into the panel and secure it with the three screws. Reconnect the electrical connectors, making sure they click securely into place.

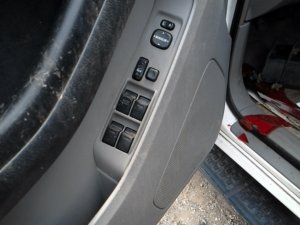

5. Test and Reinstall: Before snapping the panel back into the door, turn the ignition on and test every button (all windows, locks, and the window lock). Once confirmed, 🎬 See this walkthrough for fixing a non-responsive 4Runner master switch press the panel firmly back into the armrest until it clicks into place.

Cost of Replacement

(Note: Prices are estimates and can vary based on supplier, location, and specific part number. New OEM prices sourced from dealer sites and online OEM retailers. Labor costs are based on an estimated 0.5-0.75 hours of work.)
