2006-2010 Jeep Commander Door Mirror: Failure Symptoms and Replacement Guide

Symptoms of a Failing Door Mirror

Problems with your Jeep Commander's door mirrors can range from minor annoyances to serious safety hazards. Failures can be either mechanical or electrical. Here are the most common signs that your door mirror needs attention:

1. Cracked or Broken Mirror Glass

This is the most obvious sign of failure. Any crack, chip, or break in the mirror glass can distort your view, creating dangerous blind spots and making it difficult to judge distances. Even small hairline cracks can worsen over time due to vibrations and temperature changes, eventually leading to the glass shattering.

2. Power Adjustment Failure

If you can no longer adjust the mirror using the control switch inside the vehicle, the problem is likely electrical. The internal adjustment motor may have failed, or there could be an issue with the switch, wiring, or a fuse. You might hear grinding or whirring sounds when you try to adjust it, which often points to a failing motor. In some cases, the mirror might move jerkily or get stuck in one position.

3. Heated Mirror Malfunction

Many Commander mirrors are equipped with a heating element to defrost ice and clear condensation. If this feature stops working, your visibility can be severely limited in cold or wet weather. This is a significant safety concern. The failure is typically within the heating element itself or the wiring that supplies it with power.

4. Loose or Vibrating Mirror Housing

The entire mirror assembly should be securely mounted to the door. If the housing is loose, cracked, or vibrates excessively while driving, it can be distracting and make it hard to get a clear view. This is often the result of a minor impact or simple wear and tear over time. A damaged housing can also allow water to enter, leading to electrical problems.

Known Issues, TSBs, and Recalls

While there are no specific recalls for the door mirror assembly itself on the 2006-2010 Jeep Commander, it's important to be aware of related electrical system recalls for this vehicle generation. Issues with the Wireless Ignition Node (WIN) module or the powertrain control module could potentially affect various electrical components, though a direct link to mirror failure is not commonly reported. Some other vehicle models have experienced issues where water intrusion into the mirror wiring harness causes corrosion and a potential fire risk, but this has not been specifically recalled for the Commander.

Buying a Used Door Mirror

Purchasing a used OEM (Original Equipment Manufacturer) door mirror is an excellent way to save money while getting a quality part. However, there are a few key things to inspect to ensure you're getting a good component.

What to Check Before You Buy:

• Verify Features: This is the most important step. Confirm whether your Commander has heated mirrors and the memory seat/mirror option. The electrical connector will be different between memory and non-memory units. Ask the seller to confirm the features of the donor vehicle.
• Inspect the Glass: Check the mirror glass for any cracks, chips, or deep scratches. Also, look for signs of fading or discoloration on the reflective surface, which can impair visibility, especially at night.
• Check the Housing: Examine the plastic housing for any cracks, stress marks, or broken mounting tabs. Pay close attention to the area where the mirror mounts to the door, as this is a common point of failure.
• Test the Swivel/Folding Mechanism: If it's a manual folding mirror, gently fold and unfold it to ensure the mechanism is smooth and holds its position firmly.
• Examine the Electrical Connector: Look at the pins inside the electrical connector. They should be straight and free of any green or white corrosion, which would indicate water damage.

Cost Comparison

The price of a replacement door mirror can vary significantly based on the source and features.

Replacement Guide

Replacing the door mirror on a 2006-2010 Jeep Commander is a straightforward job for a DIYer with basic tools. 🎬 See this full mirror replacement walkthrough The process involves removing the interior door panel to access the mirror's mounting bolts and electrical connector.

Difficulty: 2 out of 5

Estimated Time: 0.5 - 1 hour

Required Tools:

• Phillips head screwdriver
• 8mm wrench or socket
• Plastic trim removal tool

Step-by-Step Instructions:

1. Roll Down the Window: Before you begin, roll the window all the way down. This will make it easier to remove and reinstall the door panel.
2. Remove Door Panel Screws: There are typically three Phillips head screws holding the door panel in place. One is located behind a small cover in the door pull handle, another behind the interior door latch handle, and a third near the front hinge area of the panel.
3. Pry Off the Door Panel: Use a plastic trim removal tool to carefully pry around the bottom and sides of the door panel, releasing the plastic clips that hold it to the door frame.
4. Lift and Disconnect: Once all the clips are loose, lift the panel straight up to unhook it from the top of the door near the window. Let it hang gently and disconnect the electrical connectors for the power window/lock switch and the mirror itself.
5. Remove the Old Mirror: Peel back the foam or plastic weather shield to access the three 8mm nuts that secure the mirror to the door. While holding the mirror from the outside so it doesn't fall, remove the nuts. Carefully guide the mirror's wiring harness out of the door.

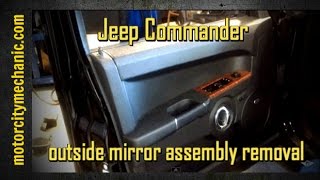

🎬 Watch: Removing the mirror from the door frame
6. Install the New Mirror: Feed the wiring harness of the new mirror through the opening in the door. Align the mounting studs and secure the mirror with the three 8mm nuts. Be careful not to overtighten them, as the housing is plastic.
7. Reconnect and Test: Reconnect the mirror's electrical plug. Before reassembling the door panel, it's a good idea to turn the key and test the power adjustment and heated functions to ensure the new mirror works correctly.
8. Reassemble: Reconnect all door panel wiring, then hang the panel back on the top of the door frame. Press firmly around the edges to re-engage the plastic clips. Finally, reinstall the three screws you removed earlier.
