2006-2010 Mazda 5 Door Mirror: Failure Symptoms and Replacement Guide
This guide covers common failures, how to buy the correct used mirror, and a step-by-step replacement for your 2006-2010 Mazda 5.
- The standard mirror for 2006-2010 Mazda 5 models is power-adjustable but NOT heated; verify this before buying a replacement.
- Replacement is a simple DIY job that does not require removing the main door panel and can be done in under an hour.
- When buying a used mirror, check for cracks in the housing and mounting points, and ensure the electrical connector is undamaged.
- Be prepared for the color of a used or aftermarket mirror not to match your car; the outer cap may need to be painted.
Symptoms of a Failing Door Mirror
A door mirror can fail in several ways, ranging from minor annoyances to serious safety hazards. Here are the most common symptoms for the 2006-2010 Mazda 5.
Power Adjustment Fails or Becomes Erratic
The most common failure is related to the power adjustment feature. You might notice that the mirror doesn't respond when you use the control switch, or it moves slowly, gets stuck, or moves in a jerky, inconsistent way. This usually points to a problem with the internal motor, a loose electrical connection, or a faulty control switch on the driver's door. Sometimes, you might hear the motor trying to work, which suggests the motor itself has a mechanical failure rather than an electrical one. 🎬 Watch this video to see how to repair the mirror motor. If there's no sound at all, the problem is more likely electrical, such as a blown fuse, bad wiring, or a dead motor.
Cracked or Broken Mirror Glass
Physical damage is an obvious and dangerous symptom. A cracked, chipped, or completely broken mirror glass severely distorts your view, creating significant blind spots and increasing the risk of an accident. Even a small crack can be a hazard as it can worsen with temperature changes and road vibrations.
Damaged Mirror Housing
The mirror housing is the plastic shell that holds the glass and motor. It's often the first point of contact in a sideswipe or parking lot incident. A cracked or broken housing can allow water and dirt to enter, damaging the internal motor and wiring. It can also cause the entire mirror assembly to become loose and vibrate excessively while driving.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of early 2026, there are no specific recalls or technical service bulletins from the National Highway Traffic Safety Administration (NHTSA) directly related to the door mirrors on the 2006-2010 Mazda 5. While there are recalls for this vehicle generation for issues like power steering and fuel pumps, the mirrors themselves have not been subject to a safety recall. Any problems with the mirrors are typically due to age, wear, or physical damage rather than a widespread manufacturing defect.
Important: The standard mirror for the 2006-2010 Mazda 5 is a power-adjustable, non-heated mirror. Some aftermarket options may include a heating element, but this was not a standard feature from the factory. Before ordering a replacement, verify that your original mirror is not heated to ensure compatibility.
Buyer's Guide: What to Check When Buying a Used 2006-2010 Mazda 5 Door Mirror
Buying a used OEM mirror is often a smart choice, providing factory fit and quality at a lower price than a new dealer part. Here’s what to inspect to ensure you get a good part.
1. Inspect the Housing and Mounting Points
Carefully check the entire plastic housing for cracks, especially around the base where it mounts to the door. Look for deep scuffs or stress marks that could indicate hidden damage. Most importantly, inspect the three mounting studs and the surrounding plastic; if any of these are cracked or broken, the mirror will not mount securely.
2. Check the Mirror Glass
Examine the glass for any cracks, chips, or deep scratches. Also, look for signs of "browning" or delamination around the edges, which is a sign of age and moisture getting behind the reflective coating.
3. Verify the Electrical Connector
Ensure the electrical connector and a few inches of its wiring are intact. The connector pins should be clean, straight, and free of corrosion. A damaged connector will prevent the power adjustment from working and is difficult to repair properly.
4. Confirm the Color and Finish
Mazda 5 door mirrors often came with a paint-to-match cover. A used mirror will likely be the color of the donor vehicle. Be prepared to either accept the color or have the outer shell (the "cap") repainted to match your vehicle. Some base models may have had simple black plastic mirrors, which are easier to match.
Cost Comparison: New vs. Used vs. Aftermarket
Prices can vary based on supplier and condition. Here is a general cost breakdown to help you decide:
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $150 - $250+ | Highest cost, but guaranteed fit and quality. May come unpainted. |
| New Aftermarket | $30 - $90 | More affordable, but quality can be inconsistent. Fit and finish may not be perfect. |
| Used OEM | $50 - $125 | Good balance of cost and quality. Ensure you inspect it carefully using the guide above. |
| Shop Labor | $75 - $150 | Replacement is straightforward and typically takes less than an hour. |
Installation Guide Overview
Replacing the door mirror on a 2006-2010 Mazda 5 is a relatively simple job that most DIYers can complete in under an hour. A key advantage is that you do not need to remove the entire interior door panel.
Tools Needed:
- Trim removal tool or flathead screwdriver (use tape to protect paint)
- 10mm socket with ratchet
Step-by-Step Process:
- Remove the Interior Trim Piece: Open the door. The mirror is attached behind a small, triangular plastic trim piece located on the inside of the door, opposite the mirror. Carefully pry this piece off using a trim removal tool.
- Disconnect the Wiring: Once the trim is off, you will see the mirror's electrical connector. Press the release tab and unplug the harness.
- Unbolt the Mirror: There are three 10mm nuts or bolts holding the mirror assembly to the door. While holding the mirror from the outside so it doesn't fall, remove these three fasteners.
- Install the New Mirror: Position the new mirror, ensuring the mounting studs go through the holes in the door frame. Hand-tighten the three fasteners to secure it.
- Reconnect and Test: Plug in the electrical connector. Before putting the trim piece back on, turn the ignition on and test the power adjustment controls to ensure the new mirror works correctly in all directions.
- Reinstall Trim: Snap the triangular trim piece back into place.
Pro Tip: When removing the old mirror, hold it firmly from the outside as you remove the last nut. This will prevent it from falling and potentially scratching your door paint or shattering on the ground.
🎬 Watch a mechanic demonstrate how to remove the mirror assembly.Frequently Asked Questions (FAQ)
Do I need to paint the replacement mirror?
It depends on the part you buy. Used OEM mirrors will be the color of the car they came from. New aftermarket mirrors often come in black plastic or are primed for painting. If the color doesn't match, you can have a body shop paint the mirror's outer cap to match your vehicle's paint code.
Is it difficult to replace just the mirror glass?
Replacing only the glass is possible and cheaper if the housing and motor are still good. The glass is typically held on by clips. You would carefully pry the old, broken glass off and snap the new one into place. Some aftermarket glass replacements come with an adhesive backing.
🎬 See this quick walkthrough on how to replace mirror glass.My mirror moves, but it's shaky or vibrates. What's the cause?
If the entire housing vibrates, it's likely that the mounting bolts are loose. If only the glass vibrates, the internal support plate or the glass itself may not be properly secured to the motor assembly. While a TSB for vibrating mirror glass exists for later model Mazda CX-5s, this is not a documented common issue for the 2006-2010 Mazda 5.
Can I upgrade to a mirror with heating or a turn signal?
Upgrading is not a simple plug-and-play process. The vehicle's wiring harness is not set up to support features like heat or integrated turn signals if they weren't installed at the factory. While aftermarket mirrors with these features exist, making them work would require custom wiring and potentially new switches or control modules.
Part Numbers and Specifications
| Part | OEM Part Number | Notes |
|---|---|---|

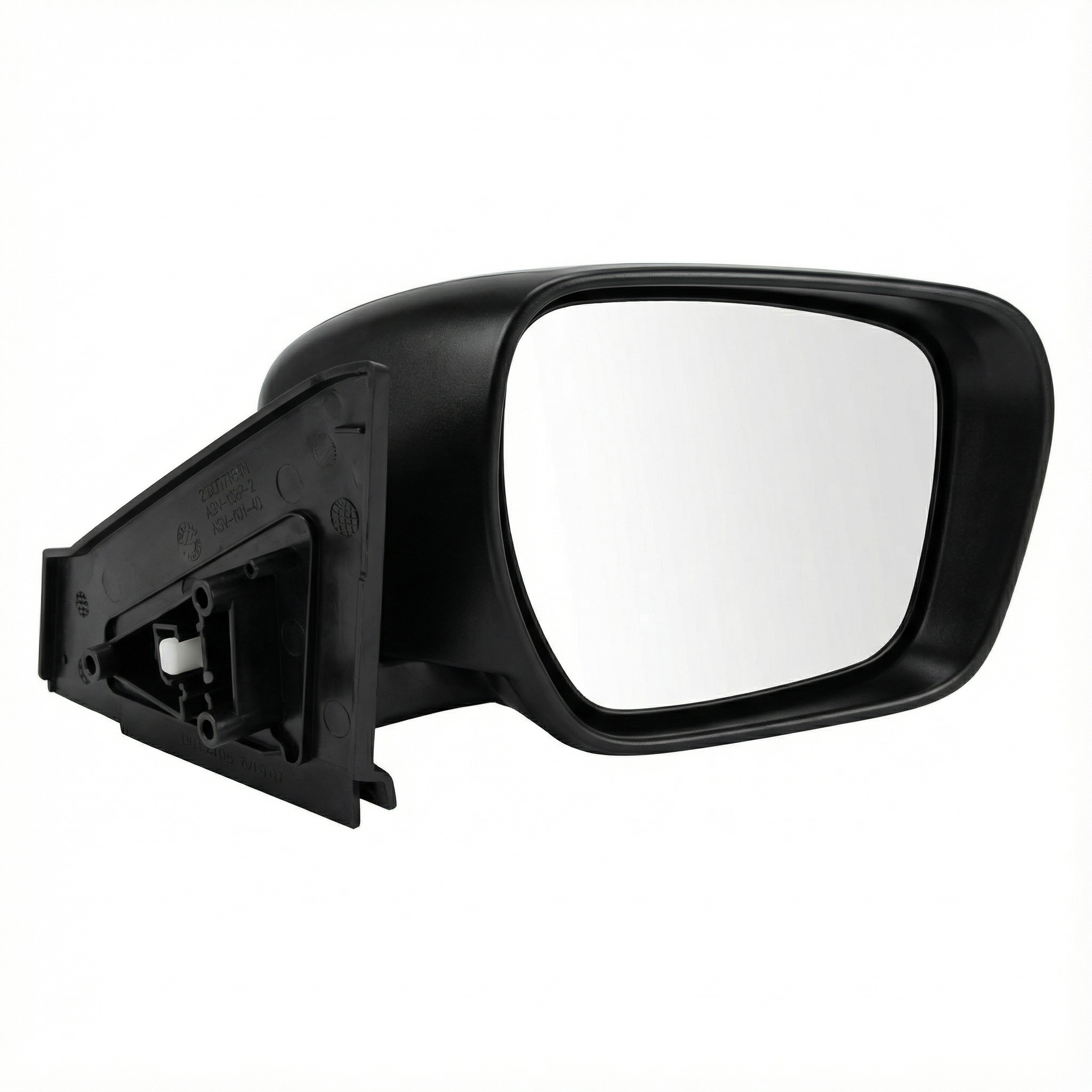

| Passenger Side Mirror Assembly | CC43-69-120D | Power, Non-Heated, Paint-to-Match |
| Driver Side Mirror Assembly | CC43-69-180 (and variants) | Power, Non-Heated, Paint-to-Match |
Helpful Videos
Technical Specifications
OEM Part Numbers: CC4369120D
Power-adjustable, non-heated, manual-folding.
