2014-2025 Toyota Corolla Door Mirror: Decoding Heat, BSM, and Turn Signals

Variant and Generation Differences

The 2014-2025 Toyota Corolla spans two distinct generations, and their door mirrors are not interchangeable. It is crucial to identify your vehicle's generation and specific trim level features before purchasing a replacement.

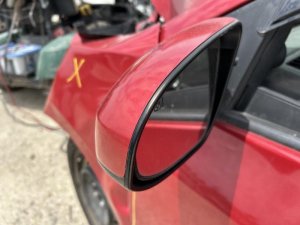

11th Generation (2014-2019 Sedan)

Mirrors for this generation came in several variations:

• L Trim: Typically equipped with basic power-adjustable, non-heated mirrors.
• LE and LE Eco Trims: Often added heated mirrors as a standard feature.
• SE, XLE, and XSE Trims: These higher trims could have heated mirrors, and some models included integrated turn signal indicators. Blind Spot Monitoring (BSM) was less common on these earlier models but was available on higher trims.

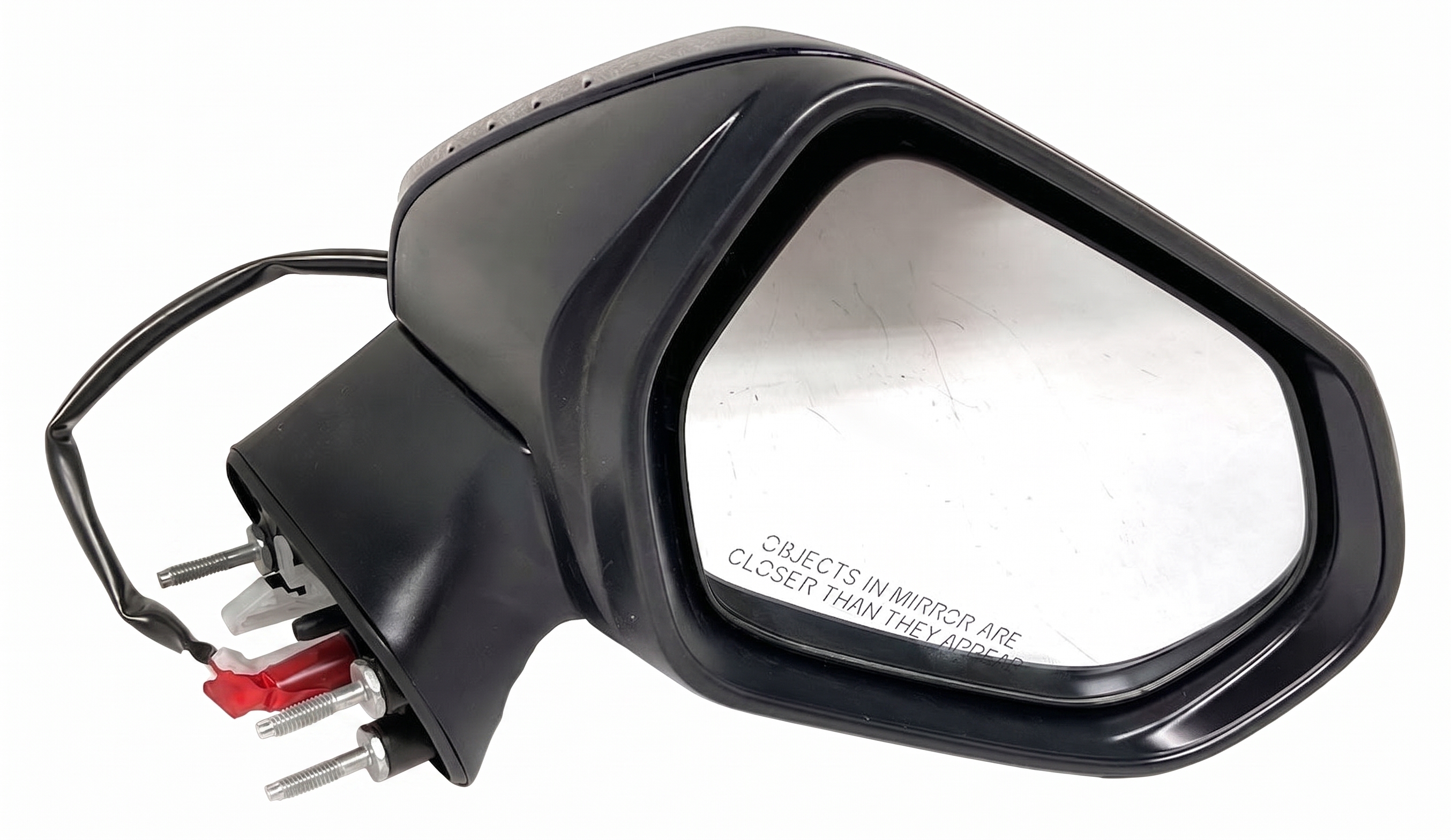

12th Generation (2020-2025 Sedan, 2019-2025 Hatchback)

The 12th generation saw a wider adoption of advanced features:

• L and LE Trims: Base models often have power mirrors, with heating becoming standard on the LE trim.
• SE Trim: Often includes heated mirrors with integrated turn signal indicators.
• XLE and XSE Trims: These trims typically come standard with heated mirrors that include both turn signal indicators and Blind Spot Monitoring (BSM) with Rear Cross-Traffic Alert.

Symptoms of Failure

A failing door mirror can present several issues, ranging from minor annoyances to significant safety hazards.

• Cracked or Broken Glass: The most obvious sign of failure is physical damage to the mirror glass, which can distort your view and create dangerous blind spots.
• Power Adjustment Failure: If you cannot adjust the mirror using the interior controls, the internal electric motor or the control switch has likely failed. You may hear a grinding noise or no sound at all when attempting to adjust it.
• Heating Element Malfunction: On models with heated mirrors, a failure of the heating element will result in the mirror not clearing frost, ice, or fog. This is often due to a break in the electrical grid on the back of the glass.
• Loose or Vibrating Mirror: The entire mirror housing may become loose or vibrate excessively while driving. This can be caused by damage to the internal mounting points or a loose assembly from a previous impact.
• Malfunctioning Turn Signal or BSM Light: If the integrated LED turn signal stops flashing or the Blind Spot Monitor warning light in the mirror fails to illuminate, it indicates an electrical problem within the mirror assembly. This can also trigger a warning light on the dashboard.

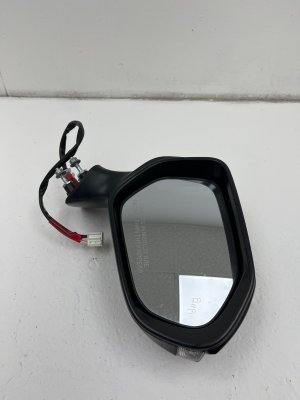

Buying a Used Door Mirror for a 2014-2025 Corolla

Purchasing a used OEM door mirror is an excellent way to save money while retaining factory quality and fit. However, due to the many variations, careful inspection and verification are key.

Step 1: Identify Your Exact Mirror Features

Before you start shopping, you must know exactly what features your original mirror has. Check for the following:

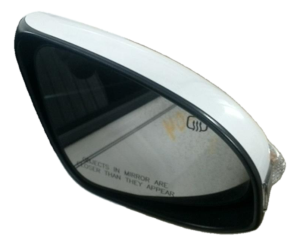

• Heated Glass: Look for a small icon of a rectangle with wavy arrows on the mirror glass itself. This indicates it is heated.

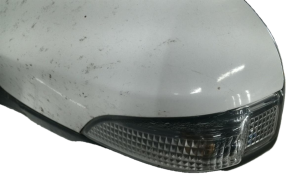

• Turn Signal Indicator: Check for a plastic strip, usually on the outer edge of the mirror housing, that illuminates when the turn signal is active.

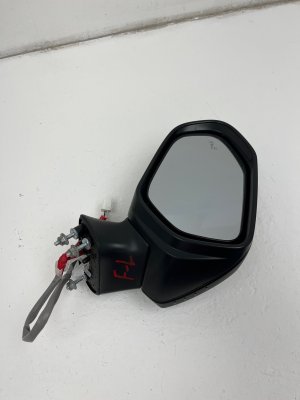

• Blind Spot Monitor (BSM): Look for a small icon of two cars side-by-side on the outer corner of the mirror glass. This icon illuminates when a vehicle is in your blind spot.

Step 2: Physical Inspection of the Used Part

When you have the used mirror in hand, inspect it carefully:

• Glass Condition: Check for any cracks, deep scratches, or discoloration of the reflective coating.
• Housing and Cover: Inspect the main housing and the painted outer cover (sometimes called a skull cap) for cracks, deep gouges, or broken mounting tabs. Many Corolla mirrors are "paint-to-match," so finding one in the correct color can save you a trip to the body shop.
• Electrical Connector: Look at the electrical connector and its pins. Ensure the pins are straight, clean, and free of corrosion. The number of pins in the connector is a good clue to the mirror's features; more pins usually mean more features like heat and BSM.
• Mounting Points: Verify that the three mounting studs are intact 🎬 Watch a full walkthrough of a passenger side mirror assembly replacement. and the threads are not stripped.

Replacement Guide

Replacing the door mirror on a 2014-2025 Corolla is a straightforward DIY project. The process is very similar for both the 11th and 12th generations.

1. Remove the Interior Trim: The most involved step is removing the interior door panel. This typically involves prying off a small triangular cover (the sail panel) in the upper corner of the door, removing screws behind the door handle and in the armrest area, and then using a trim tool to release the clips around the perimeter of the panel.
2. Disconnect the Wiring: Once the panel is loose, you can access the mirror's electrical connector. Press the locking tab and carefully unplug the harness.
3. Unbolt the Old Mirror: The mirror is held in place by three 10mm nuts. While supporting the mirror from the outside with one hand, remove these three nuts.
4. Install the New Mirror: Feed the new mirror's wiring harness through the door and align the three mounting studs with the holes. Hand-tighten the nuts, then snug them down with a ratchet. Be careful not to overtighten, as you are tightening metal nuts onto plastic.
5. Reconnect and Test: Plug in the new mirror's electrical connector. Before reassembling the door panel, turn the car's ignition on and test all functions: power adjustment, heater, turn signal, and BSM (if equipped).
6. Reassemble: Reinstall the door panel by aligning the clips and pressing it firmly into place. Reinstall all screws and trim pieces.
